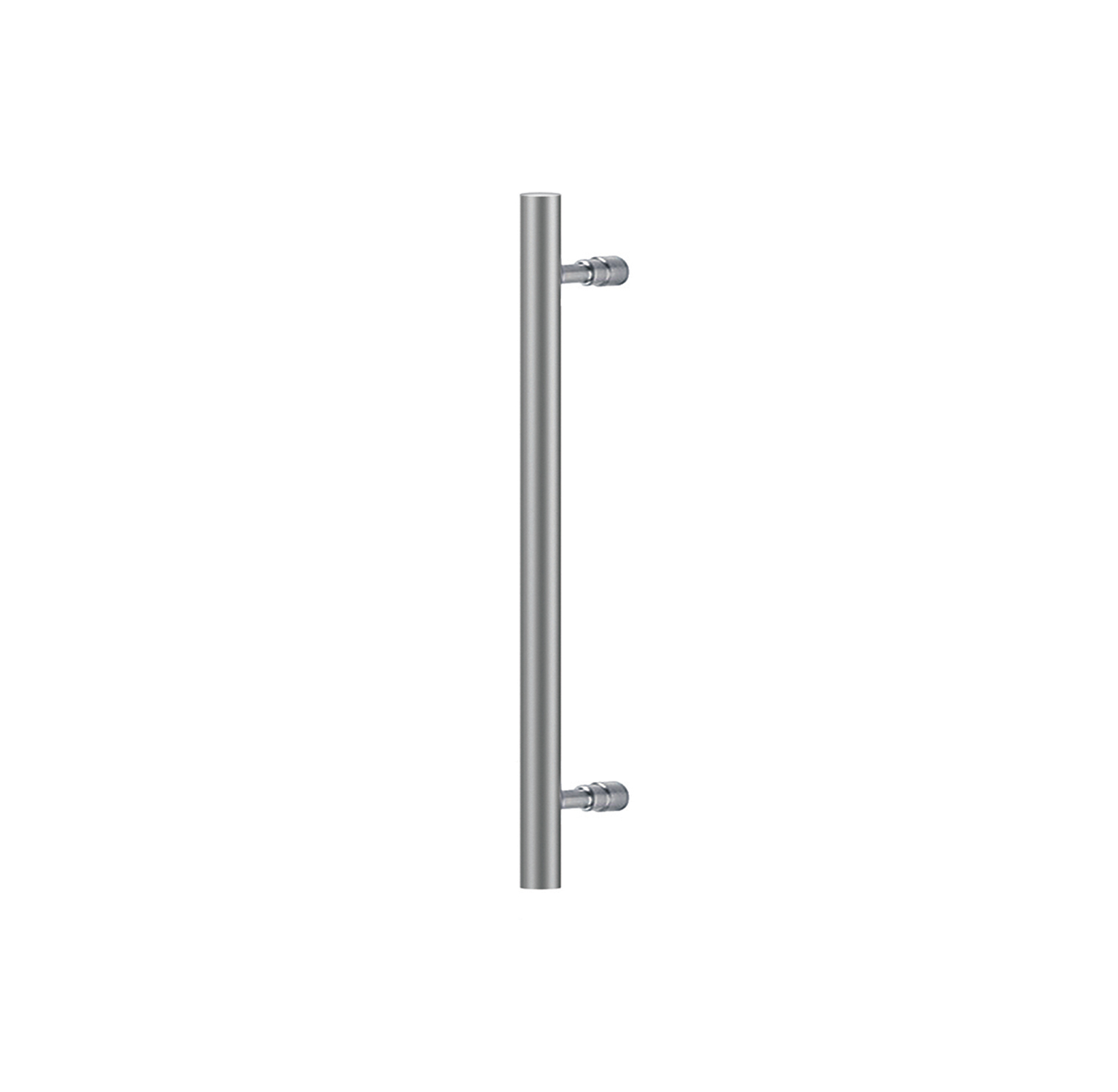

ABH AB2150-72 Straight Pull, Double Stepped Standoffs, 1" Diameter, 72"-1", Bright BrassThe ABH AB2150-72 Straight Pull, Double Stepped Standoffs are an exceptional choice for architects, contractors, and facility managers seeking a blend of functionality and architectural elegance. With a robust 1" diameter and a stylish bright brass finish (US3), these standoffs provide an attractive and durable solution for mounting doors in a variety of commercial settings.
Designed with a double stepped standoff configuration, this model enhances architectural detailing while ensuring a secure grip on doors. The flat end construction contributes to a clean aesthetic, making it suitable for glass, wood, or metal doors ranging from ½" to 2¼" in thickness. The standard length of 72" can be tailored to fit specific requirements, with additional lengths available from 12" to 96". For installations exceeding 72", a mid post is included to enhance support and stability.
Compliance with industry standards ensures reliability, while the stainless steel construction offers excellent resistance to wear and corrosion. Mounting options include back-to-back (BTB) and single side mounting (S), accommodating various installation preferences. Elevate your project with the ABH AB2150-72, where quality meets sophisticated design.
Straight Pull, Double Stepped Standoffs, Flat Ends, 1" Diameter, 72"-1", Bright Brass
Straight pull with double stepped standoff design and 1" diameter construction providing enhanced architectural detailing.
AB2150-72: AB2150-72 - 72"-1"
Key Features
- Double Stepped Standoff Design
- Architectural Detailing
- Flat End Construction
Specifications
| Model | AB2150-72 |
|---|
| Finish | Bright Brass |
|---|
| Finish Code | US3 |
|---|
| Length (in) | 72 |
|---|
| Family | AB2150 |
|---|
| Material | Stainless steel |
|---|
| Finishes | US3, US4, US9, US10, US10B, US32, US32D, Custom Finishes Available |
|---|
| Diameter | 1" |
|---|
| Projection | 2-3/4" |
|---|
| Length Options | 12", 24", 36", 48", 60", 72", 84", 96" (Custom available) |
|---|
| Mid Post | Standard for lengths over 72" |
|---|
| Door Options | 1/2" (Glass), 1-3/4" (Wood or Metal), 2-1/4" (Wood or Metal) |
|---|
| Mounting Options | BTB (Back-to-Back), S (Single Side Mounting) |
|---|
| C to C Options | 6" - 90" |
|---|
Custom door thickness available. Double stepped standoffs provide distinctive architectural character.
Features
- Flat End Construction
- Architectural Detailing
- Double Stepped Standoff Design
Attributes
BRAND_ NAME: ABH
C to C Options: 6" - 90"
Diameter: 1"
Door Options: ½" (Glass), 1¾" (Wood or Metal), 2¼" (Wood or Metal)
Family: AB2150
Finish: Bright Brass
Finish Code: US3
Finishes: US3, US4, US9, US10, US10B, US32, US32D, Custom Finishes Available
Length (in): 72
Length Options: 12", 24", 36", 48", 60", 72", 84", 96" (Custom available)
Material: Stainless steel
Mid Post: Standard for lengths over 72"
Model: AB2150-72
Mounting Options: BTB (Back-to-Back), S (Single Side Mounting)
Projection: 2¾"
