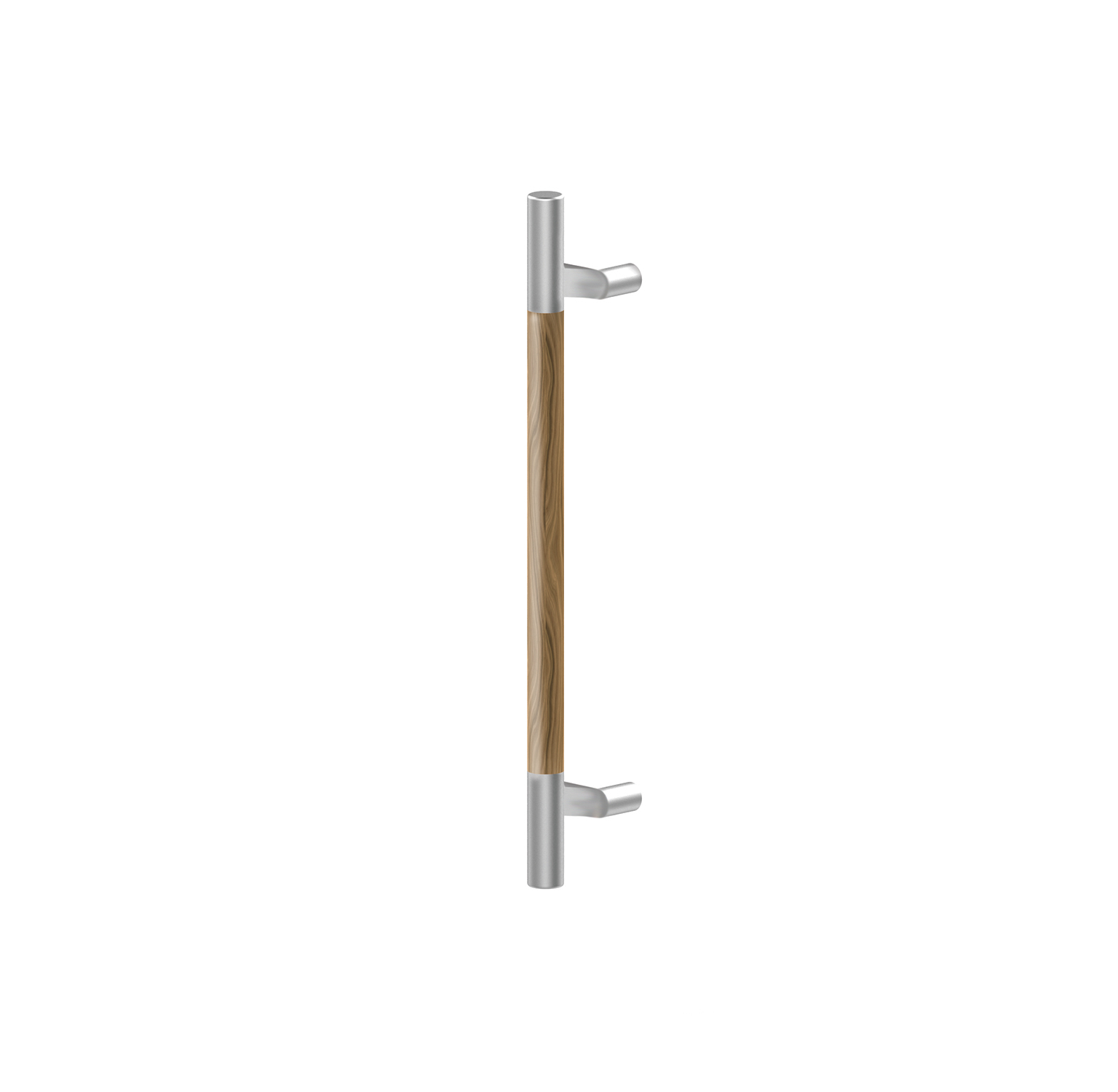

ABH AB4050-24 Offset Pull, Stainless Steel, Wood Grip, 24"-1-1/2", Bright Stainless SteelThe ABH AB4050-24 Offset Pull is a striking combination of durability and aesthetic appeal, crafted from high-quality stainless steel with a natural wood grip. Measuring 24 inches in length, this pull features flat ends that enhance its modern design while providing a comfortable and warm tactile feel. The offset configuration offers a unique architectural profile, making it an ideal choice for a variety of commercial settings, including office buildings, retail spaces, and educational facilities.
Constructed to meet high standards of performance, the AB4050-24 is designed for heavy-duty applications. It boasts a bright stainless steel finish (US32) that not only adds a sleek touch but also ensures resistance to corrosion and wear, making it suitable for high-traffic environments. The pull is available in multiple diameters and lengths, including variable diameter options of 1", 1¼", and 1½", allowing for customized installations tailored to specific door types.
Compliance with industry standards and a range of available wood finishes-from domestic options like Hickory and White Oak to premium choices like Mahogany-make the AB4050-24 a versatile and stylish addition to any project. The pull can be mounted back-to-back or on a single side, providing flexibility in installation. Choose the ABH AB4050-24 Offset Pull for an elegant solution that combines functionality with sophisticated design.
Offset Pull,Stainless Steel, Wood Grip, Flat Ends, Variable Diameter Options, 24"-1-1/2", Bright Stainless Steel
Offset stainless steel pull with natural wood grip section and flat ends combining offset geometry with warm tactile feel and distinctive natural appeal.
AB4050-24: AB4050-24 - 24"-1 ½"
Key Features
- Offset Configuration
- Natural Wood Grip
- Warm Tactile Feel
Specifications
| Model | AB4050-24 |
|---|
| Finish | Bright Stainless Steel |
|---|
| Finish Code | US32 |
|---|
| Length (in) | 24 |
|---|
| Family | AB4030 / AB4040 / AB4050 |
|---|
| Material | Stainless steel with natural wood grip |
|---|
| Finishes | US3, US4, US9, US10, US10B, US32, US32D, Custom Finishes Available |
|---|
| AB4030 | 1" Diameter, 2-1/2" Projection, 1-1/2" Clearance |
|---|
| AB4040 | 1-1/4" Diameter, 2-3/4" Projection, 1-1/2" Clearance |
|---|
| AB4050 | 1-1/2" Diameter, 3" Projection, 1-1/2" Clearance |
|---|
| Length Options | 12", 24", 36", 48" (Custom available) |
|---|
| Mid Post | Standard for lengths over 31" |
|---|
| Mounting Options | BTB (Back-to-Back), S (Single Side Mounting) |
|---|
| Door Options | 1/2" (Glass), 1-3/4" (Wood or Metal), 2-1/4" (Wood or Metal) |
|---|
| Engraving Options | Back-to-back (Push/Pull), Single side only (Push/Pull) |
|---|
| Wood Finishes | Standard Domestic (Hickory, White Oak, Red Oak, Maple), Premium (Beech, Cherry, Birch), Super Premium (Mahogany, Jotoba Brazilian Cherry, Canary Wood, Walnut) |
|---|
| C to C Options | 6", 18", 30", 36" |
|---|
Custom door thickness available. Offset design with natural wood grip provides unique architectural profile.
Features
- Warm Tactile Feel
- Natural Wood Grip
- Offset Configuration
Attributes
AB4030: 1" Diameter, 2½" Projection, 1½" Clearance
AB4040: 1¼" Diameter, 2¾" Projection, 1½" Clearance
AB4050: 1½" Diameter, 3" Projection, 1½" Clearance
BRAND_ NAME: ABH
C to C Options: 6", 18", 30", 36"
Door Options: ½" (Glass), 1-3/4" (Wood or Metal), 2-1/4" (Wood or Metal)
Engraving Options: Back-to-back (Push/Pull), Single side only (Push/Pull)
Family: AB4030 / AB4040 / AB4050
Finish: Bright Stainless Steel
Finish Code: US32
Finishes: US3, US4, US9, US10, US10B, US32, US32D, Custom Finishes Available
Length (in): 24
Length Options: 12", 24", 36", 48" (Custom available)
Material: Stainless steel with natural wood grip
Mid Post: Standard for lengths over 31"
Model: AB4050-24
Mounting Options: BTB (Back-to-Back), S (Single Side Mounting)
Wood Finishes: Standard Domestic (Hickory, White Oak, Red Oak, Maple), Premium (Beech, Cherry, Birch), Super Premium (Mahogany, Jotoba Brazilian Cherry, Canary Wood, Walnut)
