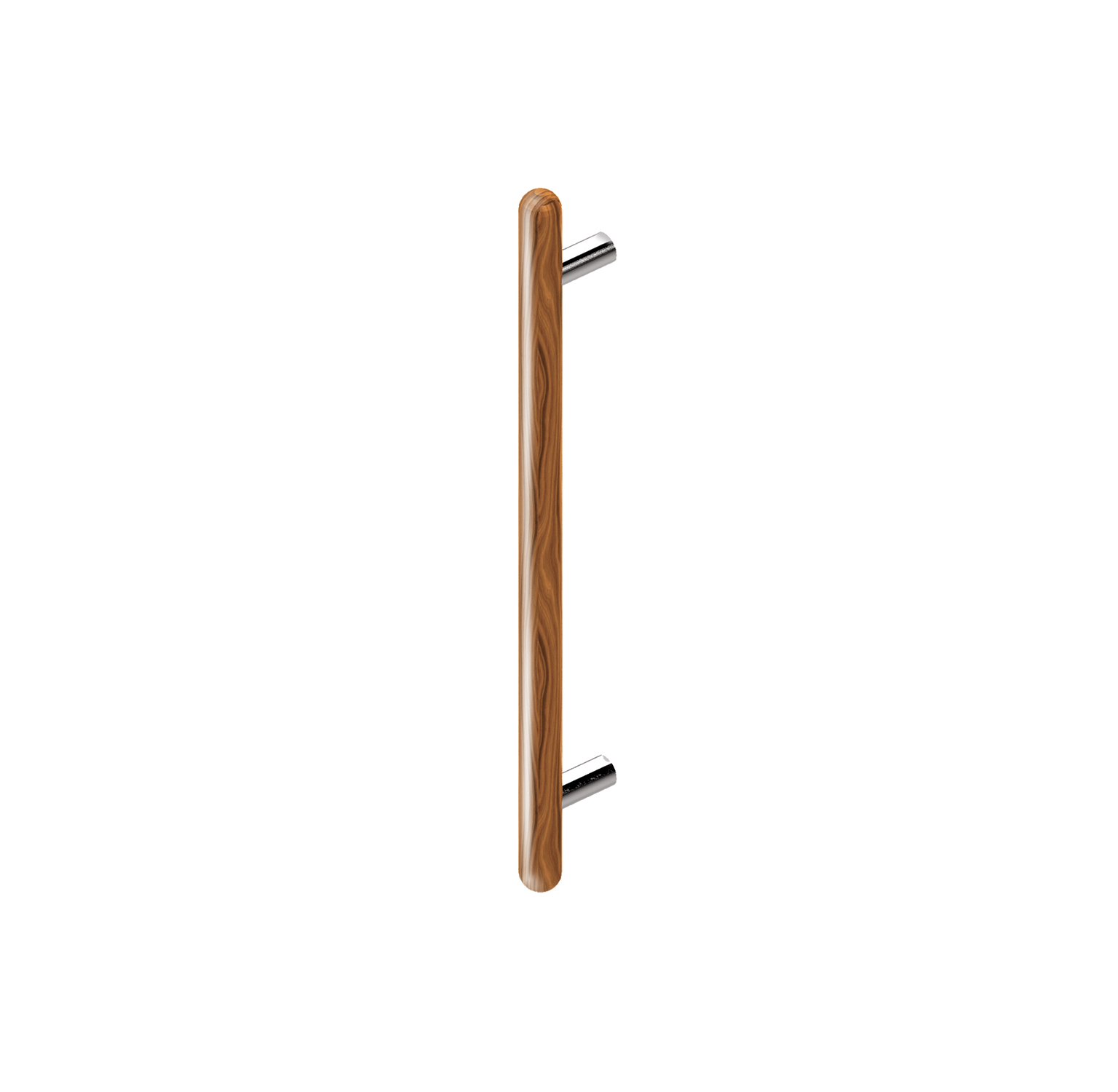

ABH AB4114-48 Straight Pull, Wood Grip, Styled Standoffs, 48"-1-1/4", Bright BronzeThe ABH AB4114-48 Straight Pull handle is expertly designed for commercial applications, combining functionality with an elegant aesthetic. Crafted from stainless steel, this 48-inch pull features a natural wood grip section, offering a warm tactile feel that enhances user experience. The styled standoffs and round ends not only ensure smooth operational transitions but also contribute to the architectural detail of any environment.
With a duty rating suitable for high-traffic areas, the AB4114-48 is ideal for both wood and metal doors, accommodating thicknesses of ½", 1-3/4", and 2-1/4". This model also offers variable diameter options, including a 1¼" diameter for optimal grip. Standard finishes include Bright Bronze (US9), with additional options available for customization to meet specific design requirements.
Compliance with industry standards ensures that this pull handle meets the rigorous demands of commercial use. Available mounting options include back-to-back (BTB) and single-side (S) installations, making it versatile for various door configurations. Enhance your project with the refined design and robust construction of the ABH AB4114-48, where style meets durability in commercial door hardware.
Straight Pull, Wood Grip, Styled Standoffs, Round Ends, Variable Diameter Options, 48"-1-1/4", Bright Bronze
Straight stainless steel pull with natural wood grip section, styled standoffs, and round ends providing warm tactile feel with smooth operational transitions and enhanced architectural detailing.
AB4114-48: AB4114-48 - 48"-1 ¼"
Key Features
- Natural Wood Grip
- Styled Standoff Design
- Round End Construction
Specifications
| Model | AB4114-48 |
|---|
| Finish | Bright Bronze |
|---|
| Finish Code | US9 |
|---|
| Length (in) | 48 |
|---|
| Family | AB4104 / AB4114 / AB4124 |
|---|
| Material | Stainless steel with natural wood grip |
|---|
| Finishes | US3, US4, US9, US10, US10B, US32, US32D, Custom Finishes Available |
|---|
| AB4104 | 1" Diameter, 2-3/4" Projection, 1-3/4" Clearance |
|---|
| AB4114 | 1-1/4" Diameter, 3" Projection, 1-3/4" Clearance |
|---|
| AB4124 | 1-1/2" Diameter, 3-1/4" Projection, 1-3/4" Clearance |
|---|
| Length Options | 12", 24", 36", 48" (Custom available) |
|---|
| Mid Post | Standard for lengths over 31" |
|---|
| Mounting Options | BTB (Back-to-Back), S (Single Side Mounting) |
|---|
| Door Options | 1/2" (Glass), 1-3/4" (Wood or Metal), 2-1/4" (Wood or Metal) |
|---|
| Engraving Options | Back-to-back (Push/Pull), Single side only (Push/Pull) |
|---|
| Wood Finishes | Standard Domestic (Hickory, White Oak, Red Oak, Maple), Premium (Beech, Cherry, Birch), Super Premium (Mahogany, Jotoba Brazilian Cherry, Canary Wood, Walnut) |
|---|
| C to C Options | 6", 18", 30", 36" |
|---|
Custom door thickness available. Round ends with styled standoffs provide optimal comfort and architectural distinction.
Features
- Styled Standoff Design
- Round End Construction
- Natural Wood Grip
Attributes
AB4104: 1" Diameter, 2¾" Projection, 1¾" Clearance
AB4114: 1¼" Diameter, 3" Projection, 1¾" Clearance
AB4124: 1½" Diameter, 3¼" Projection, 1¾" Clearance
BRAND_ NAME: ABH
C to C Options: 6", 18", 30", 36"
Door Options: ½" (Glass), 1-3/4" (Wood or Metal), 2-1/4" (Wood or Metal)
Engraving Options: Back-to-back (Push/Pull), Single side only (Push/Pull)
Family: AB4104 / AB4114 / AB4124
Finish: Bright Bronze
Finish Code: US9
Finishes: US3, US4, US9, US10, US10B, US32, US32D, Custom Finishes Available
Length (in): 48
Length Options: 12", 24", 36", 48" (Custom available)
Material: Stainless steel with natural wood grip
Mid Post: Standard for lengths over 31"
Model: AB4114-48
Mounting Options: BTB (Back-to-Back), S (Single Side Mounting)
Wood Finishes: Standard Domestic (Hickory, White Oak, Red Oak, Maple), Premium (Beech, Cherry, Birch), Super Premium (Mahogany, Jotoba Brazilian Cherry, Canary Wood, Walnut)
