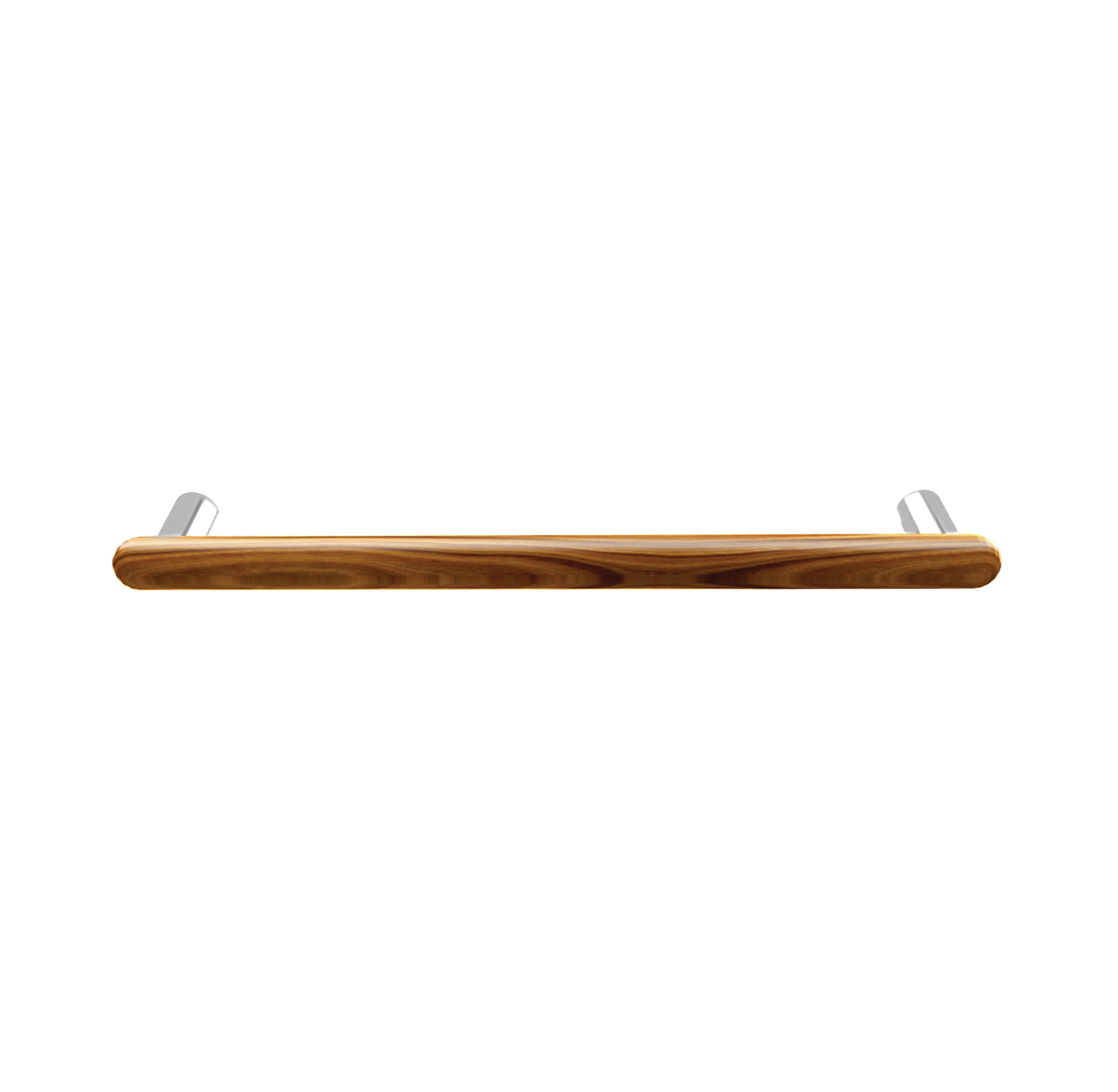

ABH AB4116 Straight Pull, Horizontal, Stainless Steel, Wood Grip, Round Ends, Satin Brass, Up to 36" CTCThe ABH AB4116 Straight Pull is a sophisticated addition to any commercial space, combining functionality with aesthetic appeal. Constructed from durable stainless steel, this horizontal pull features natural wood grip sections that enhance tactile comfort and provide a warm, inviting feel. The styled standoffs and round ends not only elevate architectural detailing but also ensure smooth operational transitions for users.
Designed for versatility, the AB4116 accommodates various door thicknesses, making it suitable for glass doors (½"), wood or metal doors (1-3/4" and 2-1/4"). With a mounting option of back-to-back (BTB) or single side, this pull is adaptable to diverse installation needs. The unit boasts a duty rating that meets rigorous commercial standards, ensuring reliable performance in high-traffic environments.
Available in a sleek satin brass finish (US4), the AB4116 complements a range of interior styles. Additional finish options include US3, US9, US10, US10B, US32, US32D, and custom finishes to meet specific design requirements. The variable grip sizes and engraving options (available for both push/pull configurations) further tailor this product to your project’s needs. Choose the ABH AB4116 for a blend of functionality, style, and durability in your architectural designs.
Straight Pull, Horizontal, Stainless Steel, Wood Grip, Styled Standoffs, Round Ends, Variable Grip Sizes, UP TO 36" CTC-1-1/4", Satin Brass
Horizontal configuration straight stainless steel pulls with natural wood grip sections, styled standoffs, and round ends available in two diameter options combining warm tactile feel with smooth operational transitions and enhanced architectural detailing.
AB4116: AB4116 - UP TO 36" CTC-1 ¼"
Key Features
- Natural Wood Grip
- Styled Standoff Design
- Round End Construction
Specifications
| Model | AB4116 |
|---|
| Finish | Satin Brass |
|---|
| Finish Code | US4 |
|---|
| Family | AB4116 / AB4126 |
|---|
| Material | Stainless steel with natural wood grip |
|---|
| Finishes | US3, US4, US9, US10, US10B, US32, US32D, Custom Finishes Available |
|---|
| AB4116 | 1-1/4" Diameter, 3" Projection, 1-3/4" Clearance |
|---|
| AB4126 | 1-1/2" Diameter, 3-1/4" Projection, 1-3/4" Clearance |
|---|
| Wood Finishes | Standard Domestic (Hickory, White Oak, Red Oak, Maple), Premium (Beech, Cherry, Birch), Super Premium (Mahogany, Jotoba Brazilian Cherry, Canary Wood, Walnut) |
|---|
| Mounting Options | BTB (Back-to-Back), S (Single Side Mounting) |
|---|
| Door Options | 1/2" (Glass), 1-3/4" (Wood or Metal), 2-1/4" (Wood or Metal) |
|---|
| Engraving Options | Back-to-back (Push/Pull), Single side only (Push/Pull) |
|---|
| C to C Options | Up to 45-1/2" |
|---|
Custom door thickness available. Round ends with styled standoffs and natural wood grip provide optimal comfort and architectural distinction.
Features
- Styled Standoff Design
- Round End Construction
- Natural Wood Grip
Attributes
AB4116: 1¼" Diameter, 3" Projection, 1¾" Clearance
AB4126: 1½" Diameter, 3¼" Projection, 1¾" Clearance
BRAND_ NAME: ABH
C to C Options: Up to 45-1/2"
Door Options: ½" (Glass), 1-3/4" (Wood or Metal), 2-1/4" (Wood or Metal)
Engraving Options: Back-to-back (Push/Pull), Single side only (Push/Pull)
Family: AB4116 / AB4126
Finish: Satin Brass
Finish Code: US4
Finishes: US3, US4, US9, US10, US10B, US32, US32D, Custom Finishes Available
Material: Stainless steel with natural wood grip
Model: AB4116
Mounting Options: BTB (Back-to-Back), S (Single Side Mounting)
Wood Finishes: Standard Domestic (Hickory, White Oak, Red Oak, Maple), Premium (Beech, Cherry, Birch), Super Premium (Mahogany, Jotoba Brazilian Cherry, Canary Wood, Walnut)
