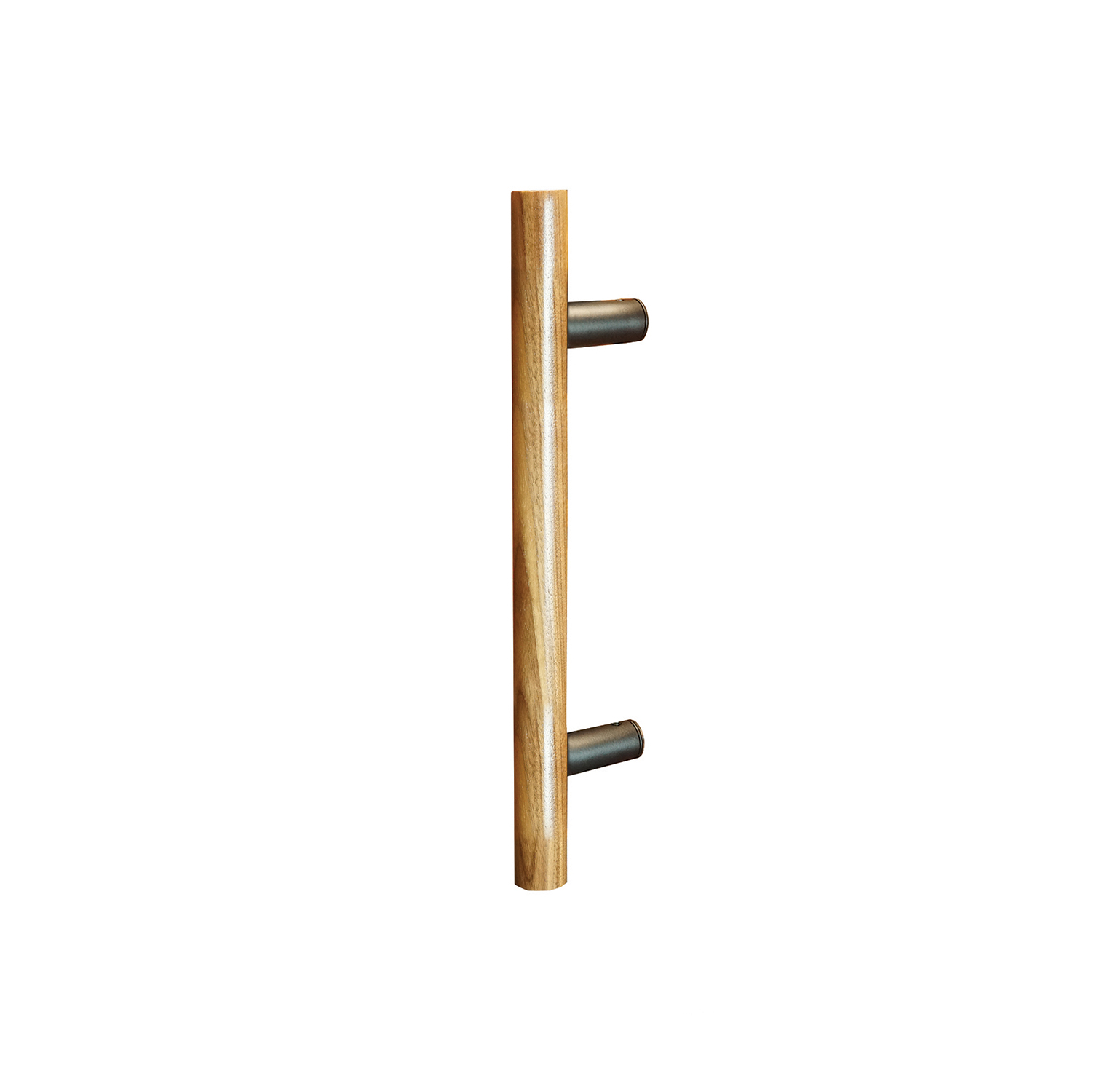

ABH AB4120-12 Straight Pull, Stainless Steel, Wood Grip, 12"-1-1/2", Oil Rubbed BronzeThe ABH AB4120-12 Straight Pull combines the durability of stainless steel with the warmth of a natural wood grip, creating a sophisticated hardware solution for high-traffic commercial environments. With a length of 12 inches and a striking oil rubbed bronze finish (US10B), this pull not only meets functional requirements but also enhances the aesthetic appeal of any entryway.
Designed for versatility, the AB4120-12 accommodates variable diameter options, allowing for customized installations to suit different door thicknesses, including glass and wood or metal doors. The pull features styled standoffs and flat ends that provide a tactile warmth while ensuring robust support. Its enhanced architectural detailing makes it an excellent choice for modern commercial spaces.
This pull is rated for heavy-duty applications, suitable for both single and back-to-back mounting configurations. It complies with industry standards, ensuring reliability and safety in all installations. Additionally, the availability of custom finishes and wood choices-from standard to super premium-provides architects and contractors with the flexibility to match any design vision.
Elevate your project with the ABH AB4120-12 Straight Pull, where form meets function in a harmonious blend of materials and design.
Straight Pull, Stainless Steel, Wood Grip, Styled Standoffs, Flat Ends, Variable Diameter Options, 12"-1-1/2", Oil Rubbed Bronze
Straight stainless steel pull with natural wood grip section, styled standoffs, and flat ends providing warm tactile feel with enhanced architectural detailing in extended lengths.
AB4120-12: AB4120-12 - 12"-1 ½"
Key Features
- Natural Wood Grip
- Styled Standoff Design
- Enhanced Architectural Detailing
Specifications
| Model | AB4120-12 |
|---|
| Finish | Oil Rubbed Bronze |
|---|
| Finish Code | US10B |
|---|
| Length (in) | 12 |
|---|
| Family | AB4100 / AB4110 / AB4120 |
|---|
| Material | Stainless steel with natural wood grip |
|---|
| Finishes | US3, US4, US9, US10, US10B, US32, US32D, Custom Finishes Available |
|---|
| AB4100 | 1" Diameter, 2-3/4" Projection, 1-3/4" Clearance |
|---|
| AB4110 | 1-1/4" Diameter, 3" Projection, 1-3/4" Clearance |
|---|
| AB4120 | 1-1/2" Diameter, 3-1/4" Projection, 1-3/4" Clearance |
|---|
| Length Options | 12", 24", 36", 48" (Custom available) |
|---|
| Mid Post | Standard for lengths over 31" |
|---|
| Mounting Options | BTB (Back-to-Back), S (Single Side Mounting) |
|---|
| Door Options | 1/2" (Glass), 1-3/4" (Wood or Metal), 2-1/4" (Wood or Metal) |
|---|
| Engraving Options | Back-to-back (Push/Pull), Single side only (Push/Pull) |
|---|
| Wood Finishes | Standard Domestic (Hickory, White Oak, Red Oak, Maple), Premium (Beech, Cherry, Birch), Super Premium (Mahogany, Jotoba Brazilian Cherry, Canary Wood, Walnut) |
|---|
| C to C Options | 6", 18", 30", 36" |
|---|
Custom door thickness available. Styled standoffs provide distinctive architectural appeal with natural wood warmth.
Features
- Styled Standoff Design
- Enhanced Architectural Detailing
- Natural Wood Grip
Attributes
AB4100: 1" Diameter, 2¾" Projection, 1¾" Clearance
AB4110: 1¼" Diameter, 3" Projection, 1¾" Clearance
AB4120: 1½" Diameter, 3¼" Projection, 1¾" Clearance
BRAND_ NAME: ABH
C to C Options: 6", 18", 30", 36"
Door Options: ½" (Glass), 1-3/4" (Wood or Metal), 2-1/4" (Wood or Metal)
Engraving Options: Back-to-back (Push/Pull), Single side only (Push/Pull)
Family: AB4100 / AB4110 / AB4120
Finish: Oil Rubbed Bronze
Finish Code: US10B
Finishes: US3, US4, US9, US10, US10B, US32, US32D, Custom Finishes Available
Length (in): 12
Length Options: 12", 24", 36", 48" (Custom available)
Material: Stainless steel with natural wood grip
Mid Post: Standard for lengths over 31"
Model: AB4120-12
Mounting Options: BTB (Back-to-Back), S (Single Side Mounting)
Wood Finishes: Standard Domestic (Hickory, White Oak, Red Oak, Maple), Premium (Beech, Cherry, Birch), Super Premium (Mahogany, Jotoba Brazilian Cherry, Canary Wood, Walnut)
