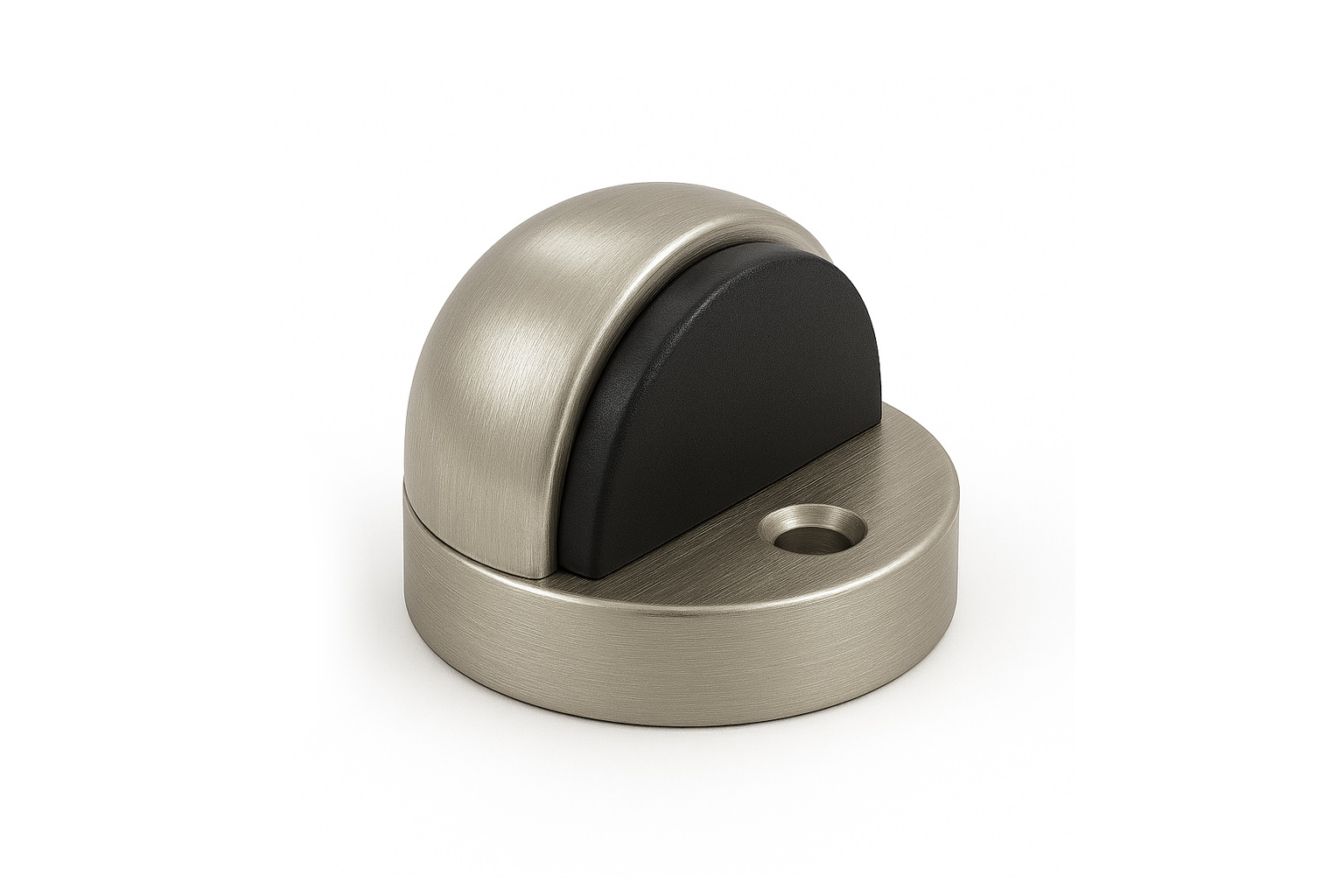

ABH AB442EXP High Dome Stops, Exterior Mounting Pack, Satin BrassThe ABH AB442EXP High Dome Stop is expertly designed for commercial applications where durability and reliability are paramount. Crafted from solid cast brass, this floor-mounted stop is engineered to accommodate doors with thresholds or undercut designs, ensuring effective door control in high-traffic environments.
With a height of 1-1/2 inches and a base diameter of 1-7/8 inches, the AB442EXP provides a robust barrier, effectively preventing door damage and minimizing noise. The satin brass finish not only enhances its aesthetic appeal but also ensures corrosion resistance, making it suitable for exterior applications. The stop comes equipped with an exterior mounting pack, which includes stainless steel plated screws for optimal performance in outdoor settings.
Compliance with industry standards is a key feature, ensuring that the AB442EXP meets the rigorous demands of architects, contractors, and facility managers. The accompanying fasteners, including #12 x 1-1/2 inch flat head wood screws and a plastic anchor, facilitate straightforward installation.
Available in multiple finishes, including custom options, the AB442EXP High Dome Stop is an excellent choice for those seeking a blend of functionality and style in their door hardware solutions.
High Dome Stops, High Dome Stop, Exterior Mounting Pack, Satin Brass
The breakdown of the differences between the AB442, AB442EXT, AB442T, and AB443 based on available product data and standard suffix conventions.
AB442
A high‑dome floor-mounted stop made of solid cast brass.
Designed for doors with thresholds or undercut doors.
Comes with wood screw (WS) and plastic anchor.
Height: 1‑1/2", Base: 1/2" × 1‑7/8".
AB442EXP
Exterior Pack screw packs; stainless steel plated to match — use EXP suffix
(AB442 × EXP) when ordering.
AB442T
The AB442T is supplied with Torx tamper‑resistant fasteners, typically for security‑sensitive applications.
AB443
The AB443 is closely related to the AB442 but differs in height and includes fasteners:
Also, a cast‑brass high‑dome stop for threshold/undercut doors.
Slightly shorter dome: Height = 1‑5/16" (vs 1‑1/2" on 442).
Includes both WS (wood screw) and MS (machine screw) fasteners.
Same 1‑7/8" base diameter.
AB442EXP: High Dome Stop, Exterior Mounting Pack
Key Features
- AB442EXP - comes with an exterior Mounting Pack
- AB442T - comes with Torx Screws
- For doors with thresholds
Specifications
| Model | AB442EXP |
|---|
| Finish | Satin Brass |
|---|
| Finish Code | US4 |
|---|
| Family | AB442 / AB442EXP / AB442T |
|---|
| Material | Base Solid cast metal, Bumper Rubber |
|---|
| Finishes | US3, US4, US10, US10B, US15, US26, US26D, US32, Custom Finishes Available |
|---|
| Base Diameter | 1-7/8" |
|---|
| Base Height | 1/2" |
|---|
| Height | 1-1/2" |
|---|
| Fasteners | #12 x 1-1/2" FH WS, plastic anchor |
|---|
Features
- AB442EXP - comes with an exterior Mounting Pack
- AB442T - comes with Torx Screws
- For doors with thresholds
Attributes
BRAND_ NAME: ABH
Base Diameter: 1-7/8"
Base Height: 1/2"
Family: AB442 / AB442EXP / AB442T
Fasteners: #12 x 1-1/2" FH WS, plastic anchor
Finish: Satin Brass
Finish Code: US4
Finishes: US3, US4, US10, US10B, US15, US26, US26D, US32, Custom Finishes Available
Height: 1-1/2"
Material: Base Solid cast metal, Bumper Rubber
Model: AB442EXP
