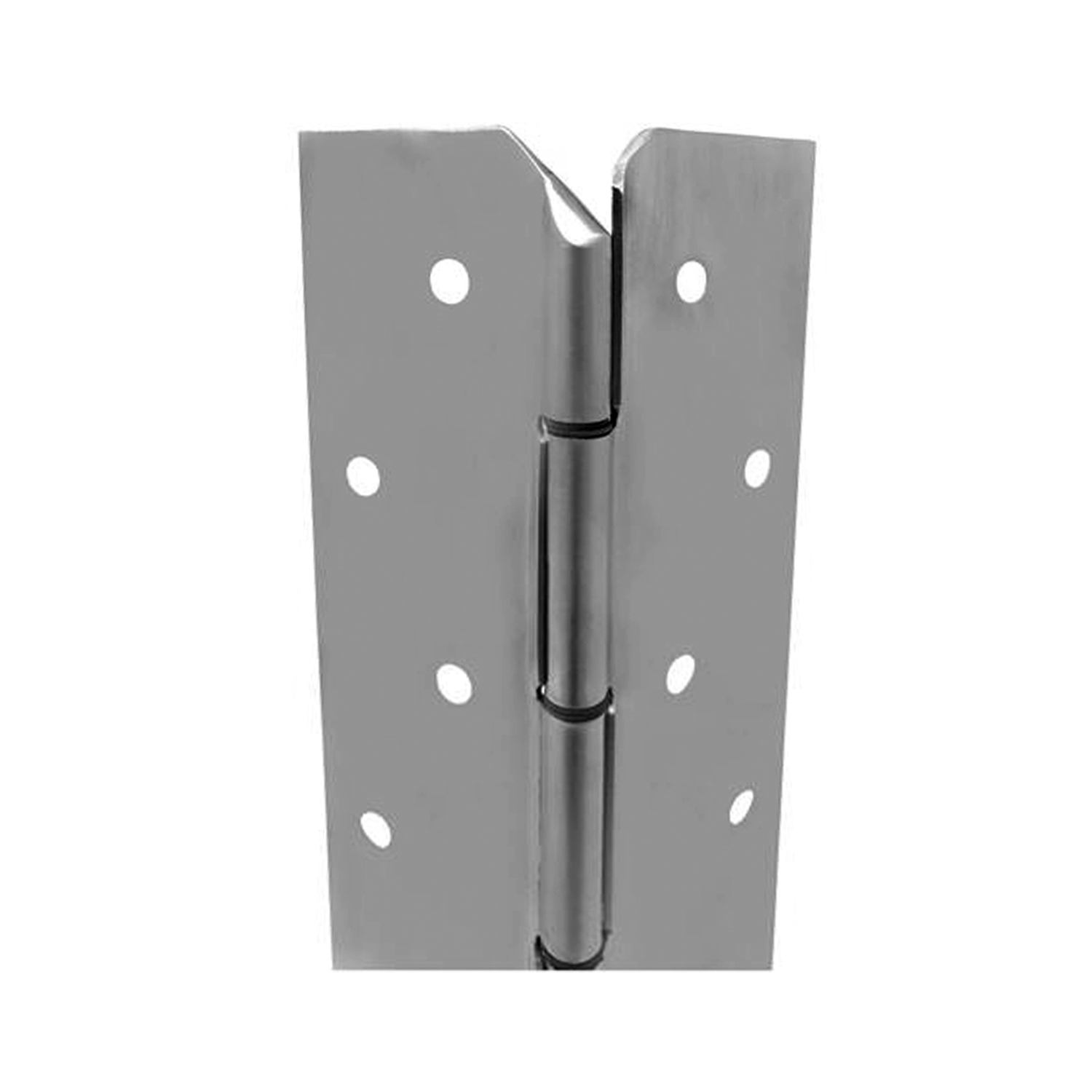

ABH AC500078 Ligature Resistant Stainless Steel Pin Barrel Continuous Hinge, 14 Gauge, Satin SSThe ABH AC500078 Ligature Resistant Stainless Steel Pin Barrel Continuous Hinge is expertly designed for high-security applications, particularly in behavioral health facilities, hospitals, and correctional institutions. Constructed from durable 14-gauge stainless steel, this hinge ensures exceptional strength and longevity, supporting door weights of up to 600 lbs.
Its ligature resistant design features a no-gap barrel, expertly crafted with zero gaps between barrels that are cut at 45° and welded to eliminate any potential ligature points. This innovative design not only enhances safety but also meets the stringent approval standards set by the NY Office of Mental Health, making it an ideal choice for environments requiring heightened security.
The AC500078 hinge is available with a satin stainless steel finish (US32D), ensuring a sleek and professional appearance that complements various architectural styles. Additionally, it is ANSI BHMA 156.26 Grade 1 compliant, guaranteeing its reliability and performance under rigorous conditions.
With a standard hospital tip and each barrel encased within the hinge leaf flange, this hinge provides both functionality and safety. Choose the ABH AC500078 for a dependable solution that meets the demanding needs of modern facilities while prioritizing user safety.
Ligature Resistant Stainless Steel Pin and Barrel Continuous Hinge, 14 Gauge, 1/8" Inset, Ligature Resistant, No Gap Barrel, Hospital Tip, Standard, Satin Stainless Steel
Ligature resistant pin and barrel hinge with zero gaps between barrels, approved by NY Office of Mental Health for behavioral health facilities requiring enhanced safety.
AC500078: 14 Gauge, 1/8" Inset, Ligature Resistant, No Gap Barrel, Hospital Tip, Standard
Key Features
- Ligature Resistant Design
- 14 Gauge
- Zero Gap Barrels, Cut at 45° and Welded
- No See Through Design
- NY Mental Health Approved
- ANSI BHMA Grade 1
- Each Barrel Encased in Hinge Leaf Flange
- Hospital Tip Standard
Specifications
| Model | AC500078 |
|---|
| Finish | Satin Stainless Steel |
|---|
| Finish Code | US32D |
|---|
| Length (in) | 78.75 |
|---|
| Family | AC500 |
|---|
| Material | Stainless steel |
|---|
| Finishes | US32, US32D, Custom Finishes Available |
|---|
| Standard Lengths | 78-3/4", 83-1/8", 85", 95", 118-3/4" |
|---|
| Load Capacity | 600 lbs. door weight maximum |
|---|
| Door Width | 48" maximum |
|---|
| Door Inset | 1/8" inset |
|---|
| Standards | Meets ANSI BHMA 156.26 Grade 1 |
|---|
| Fasteners | Pin-in-Torx security screws |
|---|
Custom designed for behavioral health, hospitals, and correctional facilities. Also available in A505 and A515 models.
Features
- Zero Gap Barrels, Cut at 45° and Welded
- 14 Gauge
- Each Barrel Encased in Hinge Leaf Flange
- ANSI BHMA Grade 1
- No See Through Design
- Ligature Resistant Design
- NY Mental Health Approved
- Hospital Tip Standard
Attributes
BRAND_ NAME: ABH
Door Inset: 1/8" inset
Door Width: 48" maximum
Family: AC500
Fasteners: Pin-in-Torx security screws
Finish: Satin Stainless Steel
Finish Code: US32D
Finishes: US32, US32D, Custom Finishes Available
Length (in): 78.75
Load Capacity: 600 lbs. door weight maximum
Material: Stainless steel
Model: AC500078
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard Lengths: 78¾", 83⅛", 85", 95", 118¾"
Standards: Meets ANSI BHMA 156.26 Grade 1
