ABH AC515118 Full Mortise Stainless Steel Pin Barrel Continuous Hinge, 14 Gauge, Satin SSThe ABH AC515118 Full Mortise Stainless Steel Pin Barrel Continuous Hinge is engineered for high-performance applications in demanding environments, particularly hospitals. This heavy-duty hinge is constructed from 14-gauge stainless steel, ensuring exceptional durability and resistance to corrosion. Its innovative flush mount design and no gap barrel feature eliminate potential pinch points, promoting safety in high-traffic areas.
Designed with security in mind, the AC515118 includes standard hospital tips and security screws, making it an ideal choice for facilities requiring enhanced security measures. The comprehensive edge protection provided by the door edge guard on both faces not only protects the door but also enhances the longevity of the hinge.
This hinge is UL Listed for fire door assemblies, with ratings of 20 minutes for wood doors, 90 minutes for composite and hollow metal doors, and up to 3 hours for hollow metal applications. Available in a sleek satin stainless steel finish (US32D), it complements a variety of architectural styles while ensuring compliance with safety and accessibility standards.
For flexibility, optional adjustable studs are available, allowing for customization based on specific installation requirements. Trust the ABH AC515118 hinge for a robust, secure, and aesthetically pleasing solution in your next project.
Full Mortise Stainless Steel Pin and Barrel Continuous Hinge - Hospital with Security, 14 Gauge, No Inset, Flush Mount, No Gap Barrel, Door Edge Guard, Satin Stainless Steel
Full concealed heavy duty stainless steel pin and barrel continuous hinge with no gap barrel, standard hospital tip, security screws, and comprehensive edge protection.
AC515118: 14 Gauge, No Inset, Flush Mount, No Gap Barrel, Door Edge Guard
Key Features
- Full Concealed
- 14 Gauge
- No Gap Barrel
- Standard Hospital Tip
- Edge Guard Both Faces
- Adjustable Studs Optional
Specifications
| Model | AC515118 |
|---|
| Finish | Satin Stainless Steel |
|---|
| Finish Code | US32D |
|---|
| Length (in) | 118.75 |
|---|
| Family | AC515 |
|---|
| Material | Stainless steel pin and barrel |
|---|
| Finishes | US32, US32D, Custom Finishes Available |
|---|
| Standard Lengths | 78-3/4", 83-1/8", 85", 95", 118-3/4" |
|---|
| Edge Protection | Door edge guard on both faces of door |
|---|

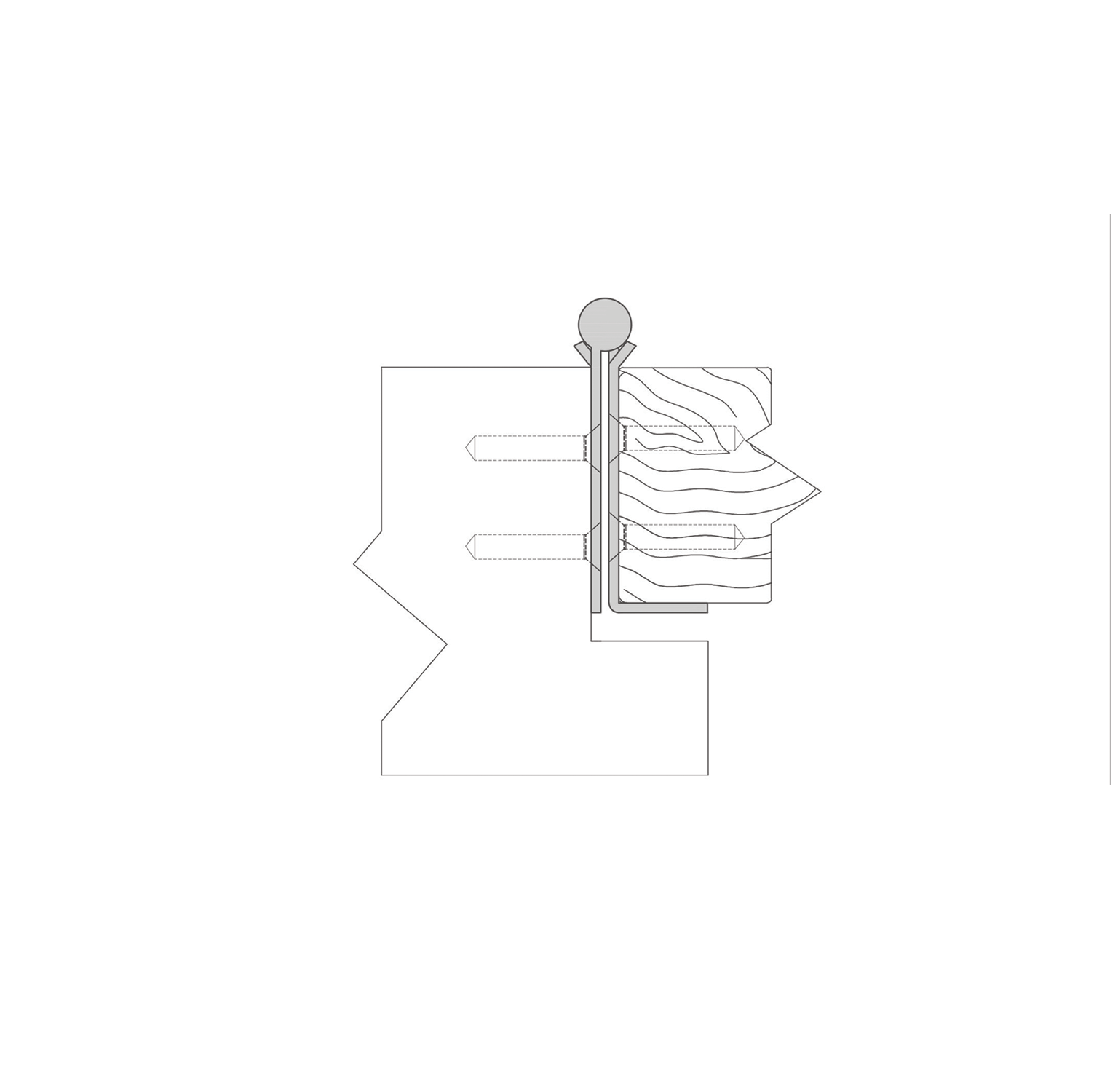

| Door Inset | No inset, flush mount |
|---|
| Fasteners | 10-24 x 3/4" undercut self-drilling stainless steel screws, #10 x 1-1/4" undercut wood screws stainless steel |
|---|
| Fire Rating | UL Listed for Fire Door Assemblies - 20 min (wood), 90 min (composite/hollow metal), 3 hr (hollow metal) |
|---|
| Security Features | Security screws standard |
|---|
Hospital configuration with security features and optional adjustable studs.
Features
- Standard Hospital Tip
- 14 Gauge
- No Gap Barrel
- Edge Guard Both Faces
- Full Concealed
- Adjustable Studs Optional
Attributes
Ship via: No UPS - Common Carrier Only
BRAND_ NAME: ABH
Door Inset: No inset, flush mount
Edge Protection: Door edge guard on both faces of door
Family: AC515
Fasteners: 10-24 x 3/4" undercut self-drilling stainless steel screws, #10 x 1-1/4" undercut wood screws stainless steel
Finish: Satin Stainless Steel
Finish Code: US32D
Finishes: US32, US32D, Custom Finishes Available
Fire Rating: UL Listed for Fire Door Assemblies - 20 min (wood), 90 min (composite/hollow metal), 3 hr (hollow metal)
Length (in): 118.75
Material: Stainless steel pin and barrel
Model: AC515118
Security Features: Security screws standard
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard Lengths: 78¾", 83⅛", 85", 95", 118¾"
