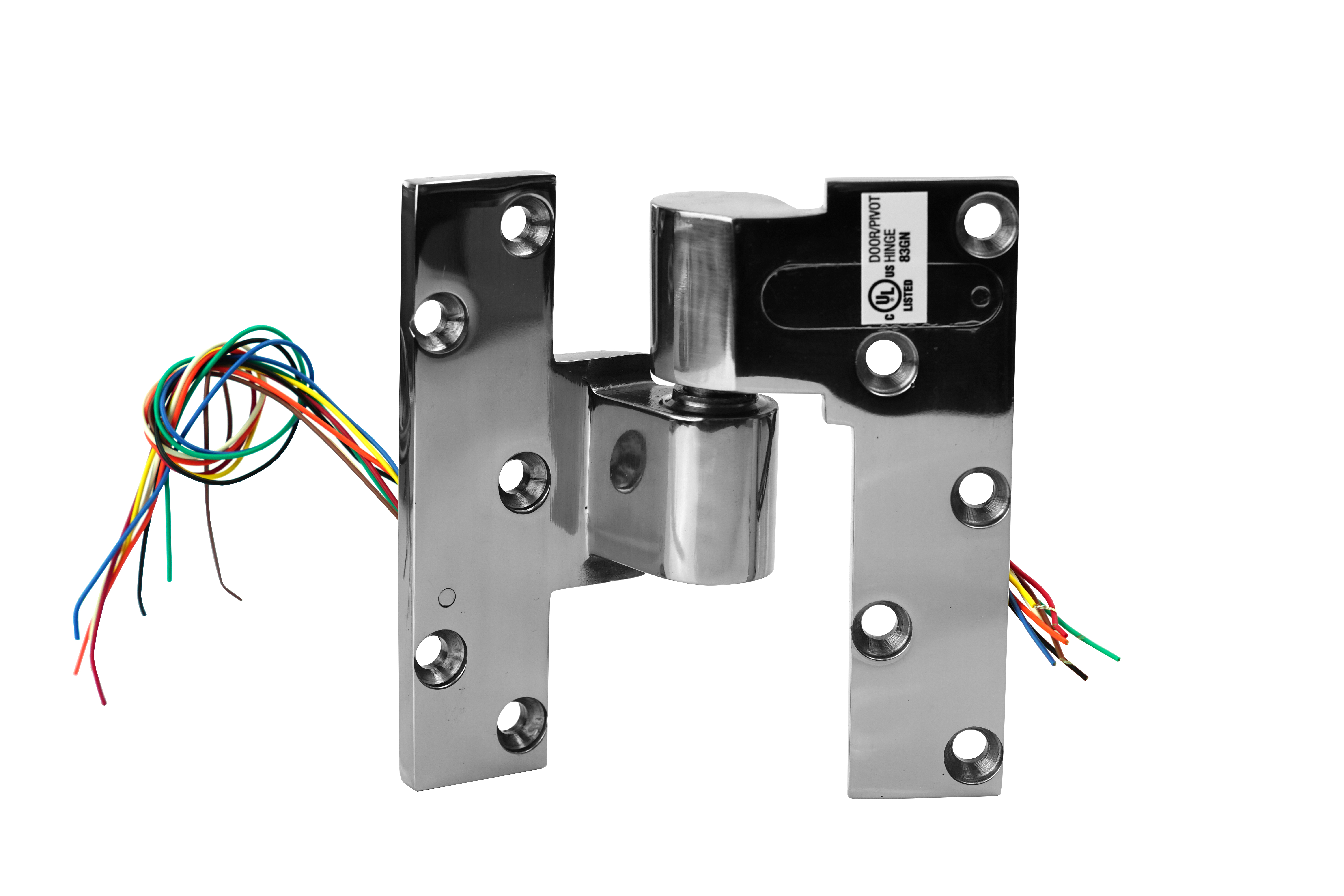

ABH EL019-LH Electrified 3/4" Offset Intermediate Pivot, Lead-Lined, Left Hand, Bright BrassThe ABH EL019-LH Electrified 3/4" Offset Intermediate Pivot is specifically engineered for lead-lined doors, providing a seamless electrical power transfer solution. Designed for 3/4" offset lead-lined pivot sets, this intermediate pivot features an integrated system with (8) 30 AWG wires, ensuring efficient connectivity while maintaining door alignment.
Constructed from durable stainless steel, this pivot is built to withstand heavy-duty applications, making it ideal for environments where both safety and functionality are paramount. The bright brass finish adds an aesthetic appeal, ensuring that this component not only performs well but also complements the overall design of your facility.
Installation is straightforward as the pivot mortises into the side jamb and hinge edge of the door, providing a secure fit. The left hand configuration is designed for specific applications, and the product is UL Listed for use on 3-Hour Fire Door Assemblies, ensuring compliance with stringent safety standards.
This pivot is a vital component for any facility requiring reliable power transfer with lead-lined doors, making it suitable for a variety of settings, including hospitals and laboratories. Choose the ABH EL019-LH for superior performance and compliance in your next project.
Electrified 3/4" Offset Intermediate Pivot - Lead-Lined, Intermediate Pivot Only, 3/4" Offset, For Use on Lead Lined Doors, (8) 30 AWG Wire Power Transfer, Left Hand, Bright Brass
Lead-lined electrified intermediate pivot providing electrical power transfer from frame to door with (8) 30 AWG wires for 3/4" offset lead-lined pivot sets.
EL019-LH: Intermediate Pivot Only, 3/4" Offset, For Use on Lead Lined Doors, (8) 30 AWG Wire Power Transfer, Left Hand
Key Features
- Lead-Lined Design
- 3/4" Offset
- Power Transfer
- Handed - Specify Left or Right
Specifications
| Model | EL019-LH |
|---|
| Finish | Bright Brass |
|---|
| Finish Code | US3 |
|---|
| Handing | Left Hand |
|---|
| Family | EL019-RH / EL019-LH |
|---|
| Material | Stainless Steel |
|---|
| Finishes | US3, US4, US9, US10, US10B, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, Custom Finishes Available |
|---|
| Wire Specification | (8) 30 AWG wires |
|---|
| Weight | 3.0 lbs. average per unit |
|---|
| Application | 3/4" offset lead-lined pivot sets, 1-3/4" lead-lined doors |
|---|
| Installation | Mortises into side jamb and hinge edge of door |
|---|
| Fire Rating | UL Listed for use on 3-Hour Fire Door Assemblies |
|---|
Specialized design for lead-lined doors while maintaining door alignment and power transfer.
Features
- Lead-Lined Design
- 3/4" Offset
- Power Transfer
- Handed - Specify Left or Right
Attributes
Application: 3/4" offset lead-lined pivot sets, 1-3/4" lead-lined doors
BRAND_ NAME: ABH
Family: EL019-RH / EL019-LH
Finish: Bright Brass
Finish Code: US3
Finishes: US3, US4, US9, US10, US10B, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, Custom Finishes Available
Fire Rating: UL Listed for use on 3-Hour Fire Door Assemblies
Handing: Left Hand
Installation: Mortises into side jamb and hinge edge of door
Material: Stainless Steel
Model: EL019-LH
Weight: 3.0 lbs. average per unit
Wire Specification: (8) 30 AWG wires
