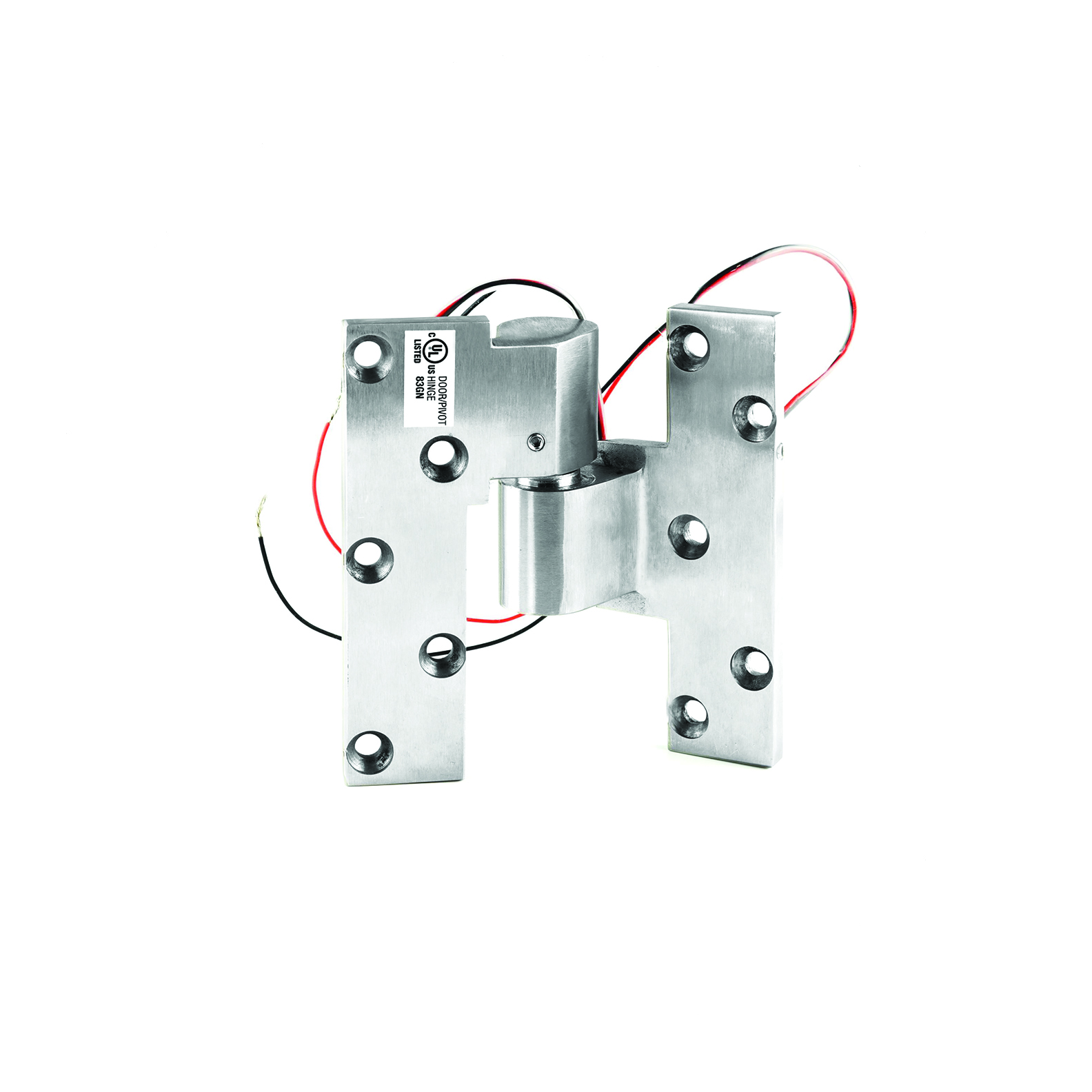

ABH EL019U-LH 3/4" Offset Electrified Pivot - Lead-Lined - (2) 18 Ga. Wires, Left HandThe ABH EL019U-LH 3/4" Offset Intermediate Electrified Pivot is specifically engineered for lead-lined doors, providing a robust solution for applications requiring electrical power transfer in environments with high inrush current. Constructed from heavy-duty stainless steel with precision needle bearings, this pivot ensures durability and reliable performance in demanding settings.
Designed for left-hand installations, the EL019U-LH features a 3/4" offset that allows for seamless integration into lead-lined door systems. It is equipped with two 18 AWG wires, each rated to deliver 2 amps continuously, making it ideal for electrical applications that require consistent power transfer without compromise. This pivot is not only functional but also compliant with industry standards, ensuring safe and efficient operation.
The pivot is available in a variety of finishes, including S1 (ALPC), along with options like US3, US4, and US9, allowing for customization to match the aesthetic of your facility. Its mortise installation into the side jamb and hinge edge of the door simplifies setup while maintaining structural integrity. Trust the ABH EL019U-LH for your electrified door hardware needs, and enjoy the perfect blend of functionality, compliance, and style.
3/4" Offset Intermediate Electrified Pivot - Lead-Lined - (2) 18 Ga. Wires, Intermediate Pivot Only, 3/4" Offset, For Use on Lead Lined Doors, (2) 18 AWG Wire Power Transfer for High Inrush, Left Hand
Lead-lined electrified intermediate pivot providing electrical power transfer for large inrush current applications with (2) 18 AWG wires rated at 2 amps continuously.
EL019U-LH: Intermediate Pivot Only, 3/4" Offset, For Use on Lead Lined Doors, (2) 18 AWG Wire Power Transfer for High Inrush, Left Hand
Key Features
- 3/4" Offset
- Lead-Lined Design
- Handed - Specify Left or Right
- Large Inrush Current
- Electrical Power Transfer From Frame to Door
Specifications
| Model | EL019U-LH |
|---|
| Finish | S1 (ALPC) |
|---|
| Finish Code | S1 |
|---|
| Handing | Left Hand |
|---|
| Family | EL019U-RH / EL019U-LH |
|---|
| Material | Stainless steel |
|---|
| Finishes | US3, US4, US9, US10, US10B, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, Custom Finishes Available |
|---|
| Wire Specification | (2) 18 AWG wires, each rated at 2 amps continuously |
|---|
| Installation | Mortises into side jamb and hinge edge of door |
|---|
| Construction | Heavy duty stainless steel needle bearings, stainless steel base material |
|---|
High-current lead-lined design for specialized radiation shielding applications.
Features
- Lead-Lined Design
- 3/4" Offset
- Electrical Power Transfer From Frame to Door
- Handed - Specify Left or Right
- Large Inrush Current
Attributes
BRAND_ NAME: ABH
Construction: Heavy duty stainless steel needle bearings, stainless steel base material
Family: EL019U-RH / EL019U-LH
Finish: S1 (ALPC)
Finish Code: S1
Finishes: US3, US4, US9, US10, US10B, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, Custom Finishes Available
Handing: Left Hand
Installation: Mortises into side jamb and hinge edge of door
Material: Stainless steel
Model: EL019U-LH
Wire Specification: (2) 18 AWG wires, each rated at 2 amps continuously
