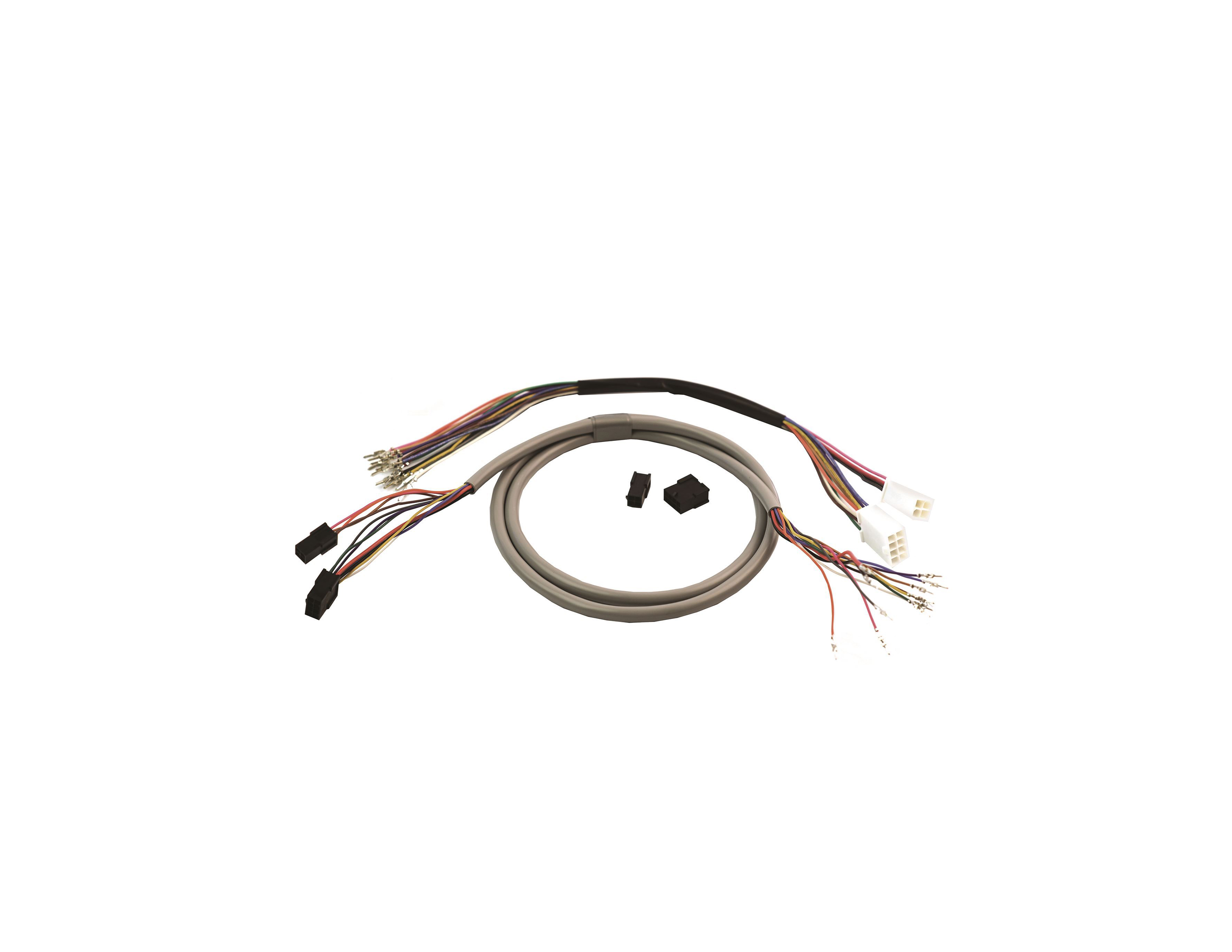

The ABH EZAA-84 ASSA Abloy EZ Connect Wire Harness is engineered for optimal performance in access control and electrified hardware applications. With a length of 84 inches, this pre-fabricated wire harness features ASSA Abloy (AA)-Molex Micro-Fit 3.0 connectors at both ends, ensuring reliable and efficient electrical connections.
Constructed with (10) 22 GA. and (2) 18 GA. wires, the EZAA-84 harness is built to meet the demanding requirements of professional-grade installations. The use of Molex connectors facilitates quick and secure connectivity, eliminating potential field wiring errors and significantly reducing installation time.
Designed for compatibility with ASSA Abloy systems, this harness is available in multiple length options ranging from 3 inches to 362 inches, accommodating various installation needs. The EZAA series includes configurations for both ends with Molex connectors, one end Molex with the other pinned, or one end Molex with stripped leads, providing flexibility for different project requirements.
In summary, the ABH EZAA-84 Wire Harness is an essential component for contractors, architects, and facility managers looking for a reliable solution that combines ease of installation with high-performance standards in access control systems.
ASSA Abloy EZ Connect Wire Harnesses, 84" - ASSA Abloy (AA)-Molex Micro-Fit 3.0 Connectors both Ends- (10) 22 GA. and (2) 18GA. Wires
Pre-fabricated wire harnesses designed for ASSA Abloy applications with Molex connectors providing reliable electrical connections for access control systems.
EZAA-84: 84" - ASSA Abloy® (AA)-Molex® Micro-Fit 3.0 Connectors both Ends- (10) 22 GA. & (2) 18GA. Wires
Pre-fabricated harnesses eliminate field wiring errors and reduce installation time for ASSA Abloy systems.
Features
Application: Access control and electrified hardware connections
BRAND_ NAME: ABH
Connector Configurations: Both ends with Molex connectors (EZAA-[LENGTH]) OR one end Molex/other end pinned (EZAA-[LENGTH]-1) OR one end Molex/other end stripped leads (EZAA-6-X)
Connector Type: Molex connectors
Family: EZAA
Length Options: 3" to 362" (21 standard lengths available - See cut sheet)
Model: EZAA-84
