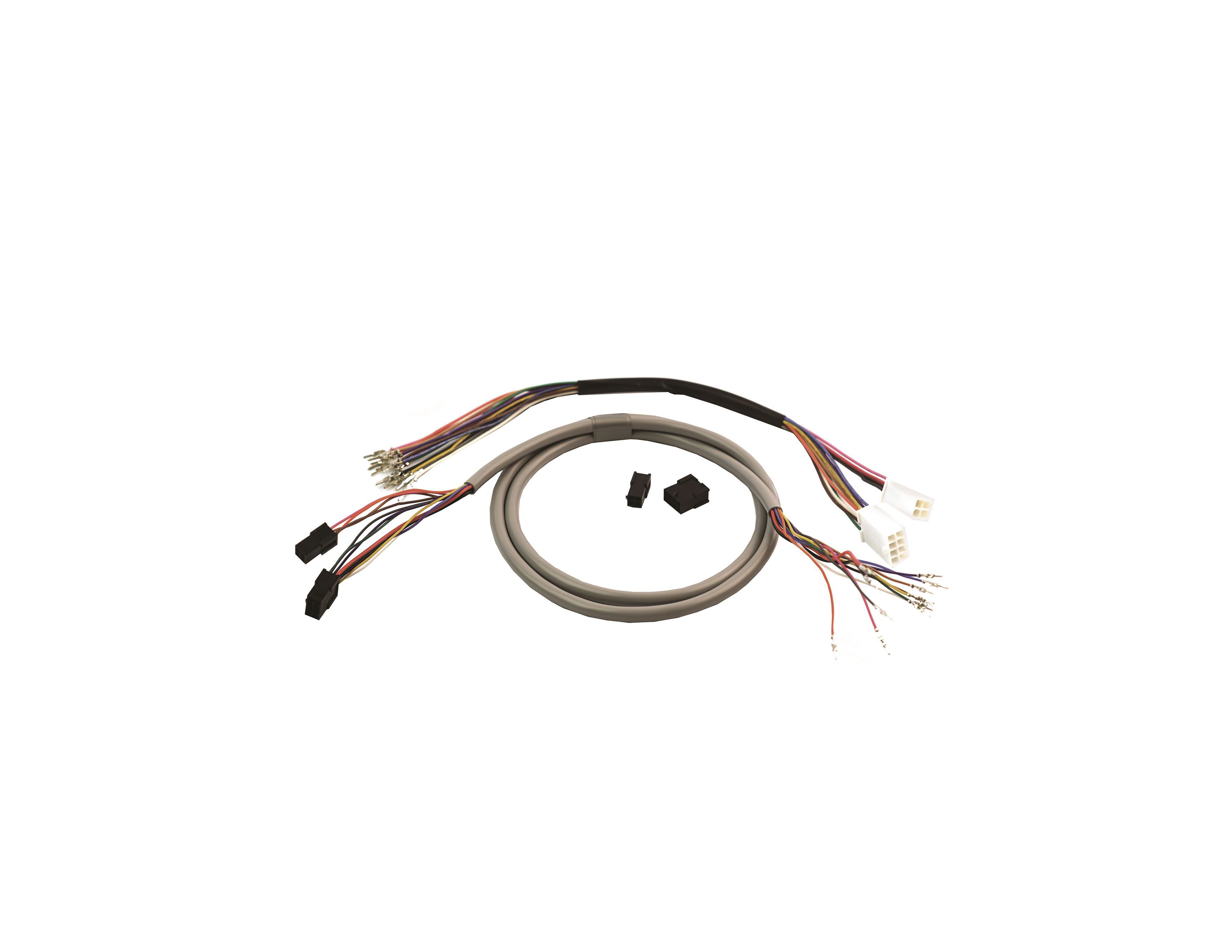

The ABH EZAL-192-1 Allegion EZ Connect Wire Harness is a pre-fabricated solution designed specifically for Allegion applications, ensuring reliable electrical connections for access control systems. With a length of 192 inches, this harness features (10) 22 AWG wires and (2) 18 AWG wires, all equipped with durable Molex connectors that facilitate seamless integration with electrified hardware.
Engineered for both contractors and facility managers, the EZAL-192-1 harness simplifies installation by eliminating common field wiring errors. This professional-grade product is compatible with various Allegion systems, making it a versatile choice for access control applications. Its pre-terminated design not only reduces installation time but also enhances the overall reliability of the electrical connections.
Available in multiple length options ranging from 3" to 362", the EZAL family provides flexibility to meet various project requirements. Connector configurations include both ends with Molex connectors, one end Molex with the other pinned, or one end Molex with stripped leads, ensuring adaptability for different installation scenarios.
Choose the ABH EZAL-192-1 wire harness for a dependable and efficient solution that meets the demands of modern access control systems while adhering to the highest standards of quality and compliance.
Allegion EZ Connect Wire Harnesses, 192" - Allegion (AL)-Molex Micro-Fit 3.0-(10) 22 AWG and (2) 18 AWG Wires
Pre-fabricated wire harnesses designed for Allegion applications with Molex connectors providing reliable electrical connections for access control systems.
EZAL-192-1: 192" - Allegion® (AL)-Molex® Micro-Fit 3.0-(10) 22 AWG & (2) 18 AWG Wires
Pre-fabricated harnesses eliminate field wiring errors and reduce installation time for Allegion systems.
Features
Application: Access control and electrified hardware connections
BRAND_ NAME: ABH
Connector Configurations: Both ends with Molex connectors (EZAL-[LENGTH]) OR one end Molex/other end pinned (EZAL-[LENGTH]-1) OR one end Molex/other end stripped leads (EZAL-6-X)
Connector Type: Molex connectors
Family: EZAL
Length Options: 3" to 362" (21 standard lengths available)
Model: EZAL-192-1
