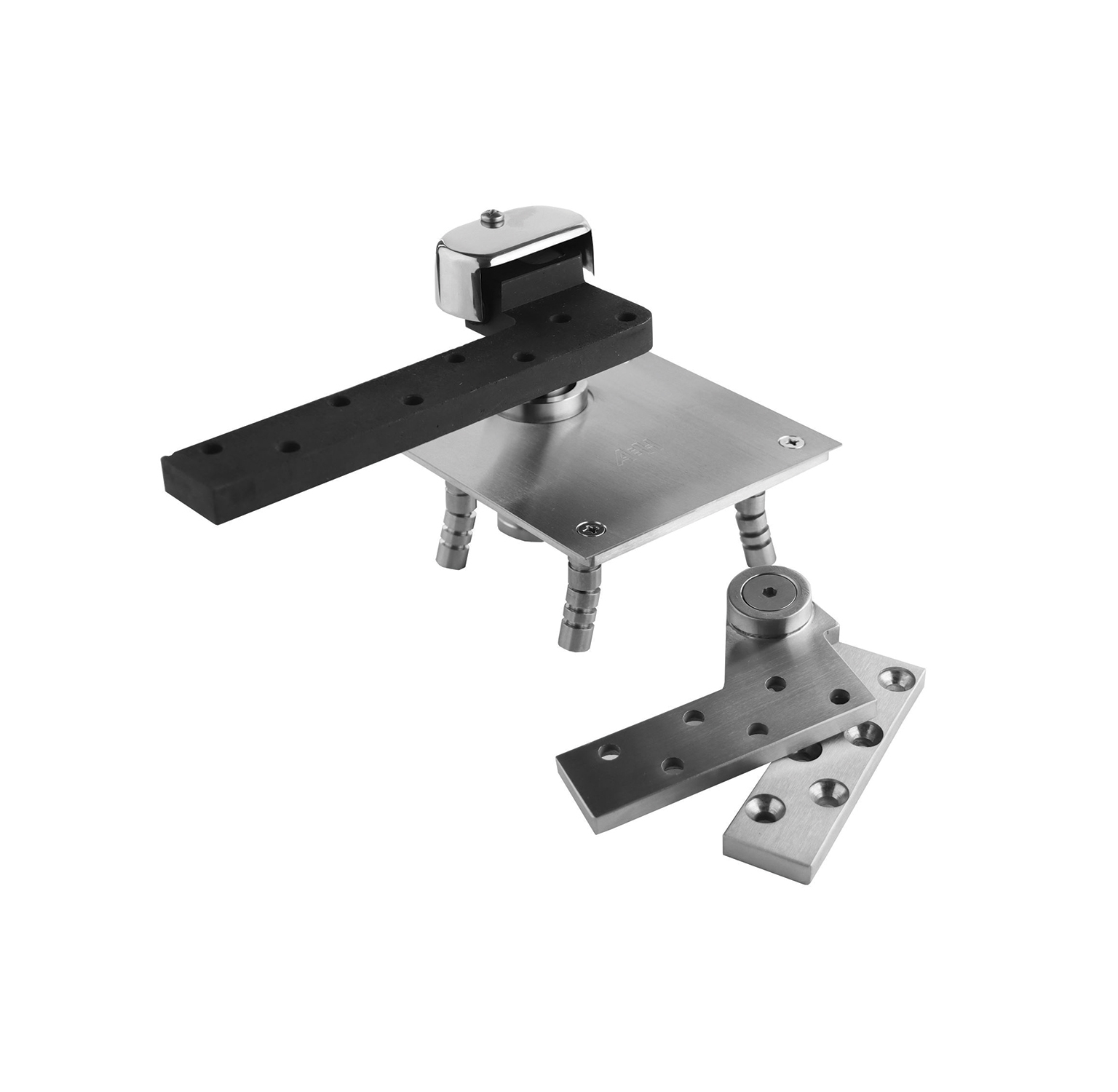

ABH L0117-RH 3/4" Offset Pivot Set - Extra Heavy-Duty, Lead Lined, Right Hand, Bright Brass

The ABH L0117-RH 3/4" Offset Pivot Set is engineered for extra heavy-duty applications, ideal for facilities requiring radiation shielding. This robust pivot set supports doors weighing up to 1,750 pounds and accommodates a maximum width of 48 inches, making it an optimal choice for lead-lined doors in medical or industrial environments.

Constructed from durable stainless steel and finished in bright brass (US3), this pivot set not only enhances security but also complements architectural aesthetics. The UL listing for use on 3-hour fire door assemblies ensures compliance with fire safety standards, making it suitable for various commercial applications. The right-hand handing allows for straightforward installation, while the included components-L0180 top pivot and 0117B bottom pivot-provide a complete solution for your door hardware needs.

Designed to support 1-3/4" lead-lined doors, the L0117-RH pivot set is perfect for environments where radiation shielding is essential. For optimal performance, note that an intermediate pivot (L019) is required for door heights exceeding 60 inches, with additional pivots recommended for every 30 inches of height. Trust ABH for reliable, high-quality commercial door hardware that meets your facility's demands.

3/4" Offset Pivot Set - Extra Heavy-Duty - Lead Lined, Pivot Set (Includes L0180 Top and 0117B Bottom), 3/4" Offset, Up to 1750 lbs., Right Hand, Bright Brass

Extra heavy duty lead lined pivot set with 3/4" offset supporting doors up to 1,750 pounds and 48" width for radiation shielding applications.

L0117-RH: Pivot Set (Includes L0180 Top & 0117B Bottom), 3/4" Offset, Up to 1750 lbs., Right Hand

Key Features

• Extra Heavy Duty
• UL Listed
• Handed - RH/LH

Specifications

Handed - specify LH or RH. L019 lead lined intermediate pivot required (order separately).

Features

• Extra Heavy Duty
• UL Listed
• Handed - RH/LH
