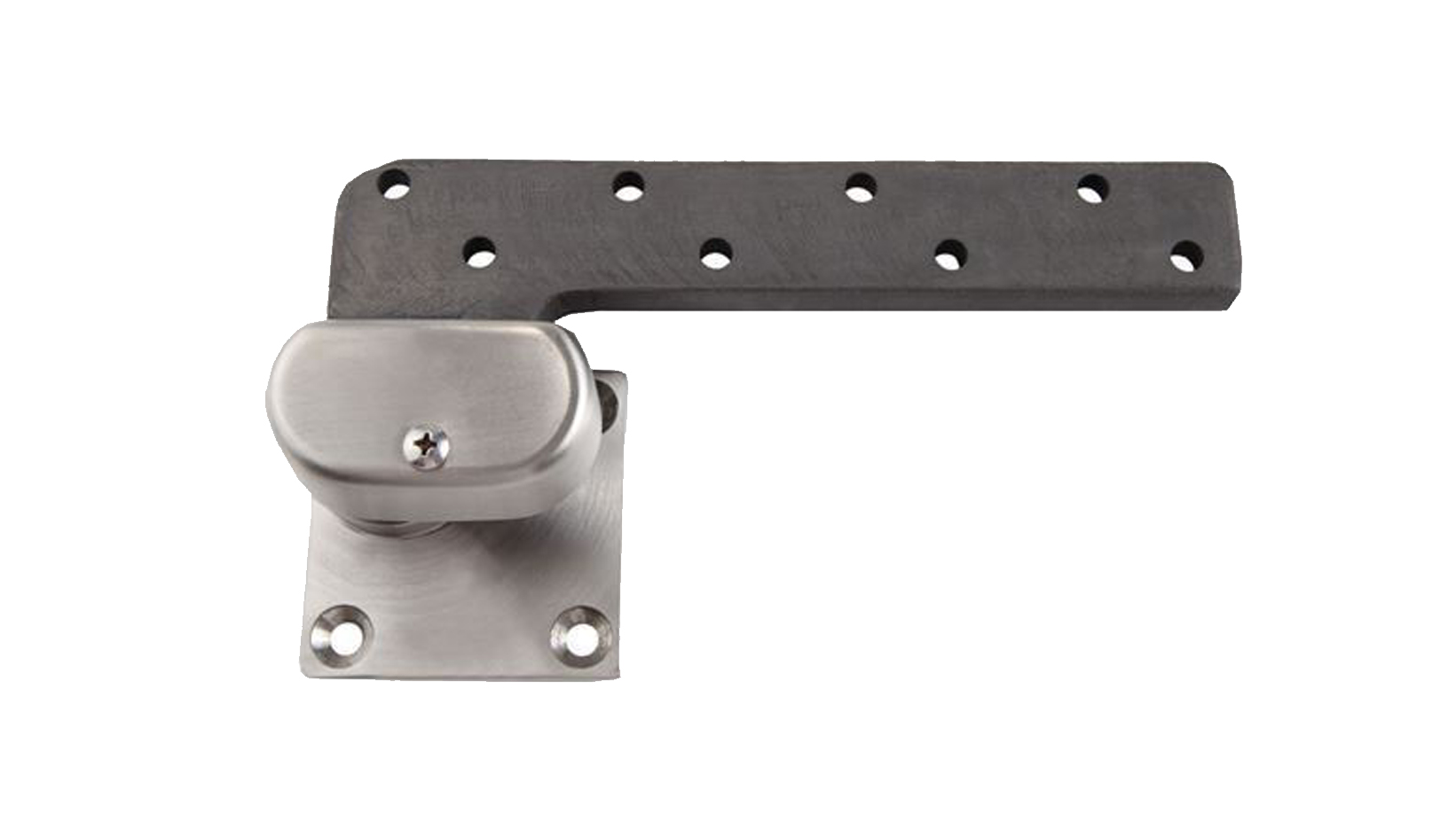

ABH L0147B-LH 3/4" Offset Bottom Pivot - Heavy Duty, Left Hand, Lead Lined, Bright BronzeThe ABH L0147B-LH 3/4" Offset Bottom Pivot is engineered specifically for lead-lined doors, making it an essential component in environments requiring radiation shielding, such as medical facilities and laboratories. This heavy-duty bottom pivot is designed to support doors weighing up to 800 pounds, ensuring reliable performance and stability in high-demand applications.
Constructed from durable stainless steel and finished in a bright bronze, the L0147B-LH not only provides aesthetic appeal but also ensures longevity and resistance to wear. This pivot is UL Listed for use on 3-hour fire door assemblies, making it compliant with stringent safety standards and suitable for various commercial settings.
Installation is straightforward, as the pivot mounts directly on the finished floor and mortises into the bottom of the door. The 3/4" offset design accommodates left-hand configurations, and the heavy-duty bearings enhance smooth operation, even under heavy loads. The ABH L0147B-LH is compatible with other components in the L0147 pivot set, allowing for cohesive system integration.
For architects, contractors, and facility managers seeking reliable, compliant, and robust door hardware, the L0147B-LH is a superior choice that meets both functional and aesthetic requirements.
3/4" Offset Bottom Pivot - Heavy Duty - Lead Lined, Bottom Pivot Only, For use on Lead-lined Doors, 3/4" Offset, Left Hand, Bright Bronze
Heavy duty lead lined bottom pivot with 3/4" offset for doors up to 800 pounds, designed for radiation shielding applications with floor mounting. Included in pivot set L0147.
L0147B-LH: Bottom Pivot Only, For use on Lead-lined Doors, 3/4" Offset, Left Hand
Key Features
- Lead Lined Construction
- Heavy Duty Design
- UL Listed
- Handed - specify LH or RH
Specifications
| Model | L0147B-LH |
|---|
| Finish | Bright Bronze |
|---|
| Finish Code | US9 |
|---|
| Handing | Left Hand |
|---|
| Family | L0147B-RH / L0147B-LH |
|---|
| Material | Stainless steel |
|---|
| Finishes | US3, US4, US9, US10, US10B, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, Custom Finishes Available |
|---|
| Load Capacity | 800 lbs. maximum door load |
|---|
| Door Width | 48" maximum |
|---|
| Door Thickness | 1-3/4" lead lined doors |
|---|
| Weight | 4 lbs. average per unit |
|---|
| Mounting Type | Mounts on finished floor, mortises into bottom of door |
|---|
| Bearing Type | Heavy duty bearings |
|---|
| Fire Rating | UL Listed for Use on 3-Hour Fire Door Assemblies |
|---|
For use with 3/4" offset lead lined top pivot and intermediate pivots.
Features
- Lead Lined Construction
- UL Listed
- Heavy Duty Design
- Handed - specify LH or RH
Attributes
BRAND_ NAME: ABH
Bearing Type: Heavy duty bearings
Door Thickness: 1-3/4" lead lined doors
Door Width: 48" maximum
Family: L0147B-RH / L0147B-LH
Finish: Bright Bronze
Finish Code: US9
Finishes: US3, US4, US9, US10, US10B, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, Custom Finishes Available
Fire Rating: UL Listed for Use on 3-Hour Fire Door Assemblies
Handing: Left Hand
Load Capacity: 800 lbs. maximum door load
Material: Stainless steel
Model: L0147B-LH
Mounting Type: Mounts on finished floor, mortises into bottom of door
Weight: 4 lbs. average per unit
