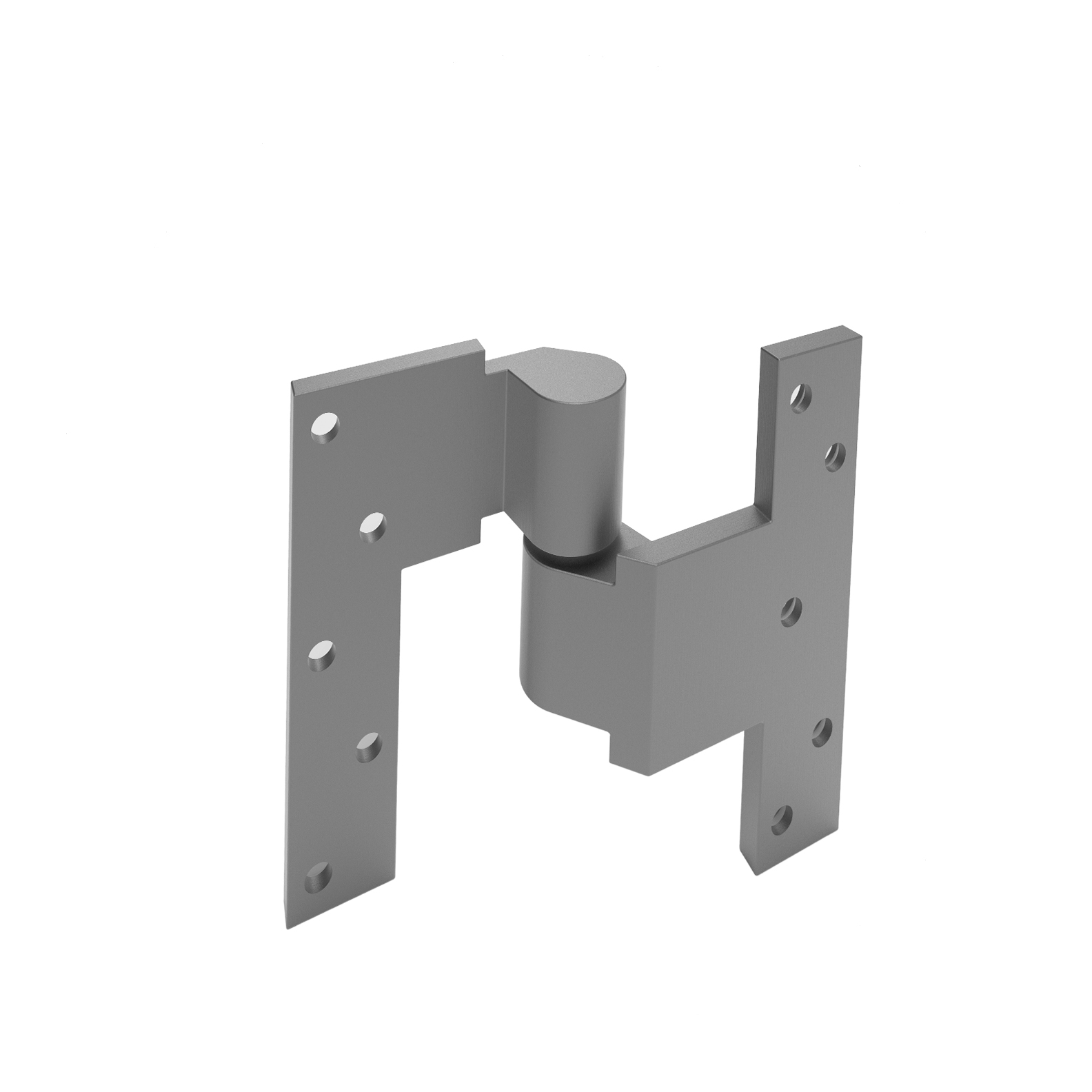

ABH L019-1.5-LH 1-1/2" Offset Pivot - Intermediate Pivot, Lead Lined Doors, Left Hand, Satin BrassThe ABH L019-1.5-LH 1-1/2" Offset Intermediate Pivot is specifically designed for lead-lined doors, providing essential functionality in environments that require enhanced radiation protection. Constructed from durable stainless steel, this standard duty pivot is ideal for doors measuring 60 inches tall or more, ensuring proper alignment with its mortise installation into both the side jamb and hinge edge of the door.
With a left-hand configuration and a satin brass finish (US4), the L019-1.5-LH not only meets aesthetic requirements but also complies with NFPA 80 regulations, which mandate the inclusion of an intermediate pivot for fire doors in this height range. Each additional 30 inches in door height requires another pivot, reinforcing structural integrity and operational reliability.
This pivot features heavy-duty stainless steel needle bearings, ensuring smooth operation even in high-traffic areas. Weighing approximately 4 lbs., it is built for longevity and consistent performance. The L019-1.5-LH is UL Listed for use on 3-hour fire door assemblies, making it an excellent choice for facilities prioritizing safety and compliance.
Sold separately for pivot sets, this intermediate pivot is a reliable solution for your lead-lined door projects.
1-1/2" Offset Pivot - Intermediate Pivot - Lead Lined Doors, Intermediate Pivot Only, For use on Lead-lined Doors, 1-1/2" Offset, Left Hand, Satin Brass
Standard Duty Lead Lined Intermediate for doors 60" and taller, mortising into side jamb and hinge edge of door to maintain proper door alignment in 1-1/2" offset pivot systems.NFPA 80, Section 3-3.8 requires some fire doors 60"-90" tall to have one intermediate pivot, with another intermediate for each additional 30" in height.
L019-1.5-LH: Intermediate Pivot Only, For use on Lead-lined Doors, 1-1/2" Offset, Left Hand
Key Features
- Standard Duty
- Mortise Installation
- Handed - specify LH or RH
- Required by NFPA 80 for fire doors 60" and taller
Specifications
| Model | L019-1.5-LH |
|---|
| Finish | Satin Brass |
|---|
| Finish Code | US4 |
|---|
| Handing | Left Hand |
|---|
| Family | L019-1.5-RH / L019-1.5-LH |
|---|
| Material | Stainless steel |
|---|
| Finishes | US3, US4, US9, US10, US10B, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, Custom Finishes Available |
|---|
| Mounting Type | Mortises into side jamb and hinge edge of door |
|---|
| Bearing Type | Heavy duty stainless steel needle bearings |
|---|
| Weight | 4 lbs. average per unit |
|---|
| Door Height | 60" tall (one pivot required), additional pivot per 30" height |
|---|
| Fire Rating | UL Listed for Use on 3-Hour Fire Door Assemblies |
|---|
Sold separately for pivot sets
Features
- Required by NFPA 80 for fire doors 60" and taller
- Standard Duty
- Mortise Installation
- Handed - specify LH or RH
Attributes
BRAND_ NAME: ABH
Bearing Type: Heavy duty stainless steel needle bearings
Door Height: 60" tall (one pivot required), additional pivot per 30" height
Family: L019-1.5-RH / L019-1.5-LH
Finish: Satin Brass
Finish Code: US4
Finishes: US3, US4, US9, US10, US10B, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, Custom Finishes Available
Fire Rating: UL Listed for Use on 3-Hour Fire Door Assemblies
Handing: Left Hand
Material: Stainless steel
Model: L019-1.5-LH
Mounting Type: Mortises into side jamb and hinge edge of door
Weight: 4 lbs. average per unit
