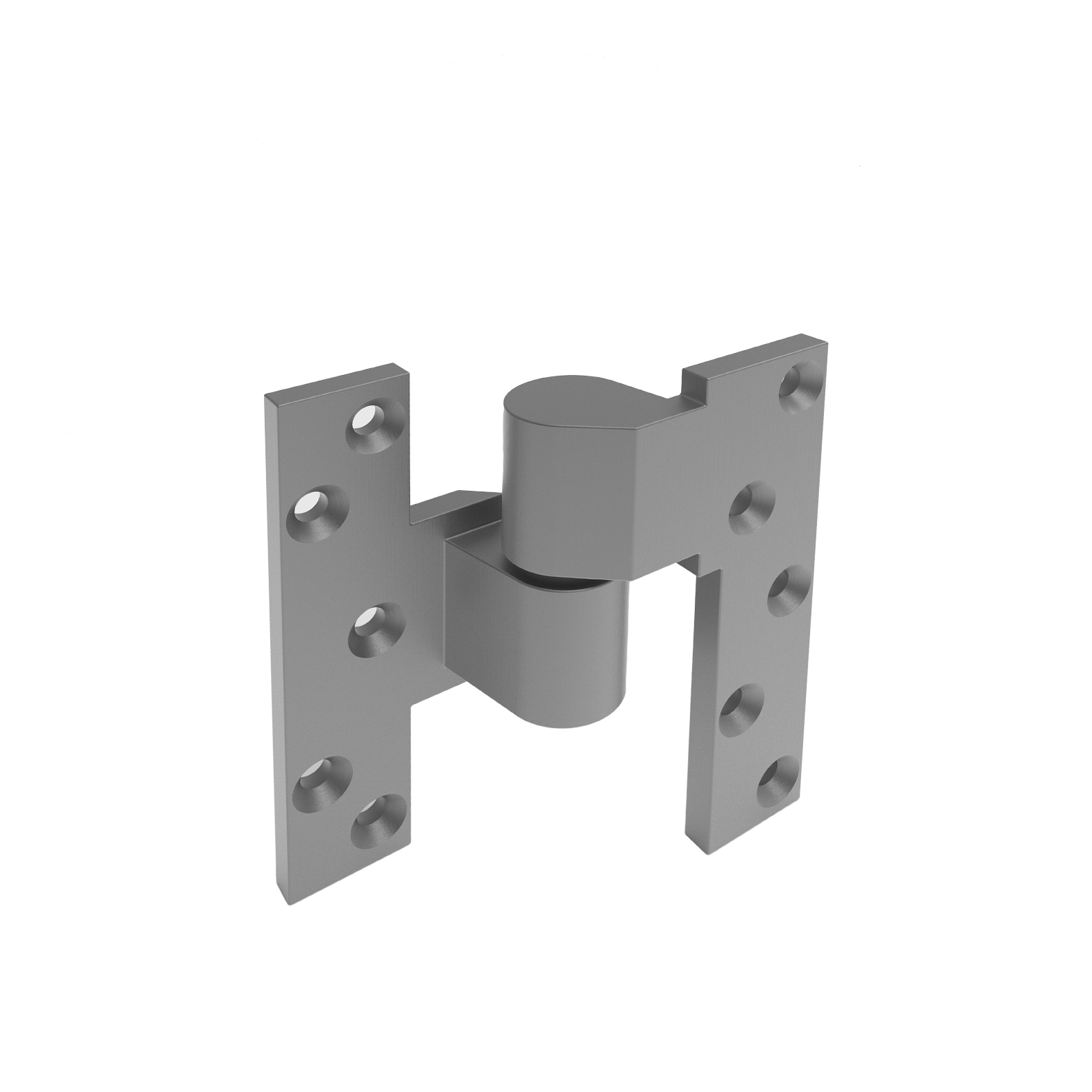

ABH L019-LH 3/4" Offset Lead Lined Intermediate Pivot, Left Hand, S3 (BZPC)The ABH L019-LH 3/4" Offset Lead Lined Intermediate Pivot is engineered specifically for 1-3/4" lead lined doors, providing essential support and alignment in radiation shielding applications. This heavy-duty pivot is designed for left-handed installations and is an integral component for lead-lined pivot sets L0117 and L0147, ensuring a secure and reliable door operation.
Constructed from durable stainless steel, the L019-LH features heavy-duty stainless steel needle bearings, offering smooth functionality and longevity even in high-use environments. The pivot is UL Listed for use on 3-hour fire door assemblies, ensuring compliance with stringent safety standards.
With a 3/4" offset, this intermediate pivot is expertly crafted to meet the unique needs of lead-lined doors, and it is mortised into the side jamb and hinge edge of the door for seamless integration. Available in a variety of finishes including S3 (BZPC), it offers versatility to match your project’s aesthetic requirements.
For architects, contractors, and facility managers seeking reliable and compliant door hardware solutions, the ABH L019-LH pivot stands out as a premium choice, combining functionality, durability, and safety in one robust design.
3/4" Offset - Lead Lined - Intermediate Pivot, Intermediate Pivot Only, For use on Lead-lined Doors, 3/4" Offset, Left Hand, S3 (BZPC)
Lead lined intermediate pivot designed for 1-3/4" lead lined doors with 3/4" offset, providing proper alignment support for radiation shielding applications. Required separately for lead lined pivot sets L0117 and L0147.
L019-LH: Intermediate Pivot Only, For use on Lead-lined Doors, 3/4" Offset, Left Hand
Key Features
- Heavy Duty
- Lead Lined Construction
- Stainless Steel Bearings
- UL Listed
Specifications
| Model | L019-LH |
|---|
| Finish | S3 (BZPC) |
|---|
| Finish Code | S3 |
|---|
| Handing | Left Hand |
|---|
| Family | L019-RH / L019-LH |
|---|
| Material | Stainless steel |
|---|
| Finishes | US3, US4, US9, US10, US10B, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, Custom Finishes Available |
|---|
| Weight | 6 lbs. average per unit |
|---|
| Door Thickness | 1-3/4" lead lined doors |
|---|
| Mounting Type | Mortises into side jamb and hinge edge of door |
|---|
| Door Height | 60" tall (one pivot required), additional pivot per 30" height |
|---|
| Bearing Type | Heavy duty stainless steel needle bearings |
|---|
| Fire Rating | UL Listed for Use on 3-Hour Fire Door Assemblies |
|---|
Handed - specify LH or RH.
Required to order separately for lead lined pivot sets.
Features
- Lead Lined Construction
- UL Listed
- Heavy Duty
- Stainless Steel Bearings
Attributes
BRAND_ NAME: ABH
Bearing Type: Heavy duty stainless steel needle bearings
Door Height: 60" tall (one pivot required), additional pivot per 30" height
Door Thickness: 1-3/4" lead lined doors
Family: L019-RH / L019-LH
Finish: S3 (BZPC)
Finish Code: S3
Finishes: US3, US4, US9, US10, US10B, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, Custom Finishes Available
Fire Rating: UL Listed for Use on 3-Hour Fire Door Assemblies
Handing: Left Hand
Material: Stainless steel
Model: L019-LH
Mounting Type: Mortises into side jamb and hinge edge of door
Weight: 6 lbs. average per unit
