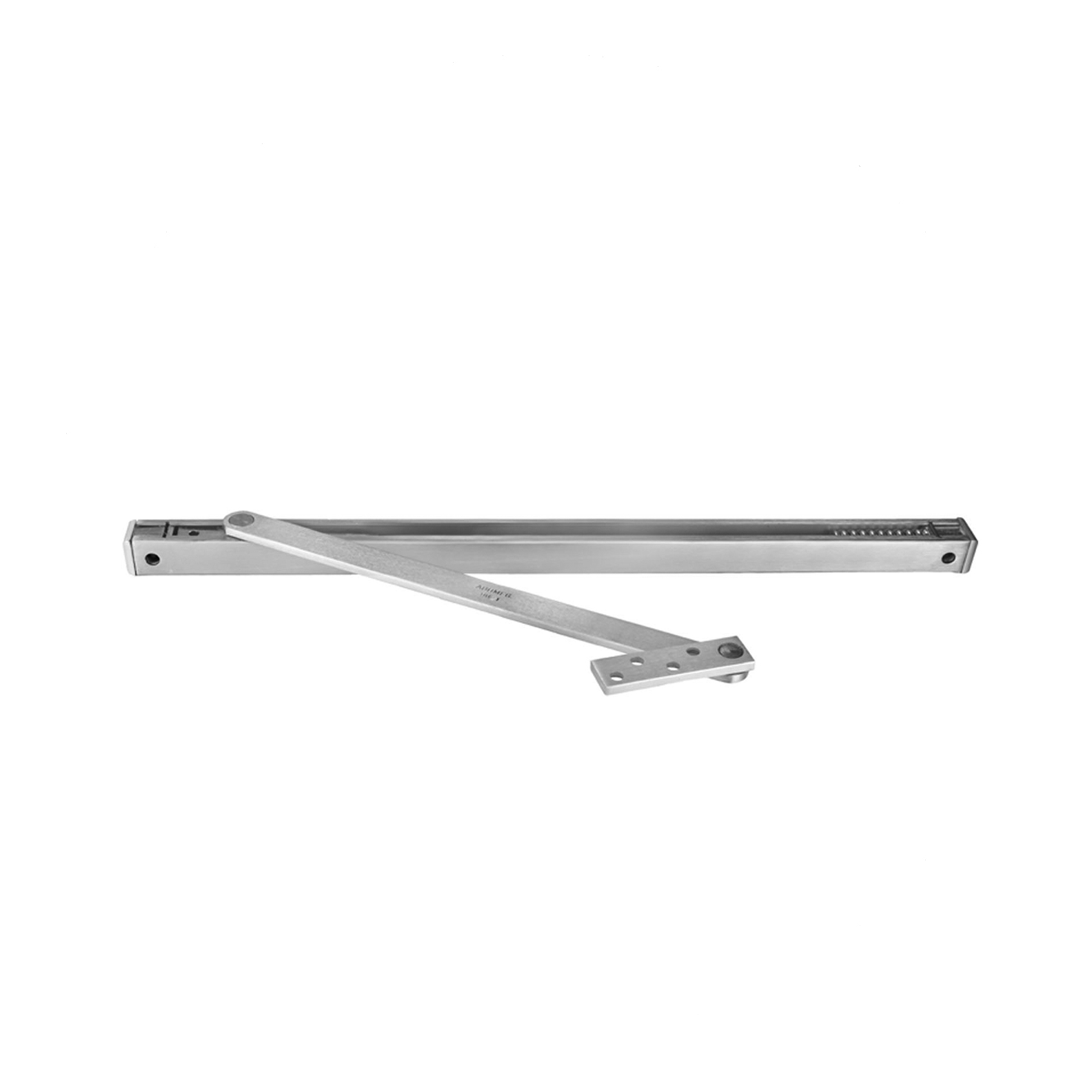

ABH N9038 Heavy Duty Surface Mount Overhead Holder Stop - Friction, Satin BronzeThe ABH N9038 Surface Mount Overhead Holder Stop is designed for demanding environments, providing essential stop, hold-open, and friction functions for heavy-weight door applications. Engineered with a heavy-duty construction, this surface-mounted device excels in frequent traffic scenarios, ensuring reliable performance and durability.
The N9038 features a shock-absorbing spring that delivers a 3° to 5° cushioning effect before reaching a dead stop, enhancing safety and minimizing wear on both the door and the hardware. With a non-handed design, this overhead stop is versatile and easy to install, accommodating a range of door sizes from 1-3/4" to 2-1/4" thick, with sex bolts included for effortless fastening.
Crafted from high-quality stainless steel and finished in a sophisticated satin bronze (US10), the N9038 not only performs well but also complements a variety of architectural styles. It is UL Listed, making it suitable for 20-minute wood and 90-minute hollow metal door assemblies when utilizing the stop function. The adjustable operating range allows for openings between 85° to 110° in 5° increments, ensuring precise control for optimal functionality.
Ideal for both interior and exterior applications, the ABH N9038 is the perfect solution for architects, contractors, and facility managers seeking reliability and performance in commercial door hardware.
Surface Mount Overhead Holder and Stop - Heavy Duty, Surface Mounted Heavy Duty - Friction, Satin Bronze
Surface mount heavy duty overhead stop and holder providing stop, hold-open and friction functions for frequent traffic and heavy weight door applications.
N9038: Surface Mounted Heavy Duty - Friction
Key Features
- Heavy Duty Construction
- Surface Mount Design
- Single Acting
- Adjustable
- Shock Absorbing Spring
- Non-Handed Design
Specifications
| Model | N9038 |
|---|
| Finish | Satin Bronze |
|---|
| Finish Code | US10 |
|---|
| Family | 9000 / N9000 |
|---|
| Material | Stainless Steel |
|---|
| Finishes | US3, US4, US9, US10, US10B, US26, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, Custom Finishes Available |
|---|
| Functions Available | Stop, hold-open, friction |
|---|
| Shock Absorption | 3° to 5° cushion before dead-stop |
|---|
| Operating Range | 85° to 110° opening (5° increments) |
|---|
| Weight | 5 lbs. average per unit |
|---|
| Fasteners | Sex bolts for 1-3/4" to 2-1/4" doors (included) |
|---|
| Fire Rating | UL Listed for 20-minute wood and 90-minute hollow metal door assemblies (stop function only). |
|---|
For interior or exterior use on frequent traffic applications.
Features
- Single Acting
- Surface Mount Design
- Heavy Duty Construction
- Shock Absorbing Spring
- Adjustable
- Non-Handed Design
Attributes
BRAND_ NAME: ABH
Family: 9000 / N9000
Fasteners: Sex bolts for 1-3/4" to 2-1/4" doors (included)
Finish: Satin Bronze
Finish Code: US10
Finishes: US3, US4, US9, US10, US10B, US26, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, Custom Finishes Available
Fire Rating: UL Listed for 20-minute wood and 90-minute hollow metal door assemblies (stop function only).
Functions Available: Stop, hold-open, friction
Material: Stainless Steel
Model: N9038
Operating Range: 85° to 110° opening (5° increments)
Shock Absorption: 3° to 5° cushion before dead-stop
Weight: 5 lbs. average per unit
