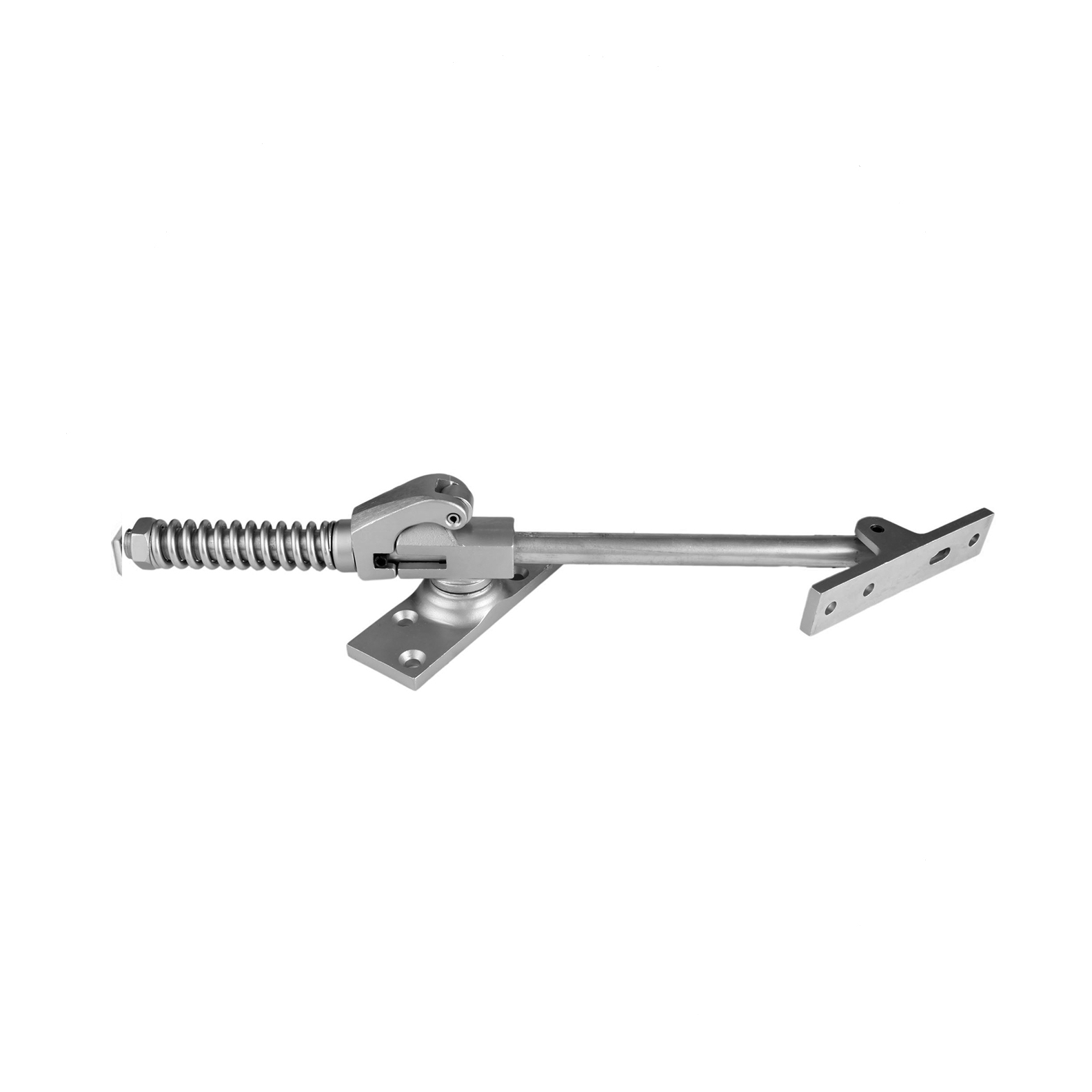

ABH NHD7022S Surface Mount Overhead Stop - Extra Heavy Duty, S5 (DBPC)Introducing the ABH NHD7022S Surface Mount Overhead Holder Stop-an extra heavy-duty solution specifically engineered for high-security environments such as correctional institutions and bank vaults. This robust overhead stop and holder is designed to withstand the rigors of demanding applications, ensuring maximum durability and operational reliability.
Constructed from high-quality steel, the NHD7022S features a non-handed design that simplifies installation and offers flexibility for various door orientations. Rated for bank vault doors, this extra heavy-duty stop accommodates single-acting doors and operates effectively within an opening range of 85° to 110° in 5° increments. The integrated shock absorption mechanism provides a 3° to 5° cushion before reaching a dead stop, enhancing safety and performance.
With a UL listing for 20-minute wood and 90-minute hollow metal door assemblies, this overhead holder stop complies with strict fire safety standards, making it a reliable choice for critical applications. Available in a sleek S5 (DBPC) finish, the NHD7022S not only performs excellently but also blends seamlessly into various architectural aesthetics. With its included sex bolts for doors ranging from 1-3/4" to 2", this product is ready to meet the needs of contractors, architects, and facility managers alike.
Surface Mount Overhead Holder and Stop - Extra Heavy Duty, Surface Mounted Extra Heavy Duty - Stop, S5 (DBPC)
Surface mount extra heavy duty overhead stop and holder designed for correctional institutions and bank vault door applications requiring maximum durability.
NHD7022S: Surface Mounted Extra Heavy Duty - Stop
Key Features
- Extra Heavy Duty Construction
- Correctional Applications
- Bank Vault Door Rated
- Non-Handed Design
Specifications
| Model | NHD7022S |
|---|
| Finish | S5 (DBPC) |
|---|
| Finish Code | S5 |
|---|
| Family | HD7000 / NHD7000 |
|---|
| Material | Steel |
|---|
| Finishes | US3, US4, US9, US10, US10B, US26, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, Custom Finishes Available |
|---|
| Functions Available | Stop, hold-open |
|---|
| Operating Range | 85° to 110° opening (5° increments) |
|---|
| Shock Absorption | 3° to 5° cushion before dead-stop |
|---|
| Weight | 10 lbs. average per unit |
|---|
| Fasteners | Sex bolts for 1-3/4" to 2" doors (included) |
|---|
| Fire Rating | UL Listed for 20-minute wood and 90-minute hollow metal door assemblies (stop function only). |
|---|
Single acting doors only. For correctional institutions and high-security applications.
Features
- Correctional Applications
- Extra Heavy Duty Construction
- Bank Vault Door Rated
- Non-Handed Design
Attributes
BRAND_ NAME: ABH
Family: HD7000 / NHD7000
Fasteners: Sex bolts for 1-3/4" to 2" doors (included)
Finish: S5 (DBPC)
Finish Code: S5
Finishes: US3, US4, US9, US10, US10B, US26, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, Custom Finishes Available
Fire Rating: UL Listed for 20-minute wood and 90-minute hollow metal door assemblies (stop function only).
Functions Available: Stop, hold-open
Material: Steel
Model: NHD7022S
Operating Range: 85° to 110° opening (5° increments)
Shock Absorption: 3° to 5° cushion before dead-stop
Weight: 10 lbs. average per unit
