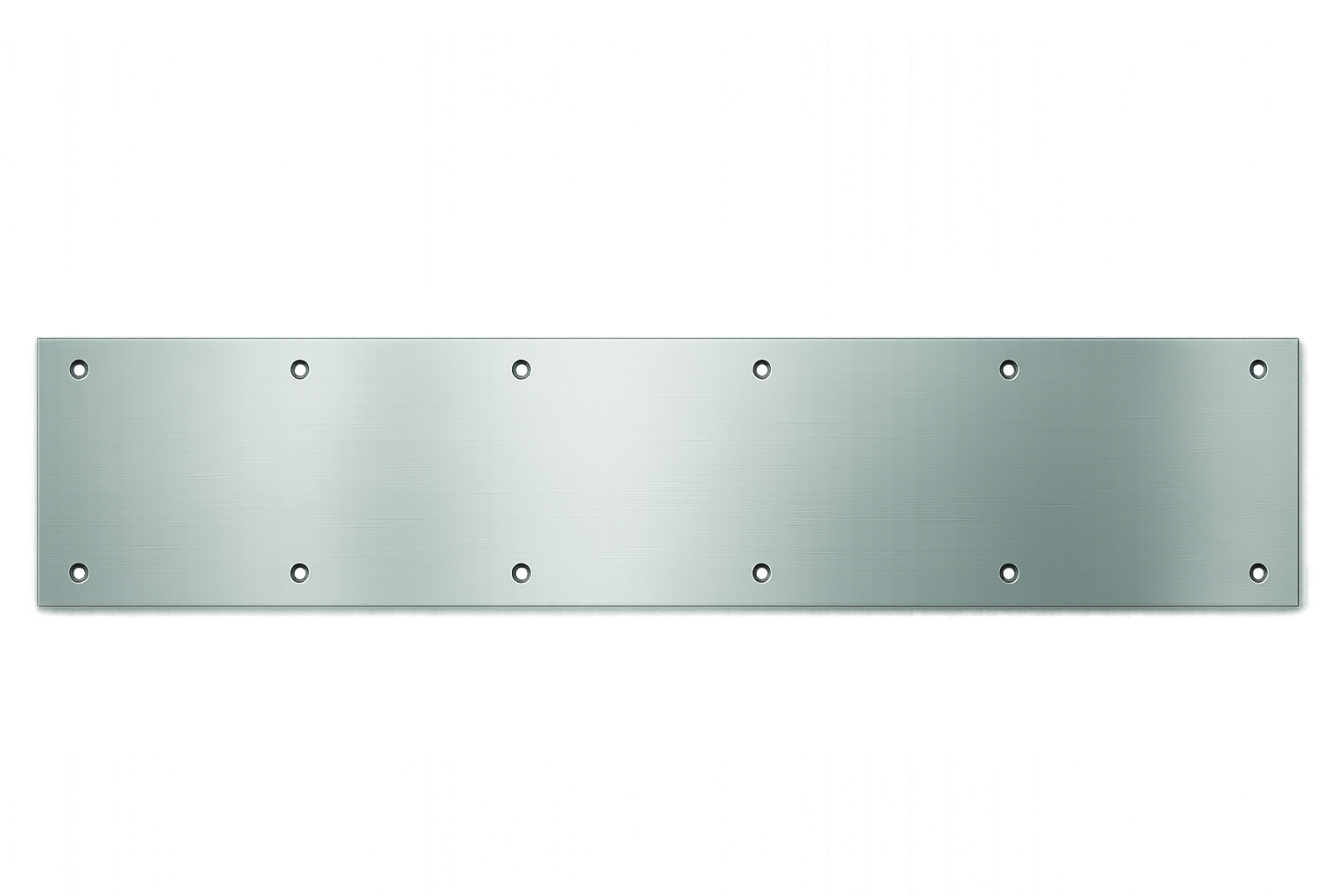

ABH PP0062 Heavy Duty Kick Plate, .062" Thick, 8"H x 46"W, Bright Stainless SteelThe ABH PP0062 Heavy Duty Mop/Kick/Armor Protection Plate is expertly crafted to provide robust protection for commercial doors, ensuring longevity and maintaining a pristine architectural aesthetic. Measuring 8 inches in height and 46 inches in width, this kick plate is made from .062" thick bright stainless steel, which offers both durability and a modern finish suitable for high-traffic areas.
Designed specifically for environments that experience significant wear and tear, the PP0062 kick plate effectively guards against scuffing and impact caused by foot traffic, carts, and routine use, while mop plates protect the lower portions from moisture and cleaning equipment. For areas prone to heavy abuse, armor plates can be employed to extend protection higher up on the door.
This product is UL Listed for use on fire-rated doors, ensuring compliance with safety regulations. Available in a variety of widths from 22" to 46", and an array of finishes, the PP0062 can be tailored to suit your project’s specific needs. Installation options include screw mount or self-adhesive methods, providing flexibility for different applications. By investing in ABH protection plates, architects, contractors, and facility managers can reduce maintenance costs and enhance the durability of their door systems.
Heavy Duty Mop / Kick / Armor Protection Plates, .062" Thick, 8"H X 46"W Kick Plate .062", Bright Stainless Steel
ABH door protection plates are designed to protect doors from everyday wear, impact, and abuse while maintaining a clean architectural appearance. Available in a range of sizes and materials, mop, kick, and armor plates provide targeted protection for high‑traffic commercial environments.
Mop Plates protect the lower portion of the door from moisture and cleaning equipment during routine maintenance.
Kick Plates guard against scuffing and impact from foot traffic, carts, and general use.
Armor Plates extend protection higher on the door for areas subject to heavy abuse from carts, gurneys, or material handling.
Together, ABH protection plates help extend door life, reduce maintenance costs, and preserve the appearance of interior and exterior openings across commercial, institutional, and industrial applications.
PP0062: 8"H X 46"W Kick Plate .062"
Key Features
- See Cut sheet for All Heavy Duty Sizes
- Variable Width Sizing
- UL Listed for use on Fire Rated Doors - Stainless Steel, Up to and including 48" x 48"
Specifications
| Model | PP0062 |
|---|
| Finish | Bright Stainless Steel |
|---|
| Finish Code | US32 |
|---|
| Length (in) | 46 |
|---|
| Width (in) | 8 |
|---|
| Family | PP0062 |
|---|
| Material | Stainless Steel |
|---|
| Finishes | US3, US4, US5, US10, US10B, US15, US26, US26D, US28, US32, US32D, US32316, US32D316, Custom Finishes Available |
|---|
| Available Widths | 22", 28", 34", 40", 46" |
|---|
| Mop Plate Sizes | 4" - 6" Height |
|---|
| Kick Plate Sizes | 8" - 16" Height |
|---|
| Armor Plate Sizes | 34" Height |
|---|
| Mounting Options | Screw Mount or Self-Adhesive |
|---|
| Fasteners | #6 x 5/8" Oval Head SMS (Standard) / #6 x 3/4" Self-Drilling / Thread Forming Machine Screw (SDS) / #6 x 3/4" Pin-In-Torx Security Fasteners (SEC) |
|---|
Features
- See Cut sheet for All Heavy Duty Sizes
- UL Listed for use on Fire Rated Doors - Stainless Steel, Up to and including 48" x 48"
- Variable Width Sizing
Attributes
Armor Plate Sizes: 34" Height
Available Widths: 22", 28", 34", 40", 46"
BRAND_ NAME: ABH
Family: PP0062
Fasteners: #6 x 5/8" Oval Head SMS (Standard) / #6 x 3/4" Self-Drilling / Thread Forming Machine Screw (SDS) / #6 x 3/4" Pin-In-Torx Security Fasteners (SEC)
Finish: Bright Stainless Steel
Finish Code: US32
Finishes: US3, US4, US5, US10, US10B, US15, US26, US26D, US28, US32, US32D, US32316, US32D316, Custom Finishes Available
Kick Plate Sizes: 8" - 16" Height
Length (in): 46
Material: Stainless Steel
Model: PP0062
Mop Plate Sizes: 4" - 6" Height
Mounting Options: Screw Mount or Self-Adhesive
Width (in): 8
