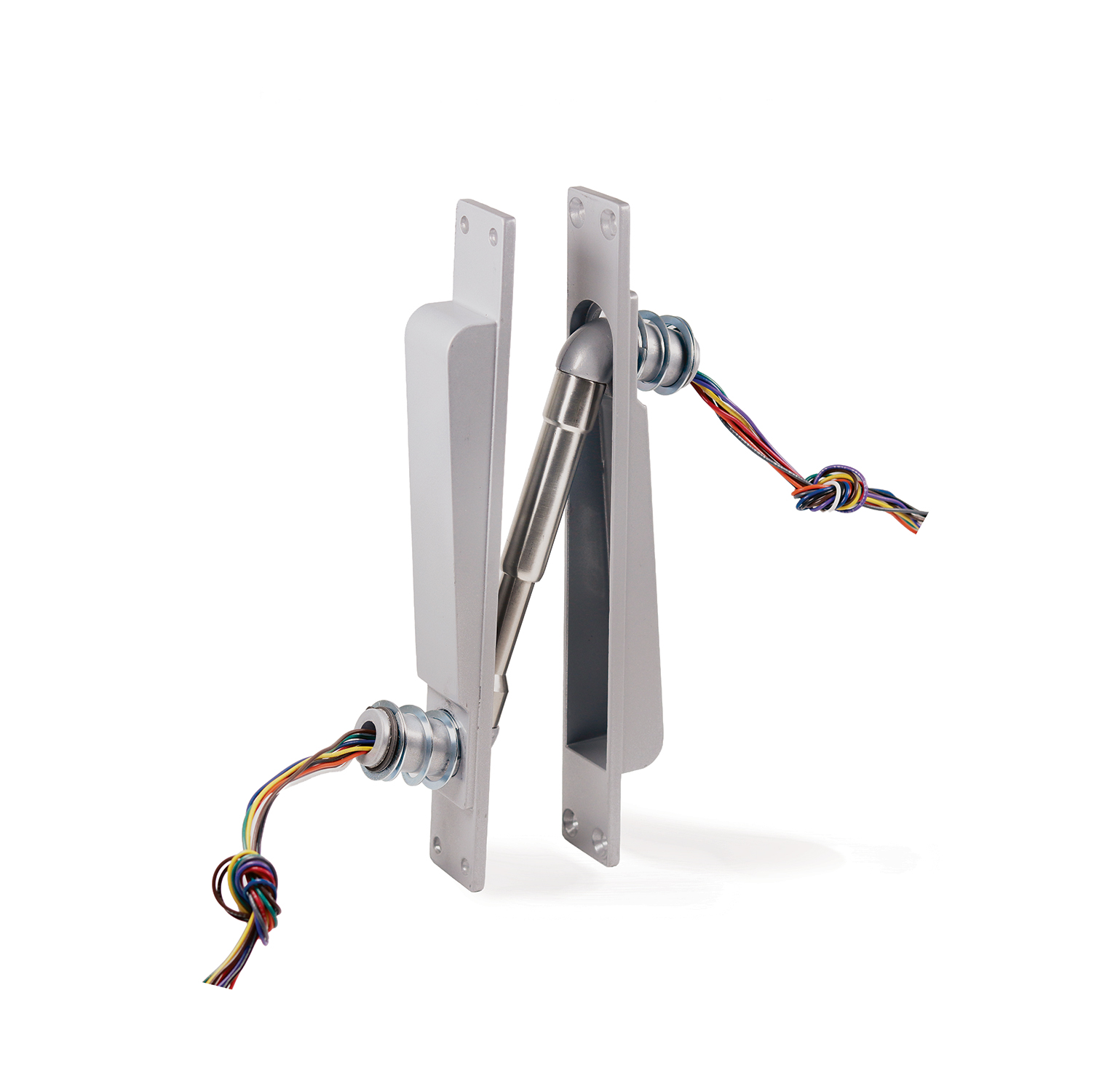

ABH PT1000 Power Transfer (10) 24 AWG Wires, S2 (BSPC)The ABH PT1000 Power Transfer is expertly designed for seamless electrical and data transfer from frame to door, featuring (10) 24 AWG wires that accommodate 24 VDC and 1A applications. This concealed power transfer device is ideal for high-traffic environments, ensuring reliable performance and durability. Its all-metal construction guarantees longevity, while its completely concealed installation maintains aesthetic integrity.
Engineered to fit 1-3/4" door thicknesses, the PT1000 is compatible with cam lift hinges (up to 1/2" lift), butt hinges up to 6", and up to 3/4" offset pivots, making it versatile for various door hardware configurations. The unit is individually packaged and includes fasteners suitable for both wood and metal doors or frames.
With UL/ULC listing, the PT1000 is suitable for use on fire door assemblies, ensuring compliance with strict safety standards. The product is available in a variety of finishes, including S2 (BSPC), and custom finishes can be requested to suit specific design requirements. Backed by a lifetime warranty, the PT1000 Power Transfer offers reliability and peace of mind for architects, contractors, and facility managers alike.
Power Transfer (10) 24 AWG Wires, (10) 24 AWG Wires, S2 (BSPC)
Concealed power transfer providing electrical power and data transfer from frame to door with (10) 24 AWG wires rated for 24 VDC, 1A applications.
PT1000: (10) 24 AWG Wires
Key Features
- All Metal Construction
- Completely Concealed
- High Traffic Durability
- Individually Packaged
- Includes Fasteners for Wood or Metal Doors/Frames
- UL/ULC Listed for Use on Fire Door Assemblies
- Lifetime Warranty
Specifications
| Model | PT1000 |
|---|
| Finish | S2 (BSPC) |
|---|
| Finish Code | S2 |
|---|
| Family | PT1000 |
|---|
| Finishes | US28, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, 314, 315, Custom Finishes Available |
|---|
| Wire Specification | (10) 24 AWG wires |
|---|
| Maximum Rating | 24 VDC, 1A |
|---|
| Door Thickness | 1-3/4" door thickness |
|---|
| Weight | 2.0 lbs. average per unit |
|---|
| Installation | Mortises into door and frame edges, completely concealed when closed |
|---|
| Hinge Compatibility | Cam lift hinges (up to 1/2" lift), butt hinges up to 6", up to 3/4" offset pivots |
|---|
| Restrictions | Not for use with swing clear hinges, pocket pivots, butt hinges larger than 6", 1-1/2" offset pivots, or center hung doors |
|---|
Patent pending design matches competitor's door and frame prep for universal compatibility.
Features
- Lifetime Warranty
- Includes Fasteners for Wood or Metal Doors/Frames
- High Traffic Durability
- Completely Concealed
- Individually Packaged
- All Metal Construction
- UL/ULC Listed for Use on Fire Door Assemblies
Attributes
BRAND_ NAME: ABH
Door Thickness: 1-3/4" door thickness
Family: PT1000
Finish: S2 (BSPC)
Finish Code: S2
Finishes: US28, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, 314, 315, Custom Finishes Available
Hinge Compatibility: Cam lift hinges (up to 1/2" lift), butt hinges up to 6", up to 3/4" offset pivots
Installation: Mortises into door and frame edges, completely concealed when closed
Maximum Rating: 24 VDC, 1A
Model: PT1000
Restrictions: Not for use with swing clear hinges, pocket pivots, butt hinges larger than 6", 1-1/2" offset pivots, or center hung doors
Weight: 2.0 lbs. average per unit
Wire Specification: (10) 24 AWG wires
