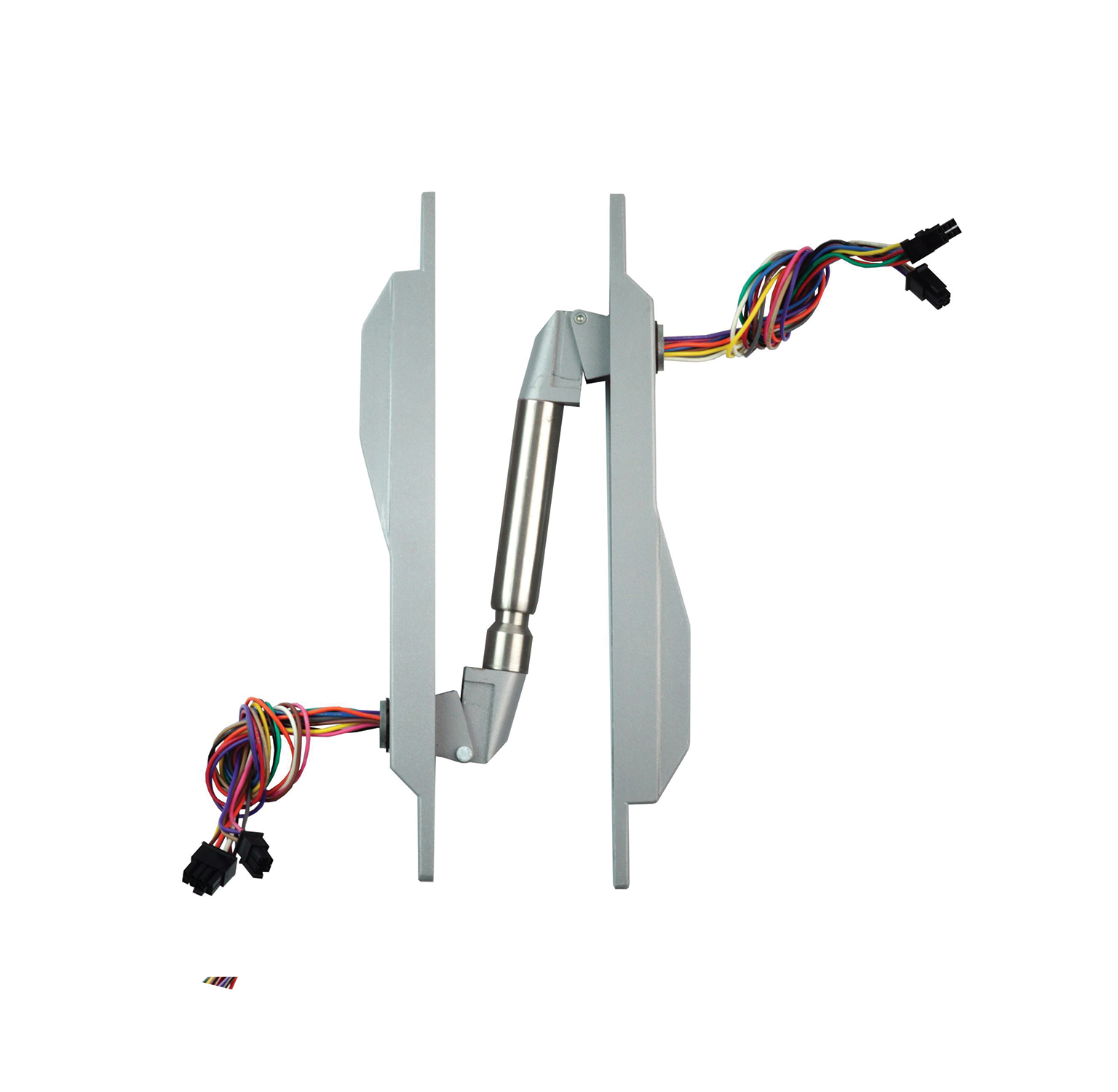

ABH PT1000EZ Power Transfer with EZ Connectors Molex Micro-Fit 3.0, (12) 24 AWG Wires, S5Introducing the ABH PT1000EZ Power Transfer with EZ Connectors, a highly efficient solution for concealed power and data transfer between frames and doors. Featuring twelve 24 AWG wires and Molex Micro-Fit 3.0 connectors, this product is designed to meet the demands of high-traffic environments while maintaining a sleek, unobtrusive profile.
Constructed from all-metal materials, the PT1000EZ ensures durability, making it suitable for various applications, including fire door assemblies, as it is UL/ULC listed. The EZ Connectors simplify installation and maintenance, providing reliable electrical connections without the need for extensive wiring practices. Mortised into the edges of doors and frames, this power transfer feature remains completely concealed when closed, enhancing both aesthetics and functionality.
With a maximum rating of 24 VDC and 1A, the PT1000EZ is compatible with a range of hinge types, including cam lift hinges and butt hinges up to 6 inches. This product also comes individually packaged with fasteners suitable for both wood and metal doors and frames, ensuring a straightforward installation process. Available in a variety of finishes, including S5 (DBPC), the PT1000EZ meets diverse design requirements while delivering consistent performance and reliability.
Power Transfer with EZ Connectors Molex Micro-Fit 3.0, (12) 24 AWG Wires with EZ Connectors Molex Micro-Fit 3.0, S5 (DBPC)
Concealed power transfer with EZ connectors providing electrical power and data transfer from frame to door with (12) 24 AWG wires and Molex Micro-Fit 3.0 connectors.
PT1000EZ: (12) 24 AWG Wires with EZ Connectors Molex® Micro-Fit 3.0
Key Features
- All Metal Construction
- Completely Concealed
- EZ Connect – Molex Micro-Fit 3.0
- High Traffic Durability
- Individually Packaged
- Includes Fasteners for Wood or Metal Doors/Frames
- UL/ULC Listed for Use on Fire Door Assemblies
- Lifetime Warranty
Specifications
| Model | PT1000EZ |
|---|
| Finish | S5 (DBPC) |
|---|
| Finish Code | S5 |
|---|
| Family | PT1000EZ |
|---|
| Finishes | US28, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, 314, 315, Custom Finishes Available |
|---|
| Connector Type | Molex Micro-Fit 3.0 EZ connectors |
|---|
| Maximum Rating | 24 VDC, 1A |
|---|
| Wire Specification | (12) 24 AWG wires |
|---|
| Door Thickness | 1-3/4" door thickness |
|---|
| Weight | 2.0 lbs. average per unit |
|---|
| Installation | Mortises into door and frame edges, completely concealed when closed |
|---|
| Hinge Compatibility | Cam lift hinges (up to 1/2" lift), butt hinges up to 6", up to 3/4" offset pivots |
|---|
| Restrictions | Not for use with swing clear hinges, pocket pivots, butt hinges larger than 6", 1-1/2" offset pivots, or center hung doors |
|---|
EZ connectors simplify installation and maintenance while providing reliable electrical connections.
Features
- Lifetime Warranty
- Includes Fasteners for Wood or Metal Doors/Frames
- High Traffic Durability
- Completely Concealed
- Individually Packaged
- EZ Connect – Molex Micro-Fit 3.0
- All Metal Construction
- UL/ULC Listed for Use on Fire Door Assemblies
Attributes
BRAND_ NAME: ABH
Connector Type: Molex Micro-Fit 3.0 EZ connectors
Door Thickness: 1-3/4" door thickness
Family: PT1000EZ
Finish: S5 (DBPC)
Finish Code: S5
Finishes: US28, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, 314, 315, Custom Finishes Available
Hinge Compatibility: Cam lift hinges (up to 1/2" lift), butt hinges up to 6", up to 3/4" offset pivots
Installation: Mortises into door and frame edges, completely concealed when closed
Maximum Rating: 24 VDC, 1A
Model: PT1000EZ
Restrictions: Not for use with swing clear hinges, pocket pivots, butt hinges larger than 6", 1-1/2" offset pivots, or center hung doors
Weight: 2.0 lbs. average per unit
Wire Specification: (12) 24 AWG wires
