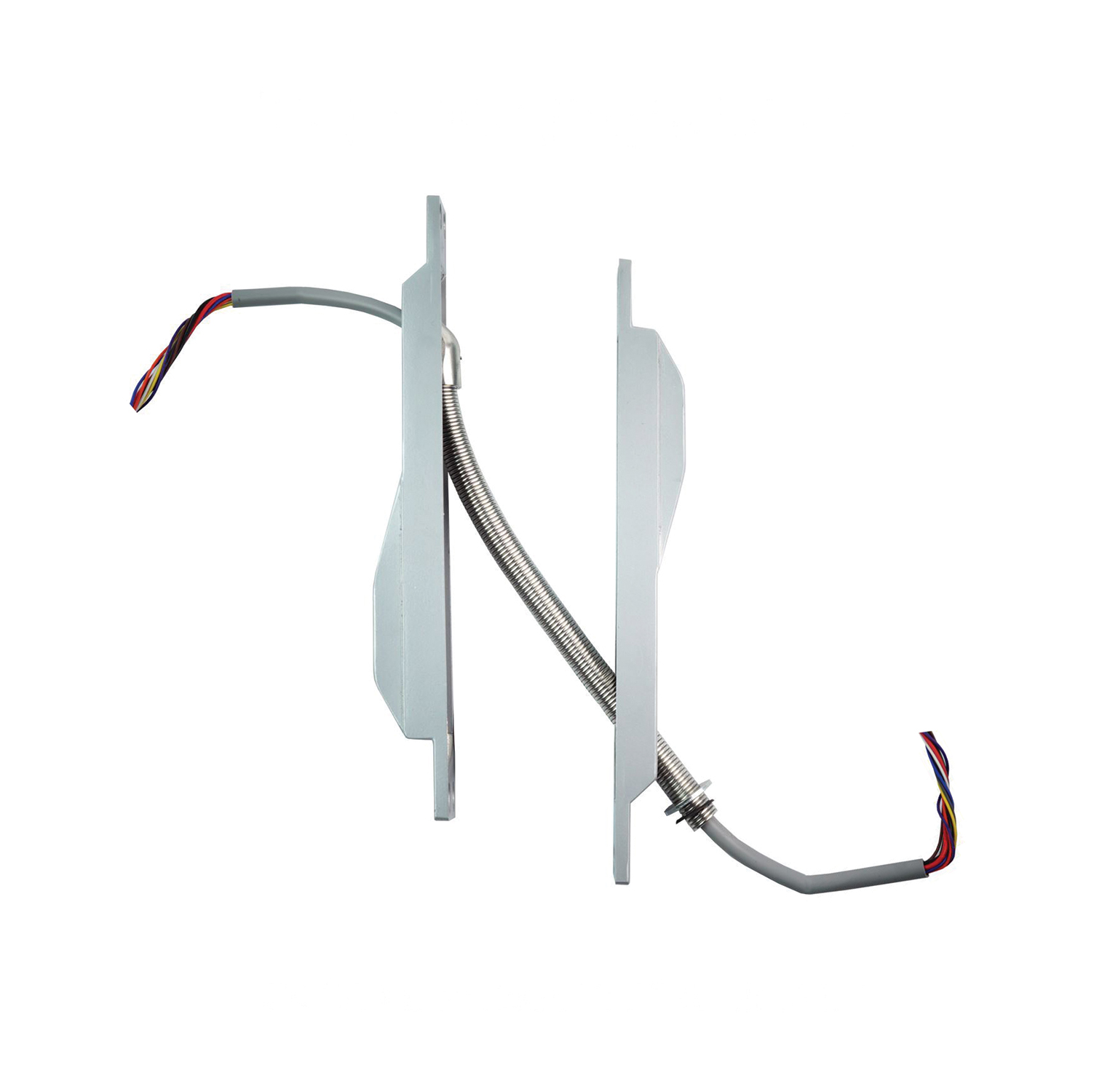

The ABH PT1000SC Power Transfer is engineered for swing clear applications, offering a reliable solution for electrical power and data transfer through (10) 24 AWG wires. This concealed power transfer system is designed to enhance the functionality of swing clear hinges, making it an ideal choice for high-traffic environments.
Constructed with all-metal components, the PT1000SC ensures durability and resilience under frequent use. It is completely concealed when the door is closed, maintaining a clean aesthetic while providing full operational capabilities. The unit is suitable for door thicknesses ranging from 1-3/4" to 2-1/4" and accommodates a door opening range of 90° to 180°.
Furthermore, the PT1000SC is UL/ULC listed for use on fire door assemblies, ensuring compliance with safety standards. Each unit is individually packaged and includes fasteners for both wood and metal doors/frames, simplifying installation. Available in a standard finish of 314, with additional custom finishes upon request, this power transfer device is backed by a lifetime warranty, ensuring reliability for years to come.
Power Transfer (10) 24 AWG Wires for Swing Clear Application, (10) 24 AWG Wires for Swing Clear Application, 314
Concealed power transfer specifically designed for swing clear applications providing electrical power and data transfer with (10) 24 AWG wires.
PT1000SC: (10) 24 AWG Wires for Swing Clear Application
Specialized design accommodates swing clear hinge requirements with enhanced door thickness range.
Features
BRAND_ NAME: ABH
Door Opening Range: 90° to 180°
Door Thickness: 1-3/4" to 2-1/4" door thickness
Family: PT1000SC
Finish: 314
Finish Code: 314
Finishes: US28, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, 314, 315, Custom Finishes Available
Installation: Mortises into door and frame edges, completely concealed when closed
Maximum Rating: 24 VDC, 1A
Model: PT1000SC
Wire Specification: (10) 24 AWG wires
