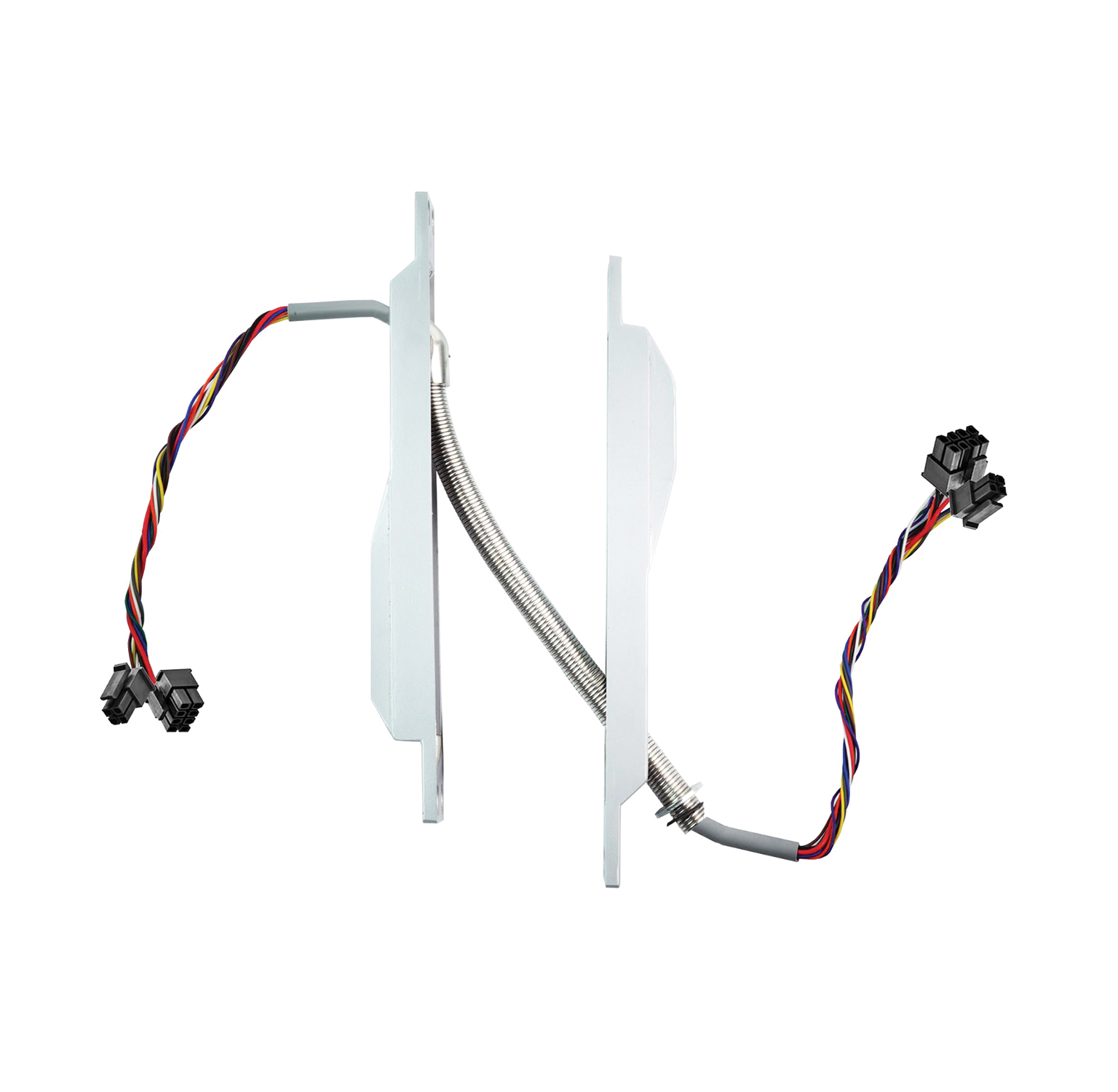

ABH PT1000SCEZ Power Transfer with EZ Connectors, (12) 24 AWG Wires for Swing Clear, S4 (BSPC)The ABH PT1000SCEZ Power Transfer is engineered specifically for swing clear applications, providing a robust and reliable solution for concealed power transfer. With (12) 24 AWG wires and Molex Micro-Fit 3.0 EZ connectors, this device ensures a seamless and efficient installation process. It is designed to accommodate door thicknesses ranging from 1-3/4" to 2-1/4", and supports door openings from 90° to 180°, making it a versatile choice for various settings.
Constructed with all-metal components, the PT1000SCEZ offers high traffic durability, ensuring longevity and performance even in demanding environments. Its completely concealed design allows for a clean aesthetic, while the individually packaged units come with fasteners suitable for both wood and metal doors or frames.
This power transfer unit is UL/ULC listed for use on fire door assemblies, providing peace of mind for compliance with safety standards. Available in the S4 (BSPC) finish and various other finishes, it can be customized to suit your project’s specific requirements. Backed by a lifetime warranty, the ABH PT1000SCEZ Power Transfer is an ideal choice for architects, contractors, and facility managers seeking a reliable, efficient power solution.
Power Transfer with EZ Connectors for Swing Clear Applications, (12) 24 AWG Wires for Swing Clear Application with EZ Connectors Molex Micro-Fit 3.0, S4 (BSPC)
Concealed power transfer with EZ connectors specifically designed for swing clear applications with (10) 24 AWG wires and Molex Micro-Fit 3.0 connectors.
PT1000SCEZ: (12) 24 AWG Wires for Swing Clear Application with EZ Connectors Molex® Micro-Fit 3.0
Key Features
- All Metal Construction
- Swing Clear Application
- Completely Concealed
- High Traffic Durability
- Individually Packaged
- Includes Fasteners for Wood or Metal Doors/Frames
- UL/ULC Listed for Use on Fire Door Assemblies
- Lifetime Warranty
Specifications
| Model | PT1000SCEZ |
|---|
| Finish | S4 (BSPC) |
|---|
| Finish Code | S4 |
|---|
| Family | PT1000SCEZ |
|---|
| Finishes | US28, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, 314, 315, Custom Finishes Available |
|---|
| Maximum Rating | 24 VDC, 1A |
|---|
| Wire Specification | (12) 24 AWG wires |
|---|
| Door Thickness | 1-3/4" to 2-1/4" door thickness |
|---|
| Connector Type | Molex Micro-Fit 3.0 EZ connectors |
|---|
| Door Opening Range | 90° to 180° |
|---|
| Installation | Mortises into door and frame edges, completely concealed when closed |
|---|
Combines swing clear compatibility with EZ connector convenience for simplified installation.
Features
- Lifetime Warranty
- Includes Fasteners for Wood or Metal Doors/Frames
- High Traffic Durability
- Completely Concealed
- Swing Clear Application
- Individually Packaged
- All Metal Construction
- UL/ULC Listed for Use on Fire Door Assemblies
Attributes
BRAND_ NAME: ABH
Connector Type: Molex Micro-Fit 3.0 EZ connectors
Door Opening Range: 90° to 180°
Door Thickness: 1-3/4" to 2-1/4" door thickness
Family: PT1000SCEZ
Finish: S4 (BSPC)
Finish Code: S4
Finishes: US28, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, 314, 315, Custom Finishes Available
Installation: Mortises into door and frame edges, completely concealed when closed
Maximum Rating: 24 VDC, 1A
Model: PT1000SCEZ
Wire Specification: (12) 24 AWG wires
