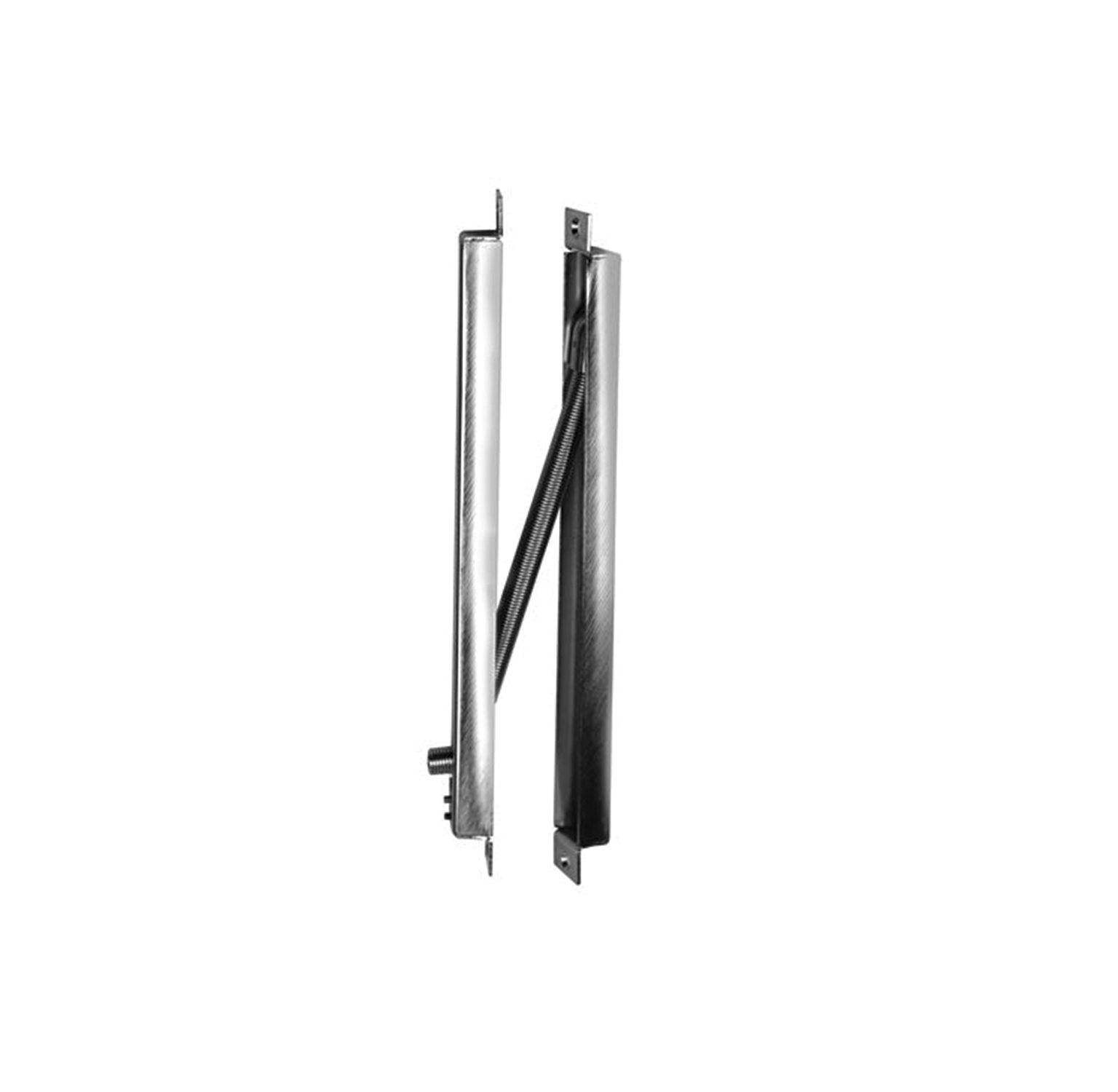

ABH PT105SC Power Transfer Square Corners for 105 Swing Clear Door - No Wire ProvidedThe ABH PT105SC Power Transfer is expertly crafted for swing clear applications, accommodating a maximum door swing of 105°. This innovative product features a robust stainless steel housing, ensuring long-lasting durability and resistance to wear in high-traffic environments.
Designed with square corners and a secure mounting tab, the PT105SC is perfect for installations where aesthetics and functionality meet. Its specialized design caters to swing clear hinge requirements, providing an efficient solution for power transfer without compromising on safety or ease of use.
This model does not include wires, allowing you to select wire options that best meet your project needs. The power transfer unit can accommodate wire bundles up to 5/16" thick, fostering flexibility in installation.
The PT105SC is compatible with most butt hinges, continuous hinges, and 3/4" offset pivots, making it a versatile choice for architects, contractors, and facility managers. Offered in a sleek US32D finish, this product enhances the overall aesthetic of any commercial space while ensuring compliance with industry standards.
Choose the ABH PT105SC for a reliable and efficient power transfer solution in your next project.
Power Transfer Square Corners for Swing Clear (105 Swing), 105 Door Swing - Square Corners for Swing Clear Application, No Wire Provided - See Options
Stainless steel housing power transfer specifically designed for swing clear applications with 105° maximum door swing and square mounting configuration.
PT105SC: 105° Door Swing - Square Corners for Swing Clear Application, No Wire Provided - See Options
Key Features
- Stainless Steel Housing
- Swing Clear Application
- Square Mounting Tab
- 105° Maximum Swing
- No Wires Provided (See Options)
Specifications
| Model | PT105SC |
|---|
| Family | PT105SC |
|---|
| Finishes | US32D |
|---|
| Weight | 1.5 lbs. average per unit |
|---|
| Maximum Door Swing | 105° |
|---|
| Wire Bundle Capacity | Up to 5/16" thick wire bundles |
|---|
| Hinge Compatibility | Most butt hinges, continuous hinges, and 3/4" offset pivots |
|---|
Specialized design accommodates swing clear hinge requirements with secure wire housing.
Features
- 105° Maximum Swing
- Swing Clear Application
- Square Mounting Tab
- No Wires Provided (See Options)
- Stainless Steel Housing
Attributes
BRAND_ NAME: ABH
Family: PT105SC
Finishes: US32D
Hinge Compatibility: Most butt hinges, continuous hinges, and 3/4" offset pivots
Maximum Door Swing: 105°
Model: PT105SC
Weight: 1.5 lbs. average per unit
Wire Bundle Capacity: Up to 5/16" thick wire bundles
