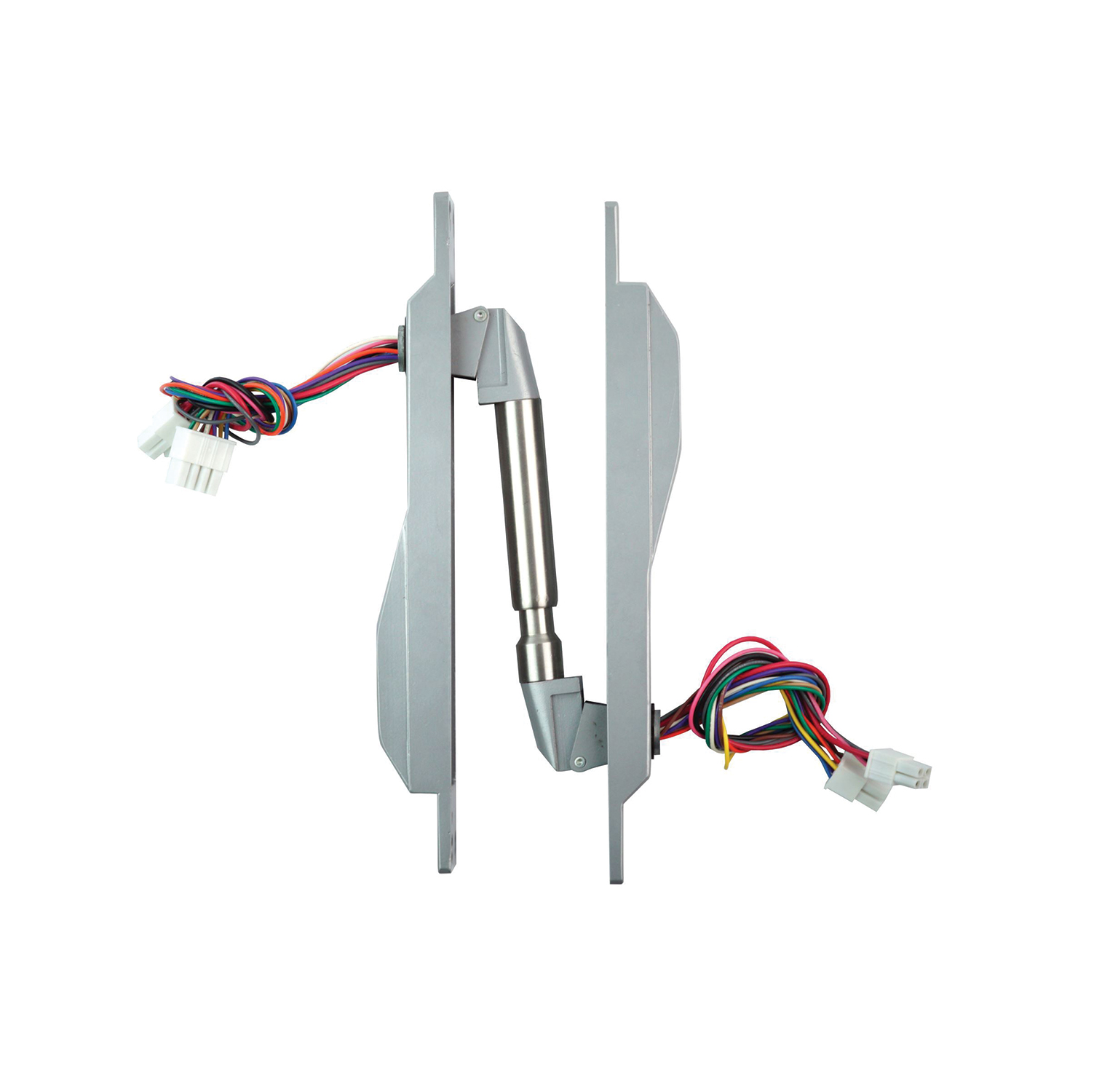

ABH PT1200EZ Power Transfer Mini-Fit Jr., (2) 18 AWG, (10) 24 AWG Wires, Clear Anodized AluminumThe ABH PT1200EZ Power Transfer with EZ Connectors is designed for seamless electrical and data transfer in high-traffic environments. This concealed power transfer unit features (2) 18 AWG and (10) 24 AWG wires with Molex Mini-Fit Jr. connectors, ensuring reliable performance and versatility for various electrical requirements.
Constructed from durable all-metal materials, the PT1200EZ is built to withstand the rigors of commercial use while maintaining a sleek, unobtrusive appearance. Installation is straightforward, as it mortises into the edges of doors and frames, remaining entirely concealed when closed. This unit is suitable for 1-3/4" thick doors and is compatible with cam lift hinges, butt hinges up to 6", and up to 3/4" offset pivots.
With a maximum rating of 24 VDC and 1A, the PT1200EZ meets UL/ULC standards for use on fire door assemblies, providing peace of mind in safety-critical applications. Additionally, it is offered in a clear anodized aluminum finish (US28), with other custom finishes available to match your project specifications. Each unit is individually packaged and includes fasteners for both wood and metal doors/frames, supported by a lifetime warranty for lasting reliability.
Power Transfer with EZ Connectors Mini-Fit Jr., (2) 18 AWG, (10) 24 AWG Wires with EZ Connectors Molex Mini-Fit Jr., Clear Anodized Aluminum
Concealed power transfer with Mini-Fit Jr. EZ connectors providing electrical power and data transfer with (10) 24 AWG and (2) 18 AWG wires.
PT1200EZ: (2) 18 AWG, (10) 24 AWG Wires with EZ Connectors Molex® Mini-Fit Jr.
Key Features
- Completely Concealed
- High Traffic Durability
- Individually Packaged
- Includes Fasteners for Wood or Metal Doors/Frames
- UL/ULC Listed for Use on Fire Door Assemblies
- Lifetime Warranty
- All Metal Construction
Specifications
| Model | PT1200EZ |
|---|
| Finish | Clear Anodized Aluminum |
|---|
| Finish Code | US28 |
|---|
| Family | PT1200EZ |
|---|
| Finishes | US28, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, 314, 315, Custom Finishes Available |
|---|
| Maximum Rating | 24 VDC, 1A |
|---|
| Wire Specification | (10) 24 AWG wires and (2) 18 AWG wires |
|---|
| Connector Type | Molex Mini-Fit Jr. EZ connectors |
|---|
| Weight | 2.0 lbs. average per unit |
|---|
| Door Thickness | 1-3/4" door thickness |
|---|
| Installation | Mortises into door and frame edges, completely concealed when closed |
|---|
| Hinge Compatibility | Cam lift hinges (up to 1/2" lift), butt hinges up to 6", up to 3/4" offset pivots |
|---|
| Restrictions | Not for use with swing clear hinges, pocket pivots, butt hinges larger than 6", 1-1/2" offset pivots, or center hung doors |
|---|
Dual wire gauge configuration provides flexibility for different electrical requirements.
Features
- Lifetime Warranty
- Includes Fasteners for Wood or Metal Doors/Frames
- High Traffic Durability
- Completely Concealed
- Individually Packaged
- All Metal Construction
- UL/ULC Listed for Use on Fire Door Assemblies
Attributes
BRAND_ NAME: ABH
Connector Type: Molex Mini-Fit Jr. EZ connectors
Door Thickness: 1-3/4" door thickness
Family: PT1200EZ
Finish: Clear Anodized Aluminum
Finish Code: US28
Finishes: US28, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, 314, 315, Custom Finishes Available
Hinge Compatibility: Cam lift hinges (up to 1/2" lift), butt hinges up to 6", up to 3/4" offset pivots
Installation: Mortises into door and frame edges, completely concealed when closed
Maximum Rating: 24 VDC, 1A
Model: PT1200EZ
Restrictions: Not for use with swing clear hinges, pocket pivots, butt hinges larger than 6", 1-1/2" offset pivots, or center hung doors
Weight: 2.0 lbs. average per unit
Wire Specification: (10) 24 AWG wires and (2) 18 AWG wires
