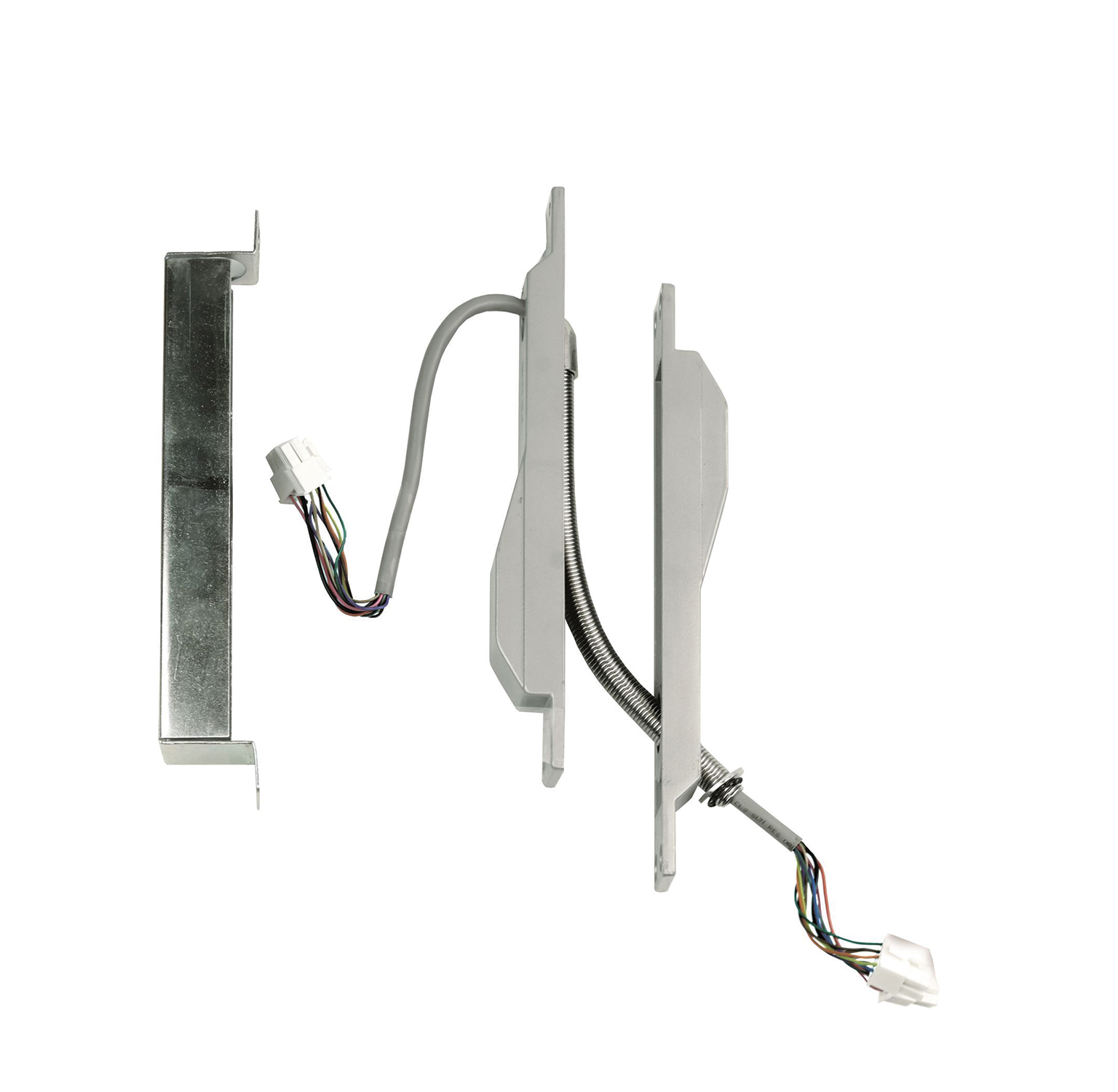

ABH PT1200SCEZ Power Transfer Mini-Fit Jr. for Swing Clear, (2) 18, (10) 24 AWG Wires, S5 (DBPC)The ABH PT1200SCEZ Power Transfer with EZ Connectors Mini-Fit Jr. is ingeniously designed for swing clear applications, making it an ideal choice for architects, contractors, and facility managers seeking reliable power transfer solutions. This product features a robust all-metal construction that ensures high traffic durability, making it suitable for demanding environments.
With (10) 24 AWG and (2) 18 AWG wires, this power transfer unit is tailored for seamless installation in doors with a thickness ranging from 1-3/4" to 2-1/4". The innovative EZ connectors, utilizing Molex Mini-Fit Jr. technology, provide a secure and straightforward connection that enhances efficiency during installation.
Compliance is paramount; the PT1200SCEZ is UL/ULC listed for use on fire door assemblies, ensuring safety and reliability in critical applications. The concealed design allows for a clean aesthetic, as it is fully mortised into the door and frame edges, remaining hidden when the door is closed. Available in a variety of finishes, including S5 (DBPC), it can seamlessly blend with any architectural style.
With the assurance of a lifetime warranty, the ABH PT1200SCEZ Power Transfer is a dependable choice for those who demand quality and performance in commercial door hardware.
Power Transfer with EZ Connectors Mini-Fit Jr. for Swing Clear Applications, (2) 18, (10) 24 AWG Wires for Swing Clear Application with EZ Connectors Molex Mini-Fit Jr., S5 (DBPC)
Concealed power transfer with Mini-Fit Jr. EZ connectors for swing clear applications with (10) 24 AWG and (2) 18 AWG wires.
PT1200SCEZ: (2) 18, (10) 24 AWG Wires for Swing Clear Application with EZ Connectors Molex® Mini-Fit Jr.
Key Features
- All Metal Construction
- Swing Clear Application
- Completely Concealed
- High Traffic Durability
- Individually Packaged
- Includes Fasteners for Wood or Metal Doors/Frames
- UL/ULC Listed for Use on Fire Door Assemblies
- Lifetime Warranty
Specifications
| Model | PT1200SCEZ |
|---|
| Finish | S5 (DBPC) |
|---|
| Finish Code | S5 |
|---|
| Family | PT1200SCEZ |
|---|
| Finishes | US28, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, 314, 315, Custom Finishes Available |
|---|
| Maximum Rating | 24 VDC, 1A |
|---|
| Wire Specification | (10) 24 AWG wires and (2) 18 AWG wires |
|---|
| Connector Type | Molex Mini-Fit Jr. EZ connectors |
|---|
| Door Opening Range | 90° to 180° |
|---|
| Door Thickness | 1-3/4" to 2-1/4" door thickness |
|---|
| Installation | Mortises into door and frame edges, completely concealed when closed |
|---|
Premium dual wire gauge solution for swing clear applications with Mini-Fit Jr. connectors.
Features
- Lifetime Warranty
- Includes Fasteners for Wood or Metal Doors/Frames
- High Traffic Durability
- Completely Concealed
- Swing Clear Application
- Individually Packaged
- All Metal Construction
- UL/ULC Listed for Use on Fire Door Assemblies
Attributes
BRAND_ NAME: ABH
Connector Type: Molex Mini-Fit Jr. EZ connectors
Door Opening Range: 90° to 180°
Door Thickness: 1-3/4" to 2-1/4" door thickness
Family: PT1200SCEZ
Finish: S5 (DBPC)
Finish Code: S5
Finishes: US28, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, 314, 315, Custom Finishes Available
Installation: Mortises into door and frame edges, completely concealed when closed
Maximum Rating: 24 VDC, 1A
Model: PT1200SCEZ
Wire Specification: (10) 24 AWG wires and (2) 18 AWG wires
