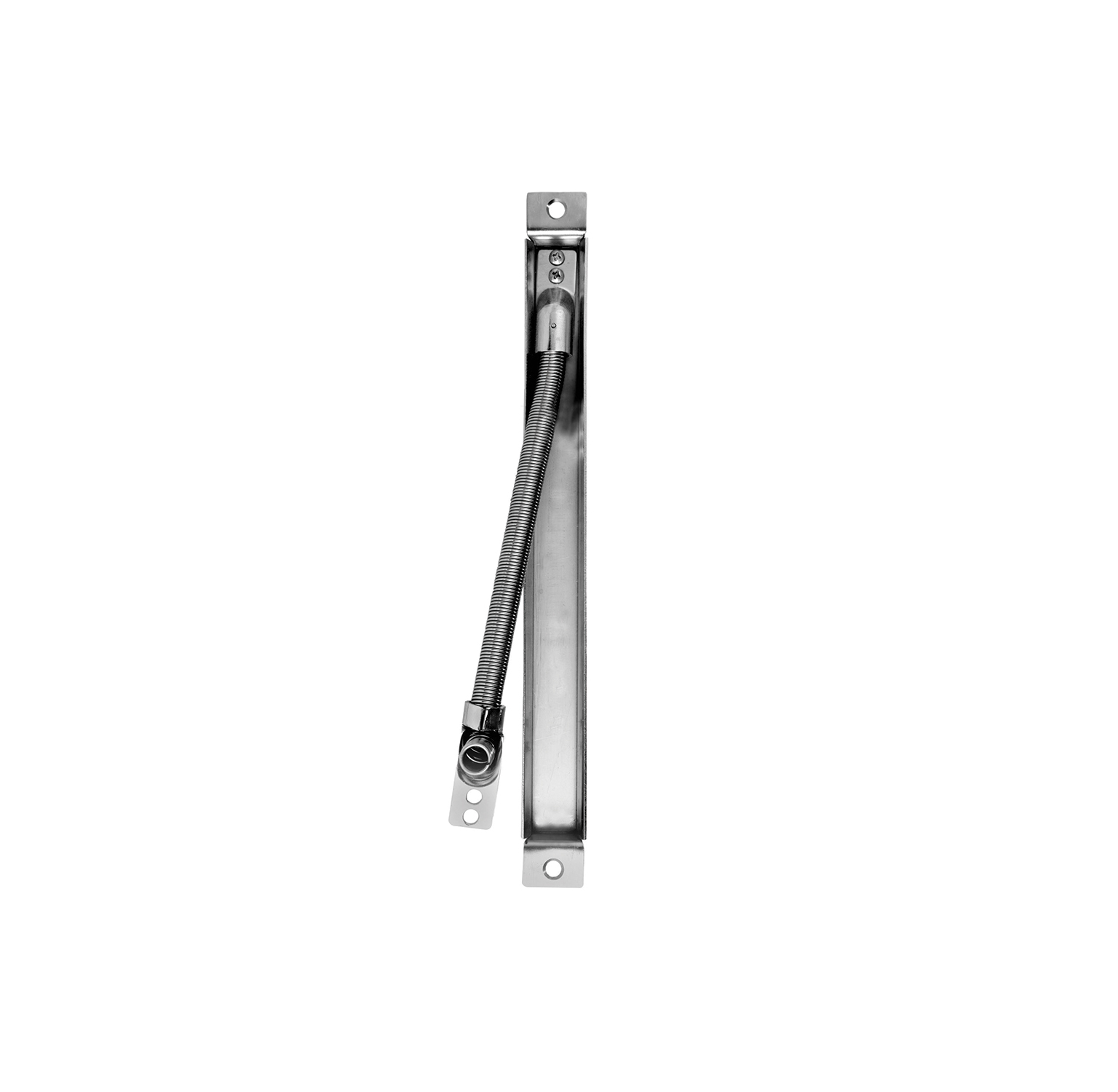

The ABH PT180 Power Transfer Square Corners are expertly designed to facilitate secure wire routing from the door frame to the door itself, accommodating a maximum door swing of 180°. This product is particularly suited for swing clear applications, making it an ideal choice for architects, contractors, and facility managers seeking reliability and efficiency in commercial settings.
Constructed from high-quality stainless steel, the PT180 features a robust housing that ensures durability and longevity in high-traffic environments. The square mounting configuration simplifies installation, while its compatibility with most butt hinges, continuous hinges, and 3/4" offset pivots makes it versatile across various door types.
Weighing an average of 1.5 lbs. per unit, this power transfer device supports wire bundles up to 5/16" thick, providing ample capacity for electrical installations. Available in a sleek US32D finish, the PT180 not only meets functional requirements but also enhances the aesthetic of commercial spaces.
Choose the ABH PT180 for a trusted solution that combines performance with sophisticated design in your next project.
Power Transfer Square Corners (180 Swing), 105 Door Swing - Square Corners for Swing Clear Application, No Wire Provided - See Options
Stainless steel housing power transfer providing secure wire routing from frame to door with 180° maximum door swing and square mounting configuration.
PT180: 105° Door Swing - Square Corners for Swing Clear Application, No Wire Provided - See Options
Enhanced swing capability for applications requiring full 180° door opening range.
Features
BRAND_ NAME: ABH
Family: PT180
Finishes: US32D
Hinge Compatibility: Most butt hinges, continuous hinges, and 3/4" offset pivots
Maximum Door Swing: 180°
Model: PT180
Weight: 1.5 lbs. average per unit
Wire Bundle Capacity: Up to 5/16" thick wire bundles
