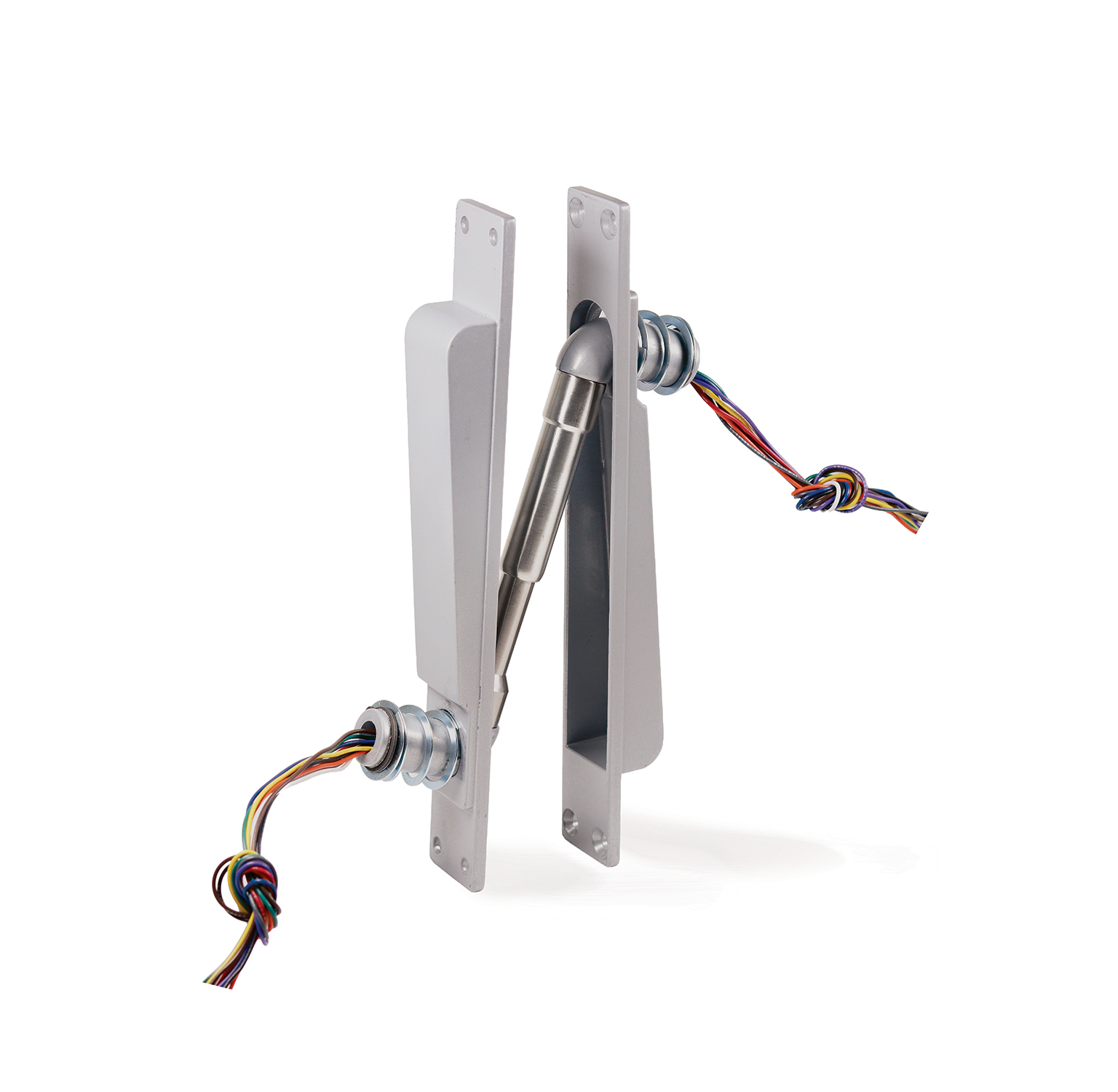

ABH PT200 Power Transfer (2) 18 AWG Wires, Clear Anodized AluminumIntroducing the ABH PT200 Power Transfer, a cutting-edge solution designed for seamless electrical and data transfer between door frames and doors. This concealed system features two 18 AWG wires, rated for both 24 VDC up to 5A and 120 VAC NEC Class applications, making it ideal for high-demand environments such as commercial buildings and facilities.
The all-metal construction ensures high traffic durability, while its completely concealed design reinforces both aesthetics and security. Each unit is individually packaged and comes with fasteners suitable for both wood and metal doors or frames, simplifying installation. The PT200 is UL/ULC listed for use on fire door assemblies, ensuring compliance with stringent safety standards.
With a clear anodized aluminum finish (US28), the PT200 not only provides a sleek appearance but also withstands the rigors of daily use. Designed for 1-3/4" door thickness, it is compatible with various hinge types, including cam lift hinges and butt hinges up to 6". However, please note that it is not suitable for swing clear hinges or larger butt hinges.
Backed by a lifetime warranty, the ABH PT200 Power Transfer is the reliable choice for architects, contractors, and facility managers seeking superior performance and compliance in commercial door hardware.
Power Transfer (2) 18 AWG Wires, (2) 18 AWG Wires, Clear Anodized Aluminum
Concealed power transfer providing electrical power and data transfer from frame to door with (2) 18 AWG wires rated for 24 VDC, 5A or 120 VAC NEC Class applications.
PT200: (2) 18 AWG Wires
Key Features
- All Metal Construction
- Completely Concealed
- High Traffic Durability
- Individually Packaged
- Includes Fasteners for Wood or Metal Doors/Frames
- UL/ULC Listed for Use on Fire Door Assemblies
- Lifetime Warranty
Specifications
| Model | PT200 |
|---|
| Finish | Clear Anodized Aluminum |
|---|
| Finish Code | US28 |
|---|
| Family | PT200 |
|---|
| Finishes | US28, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, 314, 315, Custom Finishes Available |
|---|
| Wire Specification | (2) 18 AWG wires |
|---|
| Maximum Rating | 24 VDC, 5A or 120 VAC NEC Class |
|---|
| Weight | 2.0 lbs. average per unit |
|---|
| Door Thickness | 1-3/4" door thickness |
|---|
| Hinge Compatibility | Cam lift hinges (up to 1/2" lift), butt hinges up to 6", up to 3/4" offset pivots |
|---|
| Restrictions | Not for use with swing clear hinges, pocket pivots, butt hinges larger than 6", 1-1/2" offset pivots, or center hung doors |
|---|
| Installation | Mortises into door and frame edges, completely concealed when closed |
|---|
Higher current rating suitable for demanding electrical applications requiring NEC Class compliance.
Features
- Lifetime Warranty
- Includes Fasteners for Wood or Metal Doors/Frames
- High Traffic Durability
- Completely Concealed
- Individually Packaged
- All Metal Construction
- UL/ULC Listed for Use on Fire Door Assemblies
Attributes
BRAND_ NAME: ABH
Door Thickness: 1-3/4" door thickness
Family: PT200
Finish: Clear Anodized Aluminum
Finish Code: US28
Finishes: US28, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, 314, 315, Custom Finishes Available
Hinge Compatibility: Cam lift hinges (up to 1/2" lift), butt hinges up to 6", up to 3/4" offset pivots
Installation: Mortises into door and frame edges, completely concealed when closed
Maximum Rating: 24 VDC, 5A or 120 VAC NEC Class
Model: PT200
Restrictions: Not for use with swing clear hinges, pocket pivots, butt hinges larger than 6", 1-1/2" offset pivots, or center hung doors
Weight: 2.0 lbs. average per unit
Wire Specification: (2) 18 AWG wires
