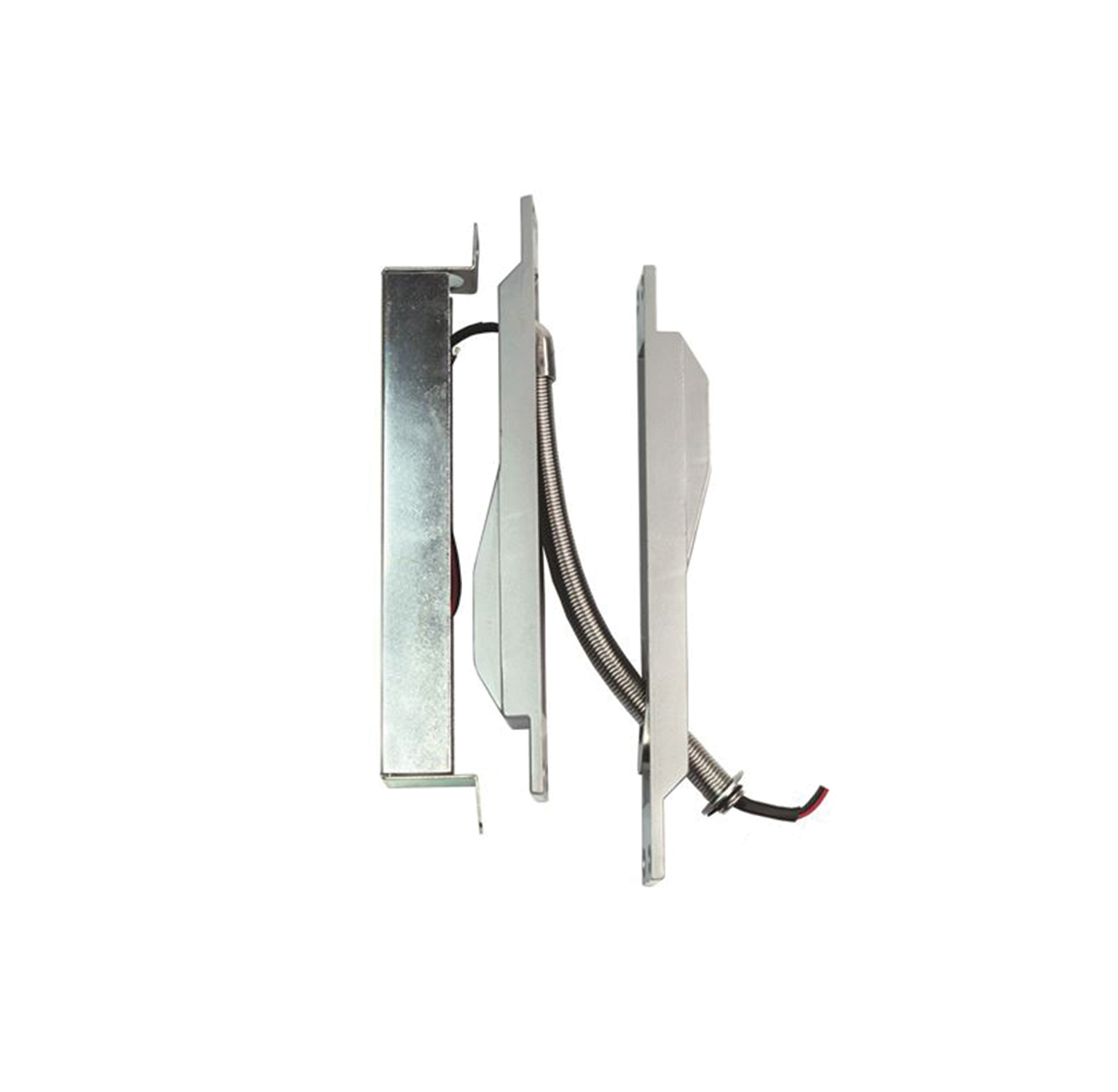

ABH PT200SC Power Transfer (2) 18 AWG Wires for Swing Clear, 314The ABH PT200SC Power Transfer is expertly designed for swing clear applications, providing a seamless solution for electrical power and data transfer through its (2) 18 AWG wires. This concealed unit is perfect for high-traffic environments, ensuring a clean aesthetic without compromising functionality.
Constructed from all-metal materials, the PT200SC offers superior durability and is individually packaged for easy installation. It includes fasteners suitable for both wood and metal doors and frames, ensuring a secure fit in various applications. The device is UL/ULC listed for use on fire door assemblies, meeting stringent safety standards to guarantee reliability.
With a maximum rating of 24 VDC and 1A, the power transfer accommodates door thicknesses ranging from 1-3/4" to 2-1/4" and operates within a door opening range of 90° to 180°. Installation is straightforward, as the unit is mortised into the edges of the door and frame, remaining completely concealed when closed. The PT200SC is available in a standard finish of 314, with additional custom finishes upon request, allowing for versatile integration into any architectural design.
Experience peace of mind with the PT200SC’s lifetime warranty, making it a reliable choice for architects, contractors, and facility managers alike.
Power Transfer (2) 18 AWG Wires for Swing Clear Applications, (2) 18 AWG Wires for Swing Clear Application, 314
Concealed power transfer specifically designed for swing clear applications providing electrical power and data transfer with (2) 18 AWG wires.
PT200SC: (2) 18 AWG Wires for Swing Clear Application
Key Features
- Swing Clear Application
- Completely Concealed
- High Traffic Durability
- Individually Packaged
- Includes Fasteners for Wood or Metal Doors/Frames
- UL/ULC Listed for Use on Fire Door Assemblies
- Lifetime Warranty
- All Metal Construction
Specifications
| Model | PT200SC |
|---|
| Finish | 314 |
|---|
| Finish Code | 314 |
|---|
| Family | PT200SC |
|---|
| Finishes | US28, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, 314, 315, Custom Finishes Available |
|---|
| Wire Specification | (2) 18 AWG wires |
|---|
| Maximum Rating | 24 VDC, 1A |
|---|
| Door Thickness | 1-3/4" to 2-1/4" door thickness |
|---|
| Door Opening Range | 90° to 180° |
|---|
| Installation | Mortises into door and frame edges, completely concealed when closed |
|---|
Features
- Lifetime Warranty
- Includes Fasteners for Wood or Metal Doors/Frames
- High Traffic Durability
- Completely Concealed
- Swing Clear Application
- Individually Packaged
- All Metal Construction
- UL/ULC Listed for Use on Fire Door Assemblies
Attributes
BRAND_ NAME: ABH
Door Opening Range: 90° to 180°
Door Thickness: 1-3/4" to 2-1/4" door thickness
Family: PT200SC
Finish: 314
Finish Code: 314
Finishes: US28, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, 314, 315, Custom Finishes Available
Installation: Mortises into door and frame edges, completely concealed when closed
Maximum Rating: 24 VDC, 1A
Model: PT200SC
Wire Specification: (2) 18 AWG wires
