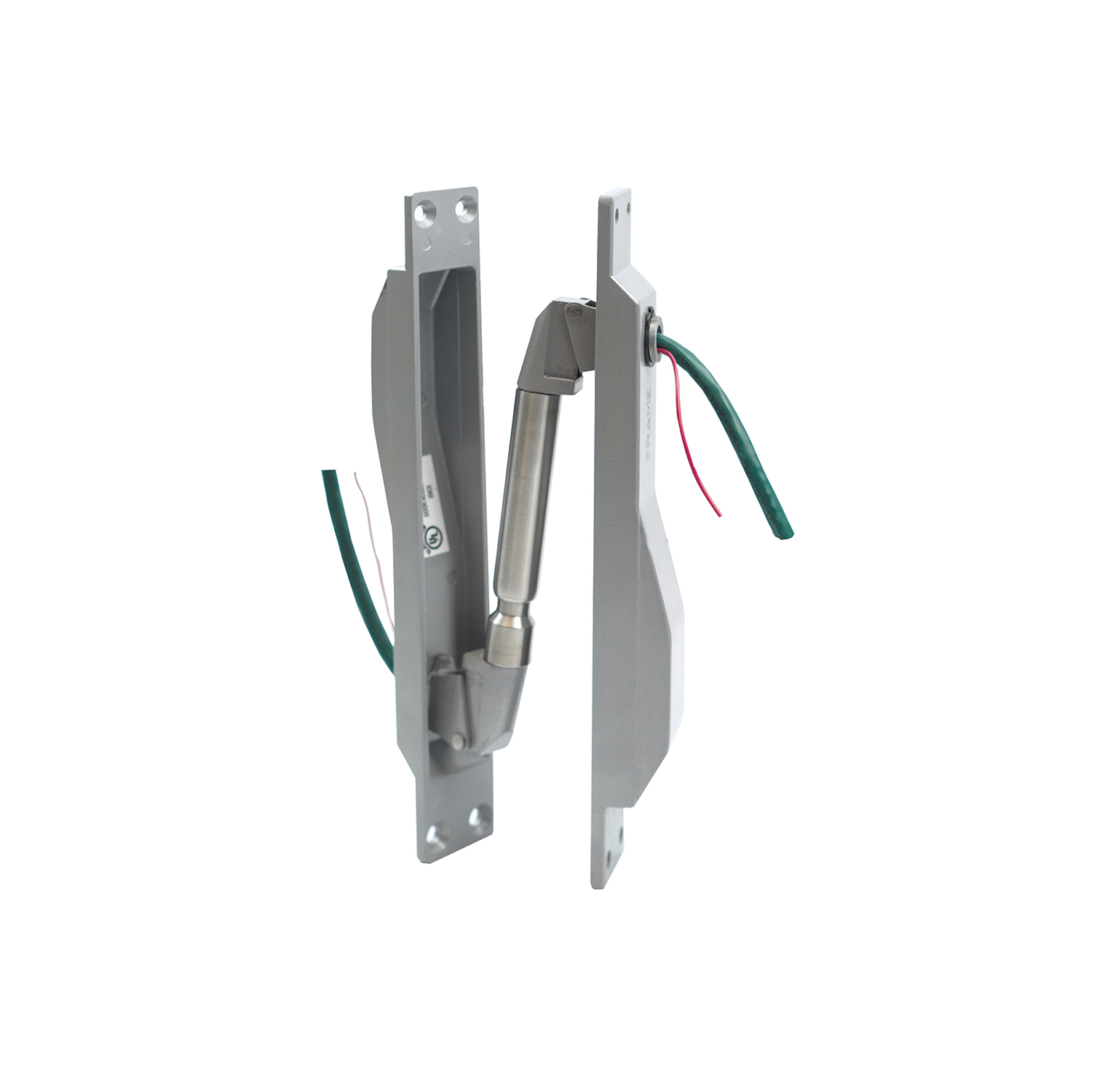

ABH PTC6PLUS Power Transfer - CAT 6 Ethernet Cable, (1) 22 AWG, 24 VDC, 1A, Clear Anodized AluminumThe ABH PTC6PLUS Power Transfer offers a sophisticated solution for concealed power and data transmission, making it ideal for high-traffic environments where functionality meets design. This Power Transfer utilizes a Cat.6 standard Ethernet cable, ensuring robust performance with a maximum capacity of 550 MHz. Constructed from durable all-metal materials, the PTC6PLUS is engineered for longevity and reliability, seamlessly integrating into doors and frames with a mortised install that remains completely concealed when closed.
With a wire specification of (1) 22 AWG, the unit supports a maximum rating of 24 VDC at 1A, providing the necessary power for electronic devices while maintaining compliance with UL/ULC standards for use on fire door assemblies. The clear anodized aluminum finish not only enhances aesthetic appeal but also offers protection against wear and tear, ensuring the unit withstands the rigors of daily use.
The PTC6PLUS is individually packaged and includes fasteners suitable for both wood and metal doors/frames, simplifying installation. Additionally, it is compatible with various hinge types, including cam lift and butt hinges up to 6 inches. For added peace of mind, this product comes with a lifetime warranty, affirming its quality and performance in architectural applications.
Power Transfer - CAT 6 Standard Ethernet Cable, CAT 6 Standard Ethernet Cable, (1) 22 AWG Wire Standard, Max. Rating 24 VDC, 1A (550 MHz), Clear Anodized Aluminum
Concealed power transfer with Cat.6 standard ethernet cable providing electrical power and data transfer with (1) 22 AWG wire rated for 24 VDC, 1A.
PTC6PLUS: CAT 6 Standard Ethernet Cable, (1) 22 AWG Wire Standard, Max. Rating 24 VDC, 1A (550 MHz)
Key Features
- All Metal Construction
- Completely Concealed
- High Traffic Durability
- Individually Packaged
- Includes Fasteners for Wood or Metal Doors/Frames
- UL/ULC Listed for Use on Fire Door Assemblies
- Lifetime Warranty
Specifications
| Model | PTC6PLUS |
|---|
| Finish | Clear Anodized Aluminum |
|---|
| Finish Code | US28 |
|---|
| Family | PTC6PLUS |
|---|
| Finishes | US28, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, 314, 315, Custom Finishes Available |
|---|
| Cable Type | Cat.6 standard ethernet cable (max. 550MHz) |
|---|
| Wire Specification | (1) 22 AWG wire |
|---|
| Maximum Rating | 24 VDC, 1A |
|---|
| Weight | 1.5 lbs. average per unit |
|---|
| Door Thickness | 1-3/4" door thickness |
|---|
| Installation | Mortises into door and frame edges, completely concealed when closed |
|---|
| Hinge Compatibility | Cam lift hinges (up to 1/2" lift), butt hinges up to 6", up to 3/4" offset pivots |
|---|
| Restrictions | Not for use with swing clear hinges, pocket pivots, butt hinges larger than 6", 1-1/2" offset pivots, or center hung doors |
|---|
Enhanced ethernet capability with premium finish options for architectural coordination.
Features
- Lifetime Warranty
- Includes Fasteners for Wood or Metal Doors/Frames
- High Traffic Durability
- Completely Concealed
- Individually Packaged
- All Metal Construction
- UL/ULC Listed for Use on Fire Door Assemblies
Attributes
BRAND_ NAME: ABH
Cable Type: Cat.6 standard ethernet cable (max. 550MHz)
Door Thickness: 1-3/4" door thickness
Family: PTC6PLUS
Finish: Clear Anodized Aluminum
Finish Code: US28
Finishes: US28, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, 314, 315, Custom Finishes Available
Hinge Compatibility: Cam lift hinges (up to 1/2" lift), butt hinges up to 6", up to 3/4" offset pivots
Installation: Mortises into door and frame edges, completely concealed when closed
Maximum Rating: 24 VDC, 1A
Model: PTC6PLUS
Restrictions: Not for use with swing clear hinges, pocket pivots, butt hinges larger than 6", 1-1/2" offset pivots, or center hung doors
Weight: 1.5 lbs. average per unit
Wire Specification: (1) 22 AWG wire
