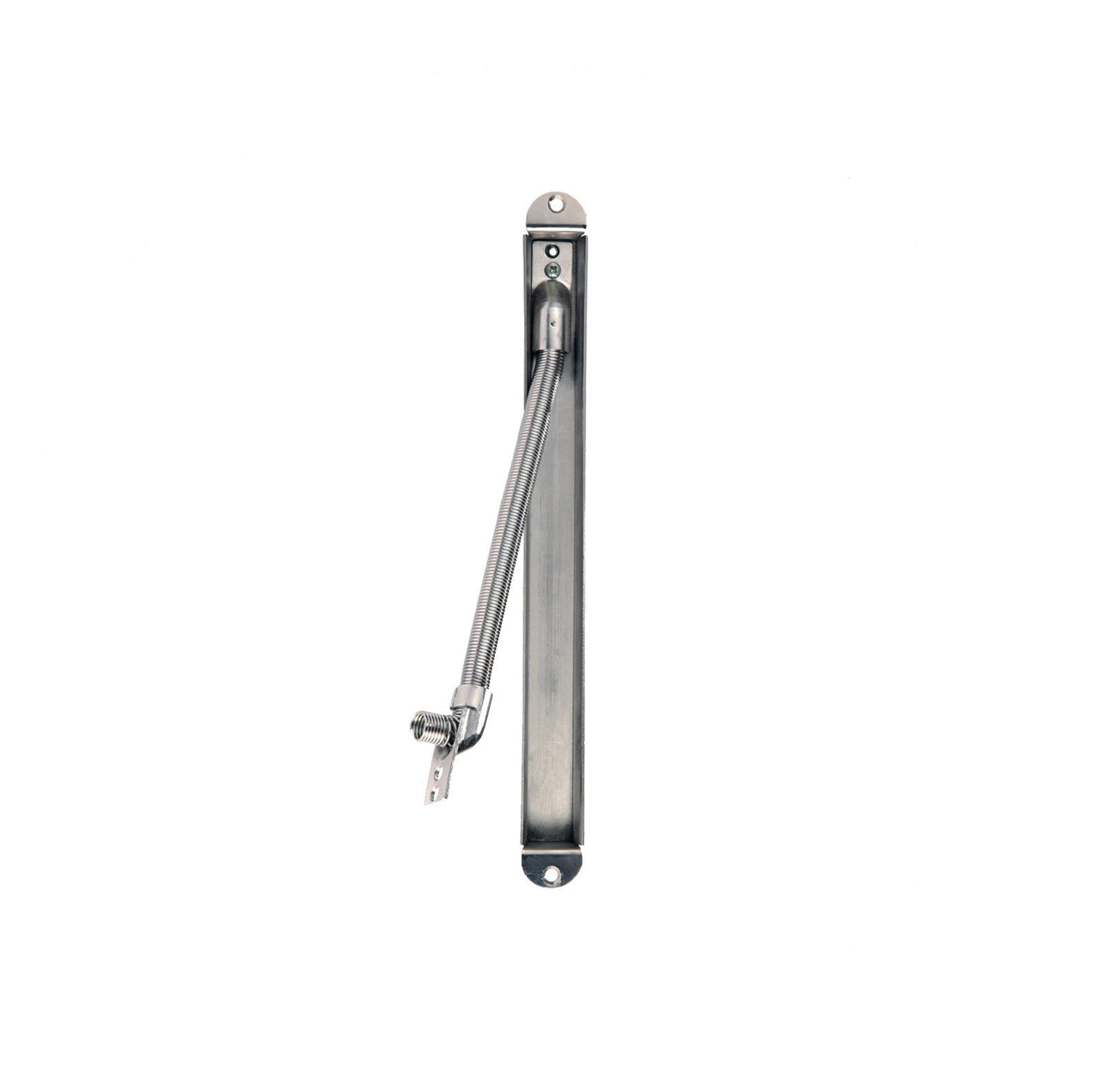

ABH PTR105SC Power Transfer Rounded Corners for 105 Swing Clear Applications, No Wire ProvidedThe ABH PTR105SC Power Transfer is meticulously engineered for swing clear applications, offering a unique solution for environments requiring a 105° maximum door swing. This rounded corner design not only enhances aesthetic appeal but also ensures seamless functionality in high-traffic areas. Ideal for architects, contractors, and facility managers, this power transfer device integrates effortlessly with most butt hinges, continuous hinges, and 3/4" offset pivots.
Constructed from robust stainless steel, the PTR105SC promises durability and long-lasting performance. The spring conduit provides reliable wire management, accommodating wire bundles up to 5/16" thick, making it a versatile choice for various installation needs. The absence of pre-installed wiring allows for customization based on specific project requirements, ensuring compliance with diverse electrical configurations.
With a sleek US32D finish, the power transfer not only meets aesthetic demands but also aligns with modern design standards, making it suitable for both commercial and institutional applications. Whether you are upgrading existing hardware or designing a new space, the PTR105SC is an optimal choice for maintaining functionality without compromising style.
In summary, the ABH PTR105SC Power Transfer combines innovative design with practical features, making it a reliable solution for demanding environments.
Power Transfer Rounded Corners for Swing Clear Applications (105 Swing), 105 Door Swing - Rounded Corners for Swing Clear Application, No Wire Provided - See Options
Stainless steel housing power transfer specifically designed for swing clear applications with 105° maximum door swing and round mounting configuration.
PTR105SC: 105° Door Swing - Rounded Corners for Swing Clear Application, No Wire Provided - See Options
Key Features
- Stainless Steel Housing and Spring Conduit
- Swing Clear Application
- Round Mounting Tab
- 105° Maximum Swing
- Radius Corners
- No Wire Provided (See Options)
Specifications
| Model | PTR105SC |
|---|
| Family | PTR105SC |
|---|
| Finishes | US32D |
|---|
| Weight | 1.5 lbs. average per unit |
|---|
| Maximum Door Swing | 105° |
|---|
| Wire Bundle Capacity | Up to 5/16" thick wire bundles |
|---|
| Hinge Compatibility | Most butt hinges, continuous hinges, and 3/4" offset pivots |
|---|
Combines radius corner aesthetics with swing clear compatibility for premium applications.
Features
- 105° Maximum Swing
- Swing Clear Application
- Radius Corners
- No Wire Provided (See Options)
- Stainless Steel Housing and Spring Conduit
- Round Mounting Tab
Attributes
BRAND_ NAME: ABH
Family: PTR105SC
Finishes: US32D
Hinge Compatibility: Most butt hinges, continuous hinges, and 3/4" offset pivots
Maximum Door Swing: 105°
Model: PTR105SC
Weight: 1.5 lbs. average per unit
Wire Bundle Capacity: Up to 5/16" thick wire bundles
