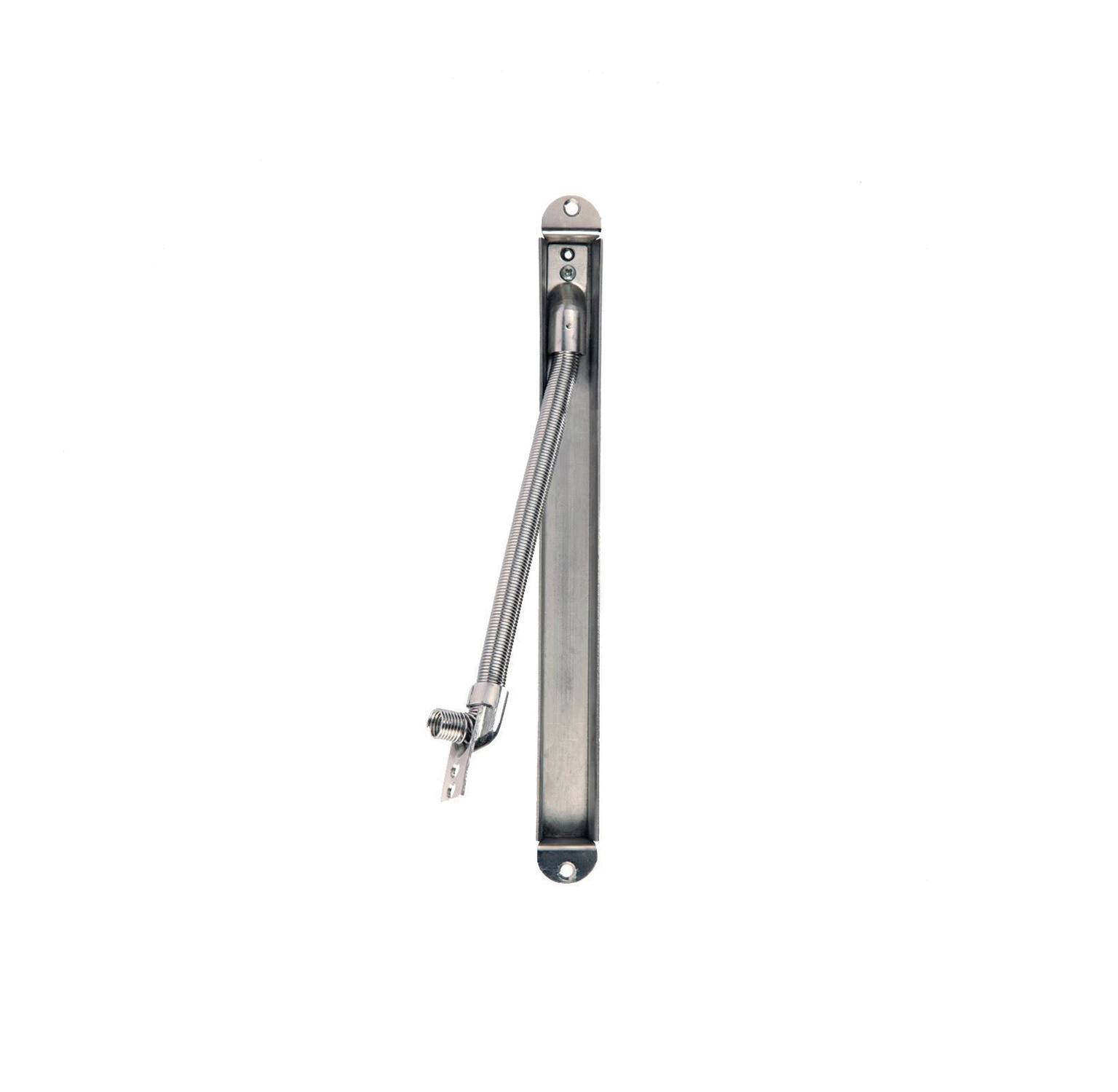

The ABH PTR180 Power Transfer is expertly designed for applications requiring a reliable and efficient wire routing solution from the frame to the door. With its rounded corners tailored for swing clear applications and a maximum door swing of 180°, this power transfer unit ensures optimal performance while maintaining an aesthetically pleasing appearance. Crafted from premium satin stainless steel, the PTR180 is not only durable but also complements modern architectural designs.
Weighing an average of 1.5 lbs. per unit, this power transfer features a robust stainless steel housing that guarantees longevity and resistance to wear. The round mounting tab allows for easy installation and compatibility with most butt hinges, continuous hinges, and 3/4" offset pivots, making it a versatile choice for various door configurations.
With a wire bundle capacity of up to 5/16" thick, the PTR180 is engineered to support multiple wire types, providing flexibility in your project needs. Its compliance with industry standards ensures that it meets the demands of architects, contractors, and facility managers alike. Upgrade your door hardware solutions with the ABH PTR180 Power Transfer, where functionality meets architectural elegance.
Power Transfer Rounded Corners (180 Swing), 105 Door Swing - Rounded Corners for Swing Clear Application, No Wire Provided - See Options, Satin Stainless Steel
Stainless steel housing power transfer providing secure wire routing from frame to door with 180° maximum door swing and round mounting configuration.
PTR180: 105° Door Swing - Rounded Corners for Swing Clear Application, No Wire Provided - See Options
Premium radius corner design with maximum 180° swing capability for architectural applications.
Features
BRAND_ NAME: ABH
Family: PTR180
Finish: Satin Stainless Steel
Finish Code: US32D
Finishes: US32D
Hinge Compatibility: Most butt hinges, continuous hinges, and 3/4" offset pivots
Maximum Door Swing: 180°
Model: PTR180
Weight: 1.5 lbs. average per unit
Wire Bundle Capacity: Up to 5/16" thick wire bundles
