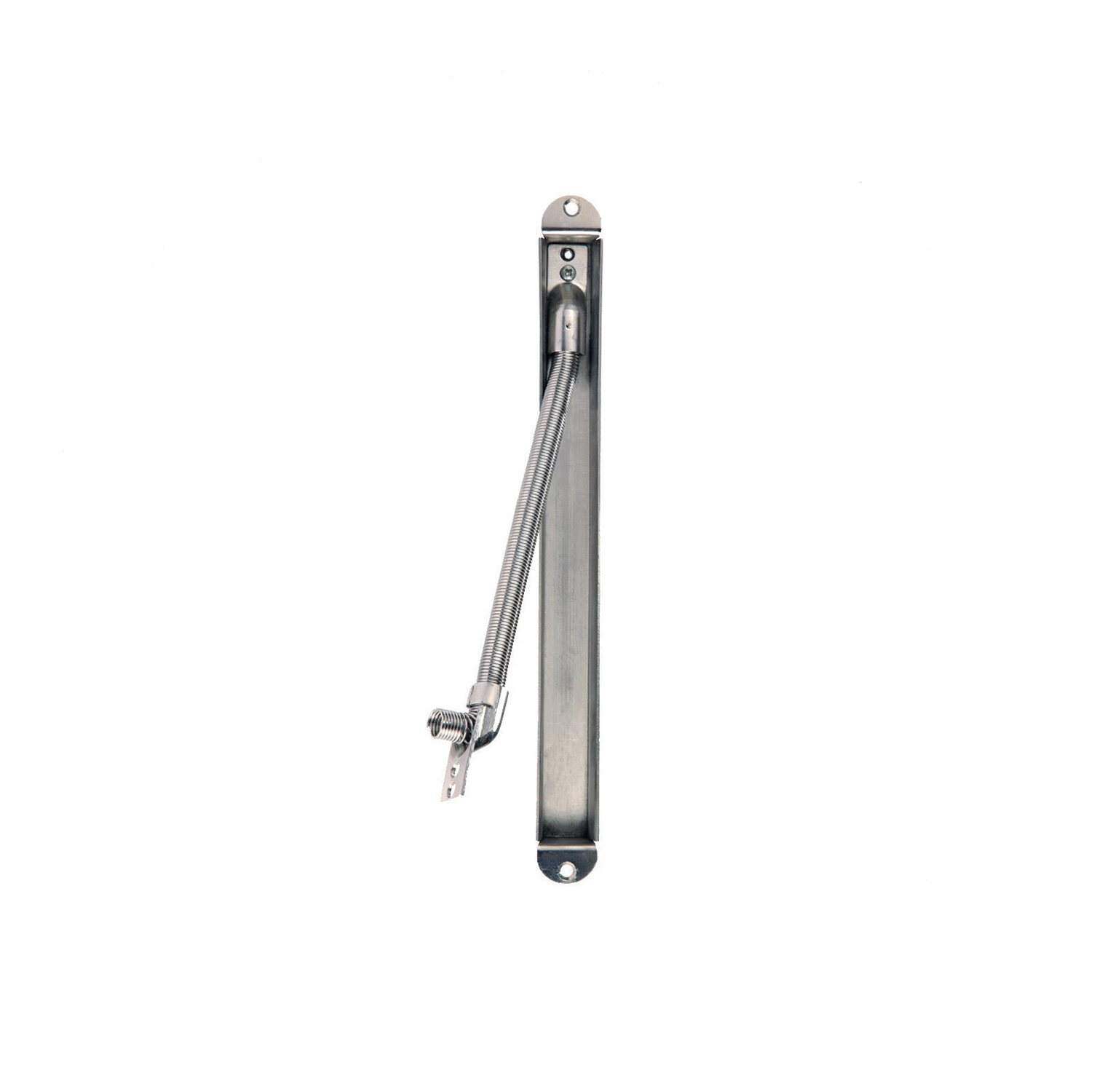

The ABH PTR180SC Power Transfer for Swing Clear Applications is expertly crafted to meet the demands of high-performance environments. Engineered with a stainless steel housing, this power transfer solution is specifically designed for doors with a maximum swing of 180°, ensuring seamless operation in swing clear applications. The rounded corners of the mounting tab provide an aesthetically pleasing finish while enhancing safety and functionality.
Constructed to withstand the rigors of daily use, the PTR180SC features a robust spring conduit that accommodates up to 5/16" thick wire bundles, making it ideal for installations that require efficient power transfer without compromising on design. This model is compatible with most butt hinges, continuous hinges, and 3/4" offset pivots, ensuring versatility across various door configurations.
Available in a sleek US32D finish, the PTR180SC not only meets aesthetic standards but also adheres to high durability requirements. It is an optimal choice for architects, contractors, and facility managers looking for reliable and compliant door hardware. Enhance your project with the ultimate power transfer solution that combines functionality, style, and compliance.
Power Transfer Rounded Corners for Swing Clear Applications (180 Swing), 180 Door Swing - Square Corners, No Wire Provided - See Options
Stainless steel housing power transfer specifically designed for swing clear applications with 180° maximum door swing and round mounting configuration.
PTR180SC: 180° Door Swing - Square Corners, No Wire Provided - See Options
Ultimate power transfer solution combining maximum swing, radius aesthetics, and swing clear compatibility.
Features
BRAND_ NAME: ABH
Family: PTR180SC
Finishes: US32D
Hinge Compatibility: Most butt hinges, continuous hinges, and 3/4" offset pivots
Maximum Door Swing: 180°
Model: PTR180SC
Weight: 1.5 lbs. average per unit
Wire Bundle Capacity: Up to 5/16" thick wire bundles
