Acorn AKABR 2-3/16" Offset Connecticut Shutter Hinge

Acorn AKABR 2-3/16" Offset Connecticut Shutter Hinge Set offers a blend of durability and style, making it an ideal choice for both wood frame and brick applications. Crafted from stainless steel and finished with a sleek matte black paint, these hinges ensure long-lasting performance while enhancing the aesthetic appeal of your shutters. Each set includes four hinges, enough to outfit one window with two shutters, allowing for a cohesive look across your exterior. The 6-1/4" x 1" hinge design incorporates a lift-off feature, simplifying the process of hanging and removing shutters as needed. The 5-1/8" long 3/8" stainless steel pintle allows for smooth operation, while all included screws, 12 #8 x 3/4" pyramid head screws, are also made from stainless steel for added durability. For secure installation, anchors are included, and predrilling with the recommended drill bit sizes ensures a precise fit. The hinges are designed for easy alignment, and adjustments can be made to ensure that your shutters operate smoothly and look perfect when closed. Elevate your home’s exterior with the reliable and stylish Acorn AKABR Offset Connecticut Shutter Hinge Set, combining functionality and elegance.

2-3/16" Offset Connecticut Shutter Hinge Set

AKABR - 2-3/16" Offset Connecticut Shutter Hinge, Set

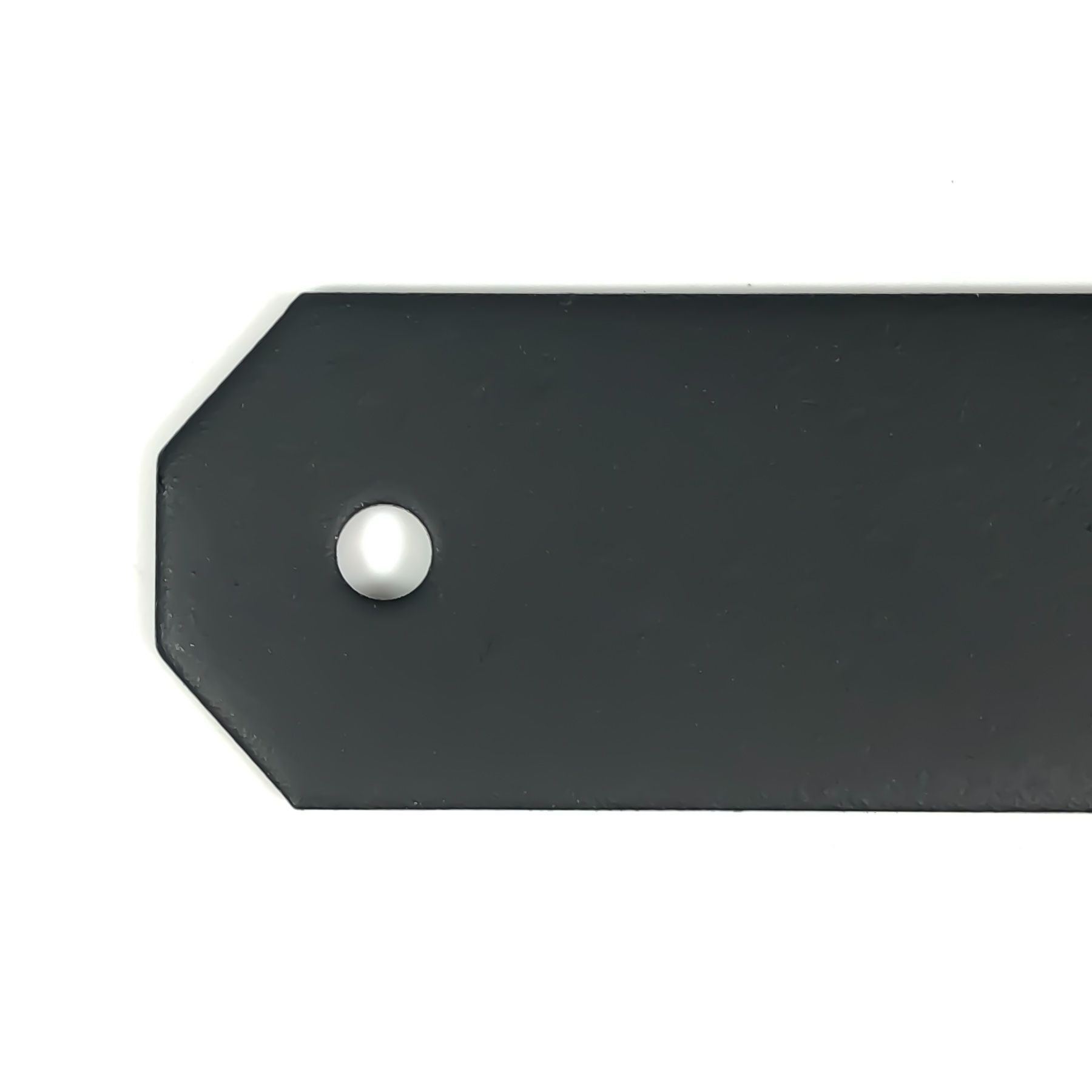

• Made of stainless steel and finished with matte black paint

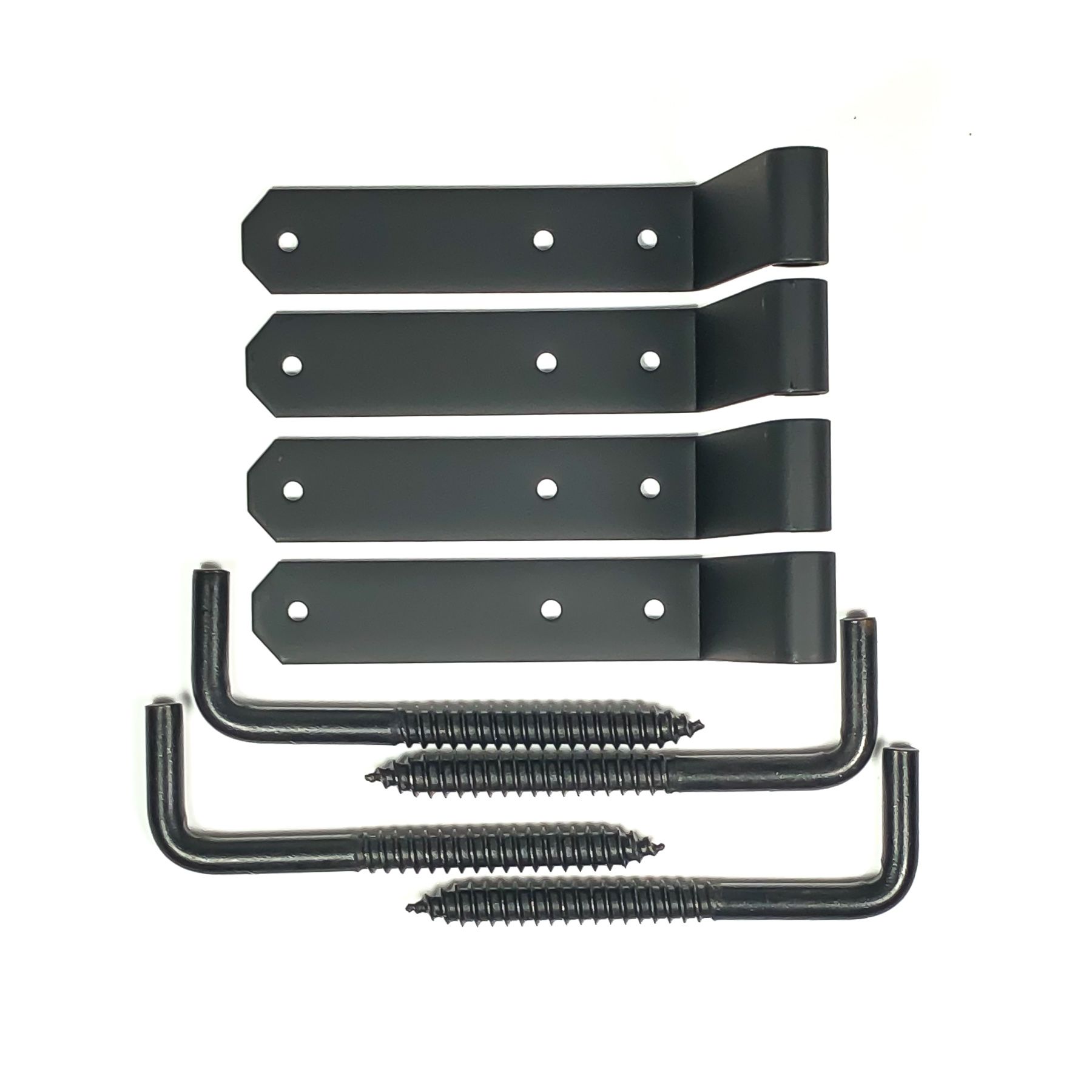

• Sold in sets of 4, one set is used for one window with 2 shutters


• For wood frame or brick applications, anchors included

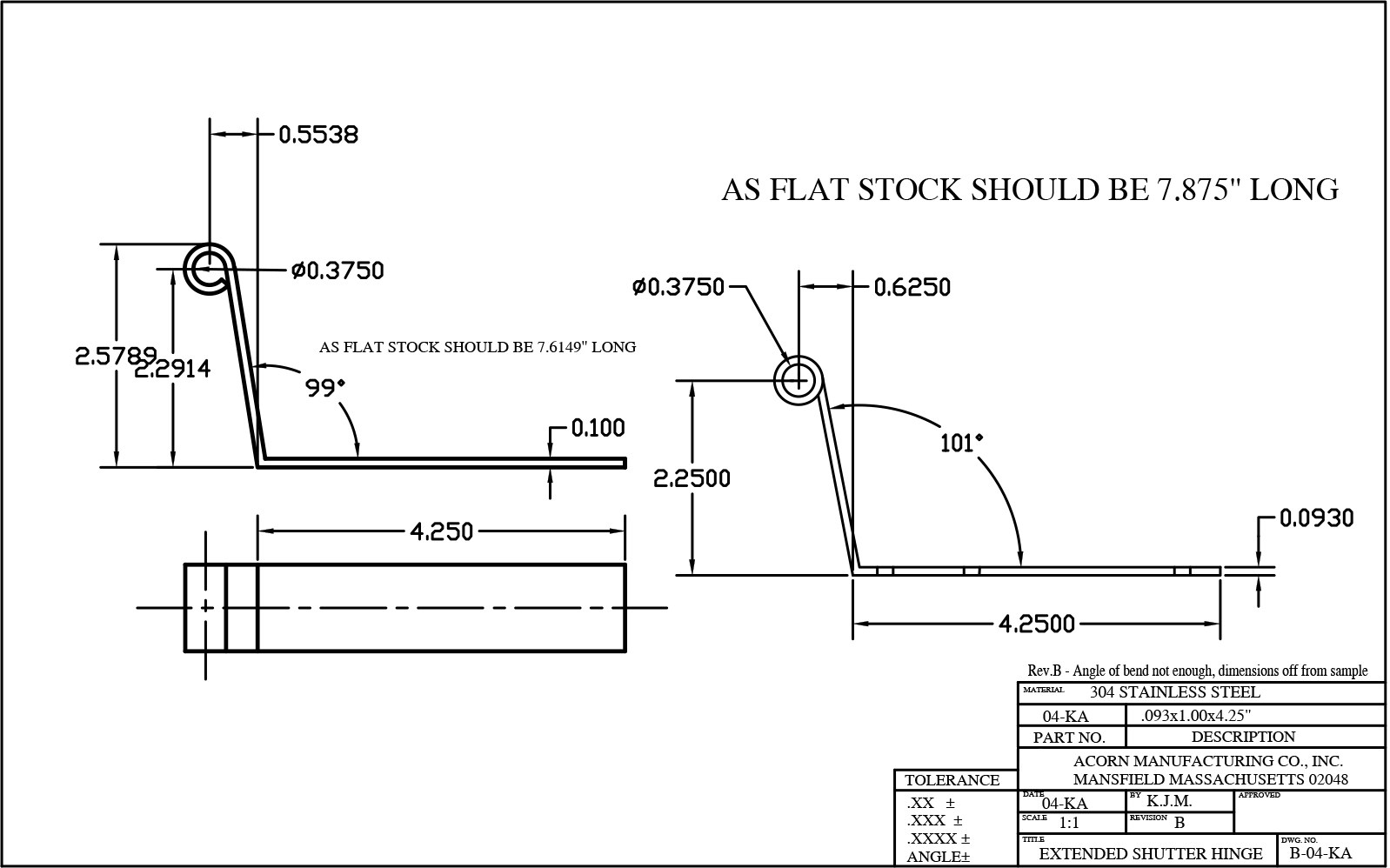

• 6-1/4" x 1" hinge

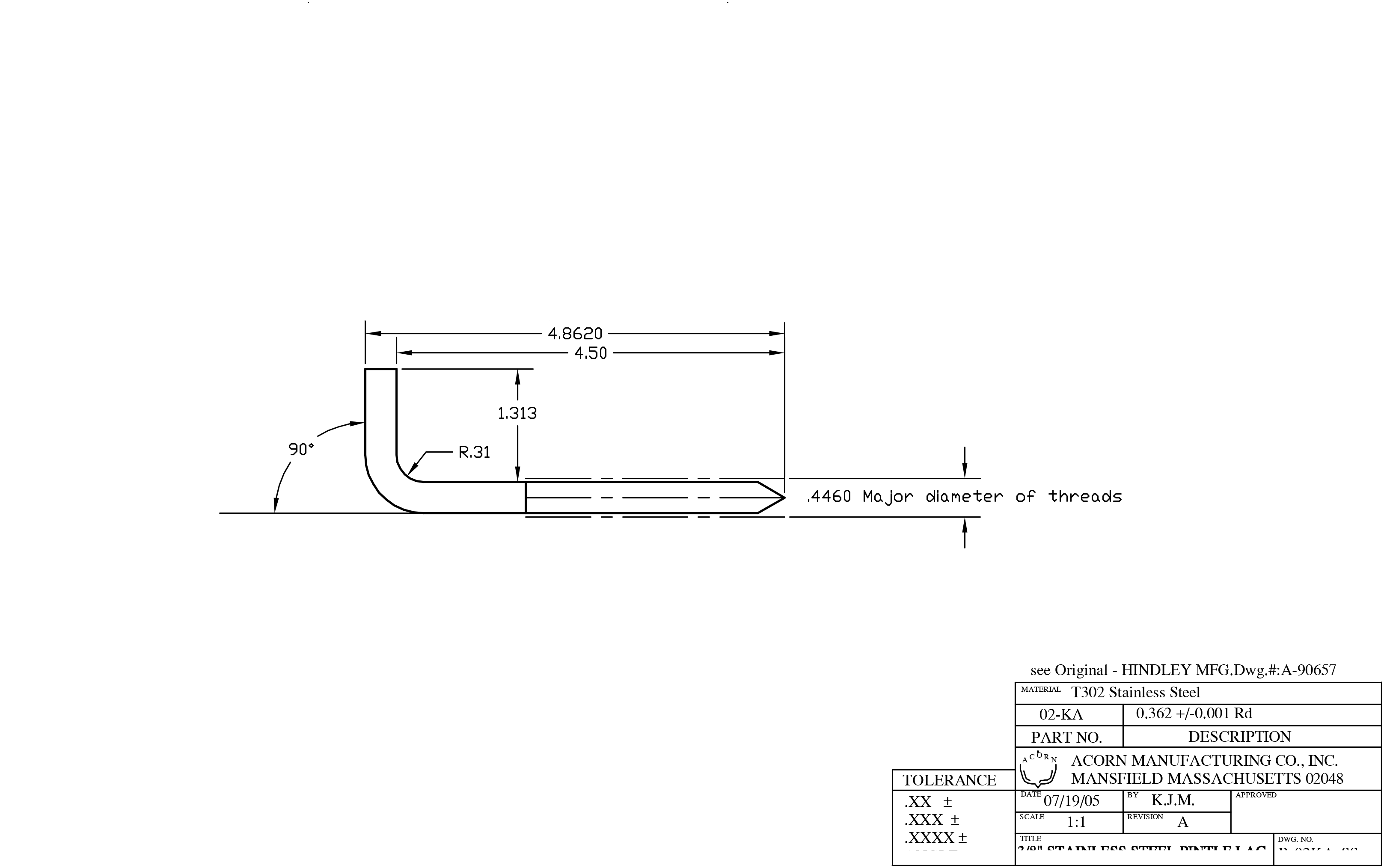

• 5-1/8" long 3/8" stainless steal pintle


• Lift off design for easy hanging and removal of shutters


• All screws made from stainless steel


• 12, #8 x 3/4" pyramid head screws included


• Need extra screws? OrderASRB9

Installation Tips

• Predrill with 7/64" drill bit for soft wood or 1/8" drill bit for hardwood


• Hand tighten screws, do not use power tools with screws.


• When installing decorative hardwre use hand tools in good condition

Installation Instructions

• Holding a shutter and hinge in position, note their location to the window casing and sill.


• The location of the "L" half of the hinge should be central to the upper and lower shutter rails. Align the pintle plate to solid window casing.


• Pintle mounting screws should extend into the casing. Old construction may require longer screws to fasten to framing.


• Position the pintle (pins pointing upward) on the exterior window casing.


• Mark the hinge "L" holes (pencil or an awl) to the shutter. Attach the hinge half using two #8 pyramid head screws.


• Repeat steps 4 & 5 and attach both the pintle plates to the casing using only one screw.


• Check that movement is square and parallel. If satisfactory, hang the mating shutter. Inspect both shutters in the closed position. Re-align if necessary.


• While closed, install the remaining screws in both the "L" and pintle plates. It may be easier to lift the shutter off the pintles to install the remaining screws.
