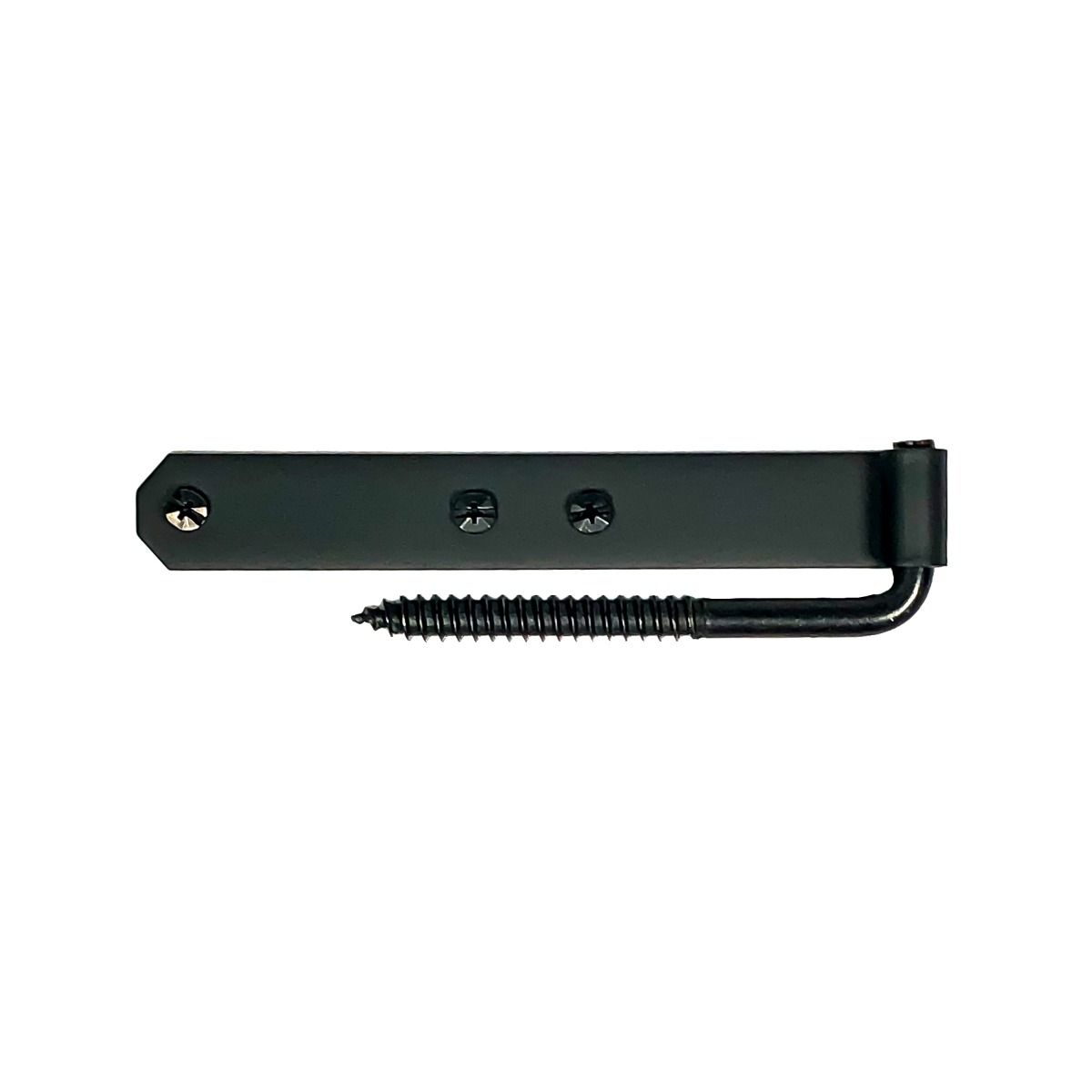

Acorn AKBBR 6-5/8" Flush Connecticut Shutter Hinge

Acorn AKBBR 6-5/8" Flush Connecticut Shutter Hinge Set offers a blend of practicality and style for your window treatments. Crafted from durable stainless steel and finished with a sleek matte black paint, these hinges are designed to withstand the elements while adding a touch of elegance to any exterior. Each set includes four hinges, sufficient for one window with two shutters, making installation straightforward and efficient. Measuring 6-5/8" x 1", these flush hinges feature a lift-off design that facilitates easy hanging and removal of shutters, providing convenience when it comes to maintenance or seasonal adjustments. The set also includes a robust 4-7/8" long stainless steel pintle, ensuring a secure attachment to your wood frame or brick applications, with anchors included for added stability. Additionally, all screws provided are made from stainless steel, and the package includes 12 #8 x 3/4" pyramid head screws for a complete installation. For those needing extra screws, Acorn offers the ASRB9 for purchase. These hinges not only enhance functionality but also elevate the aesthetic appeal, making them an ideal choice for discerning homeowners and building professionals alike.

6-5/8" Flush Connecticut Shutter Hinge Set

AKBBR - 6-5/8" FlushConnecticut Shutter Hinge, Set

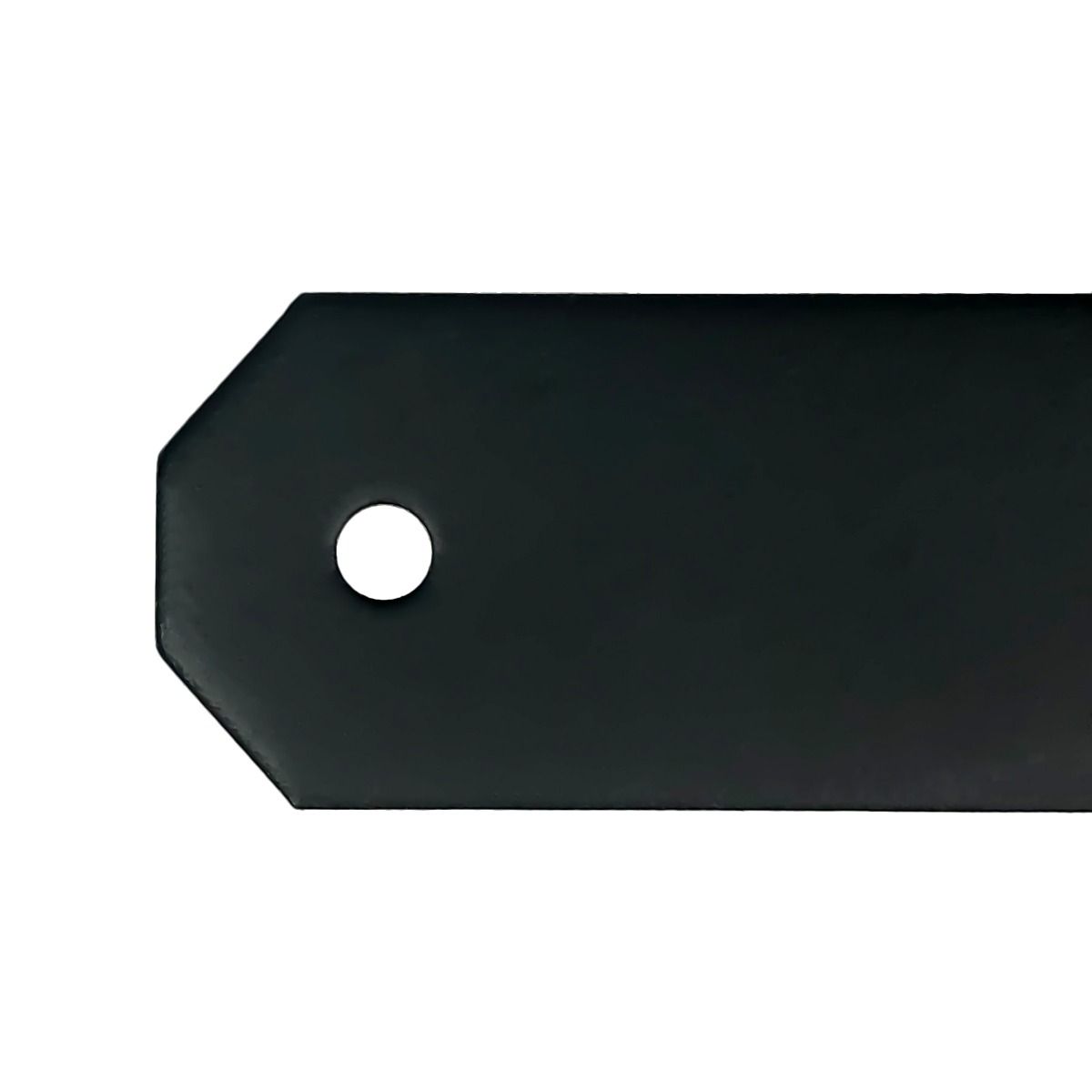

• Made of stainless steel and finished with matte black paint

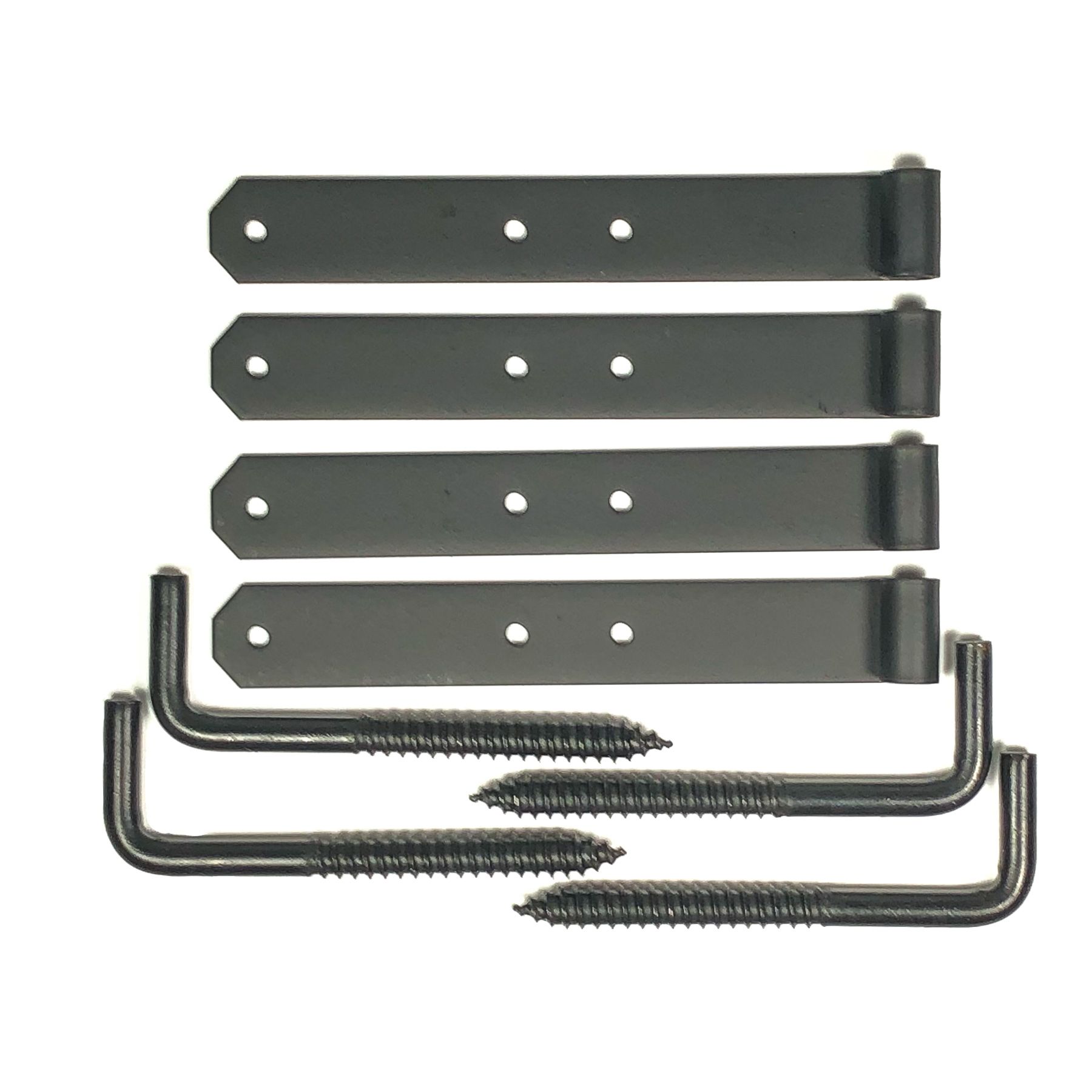

• Sold in sets of 4, one set is used for one window with 2 shutters


• For wood frame or brick applications, anchors included

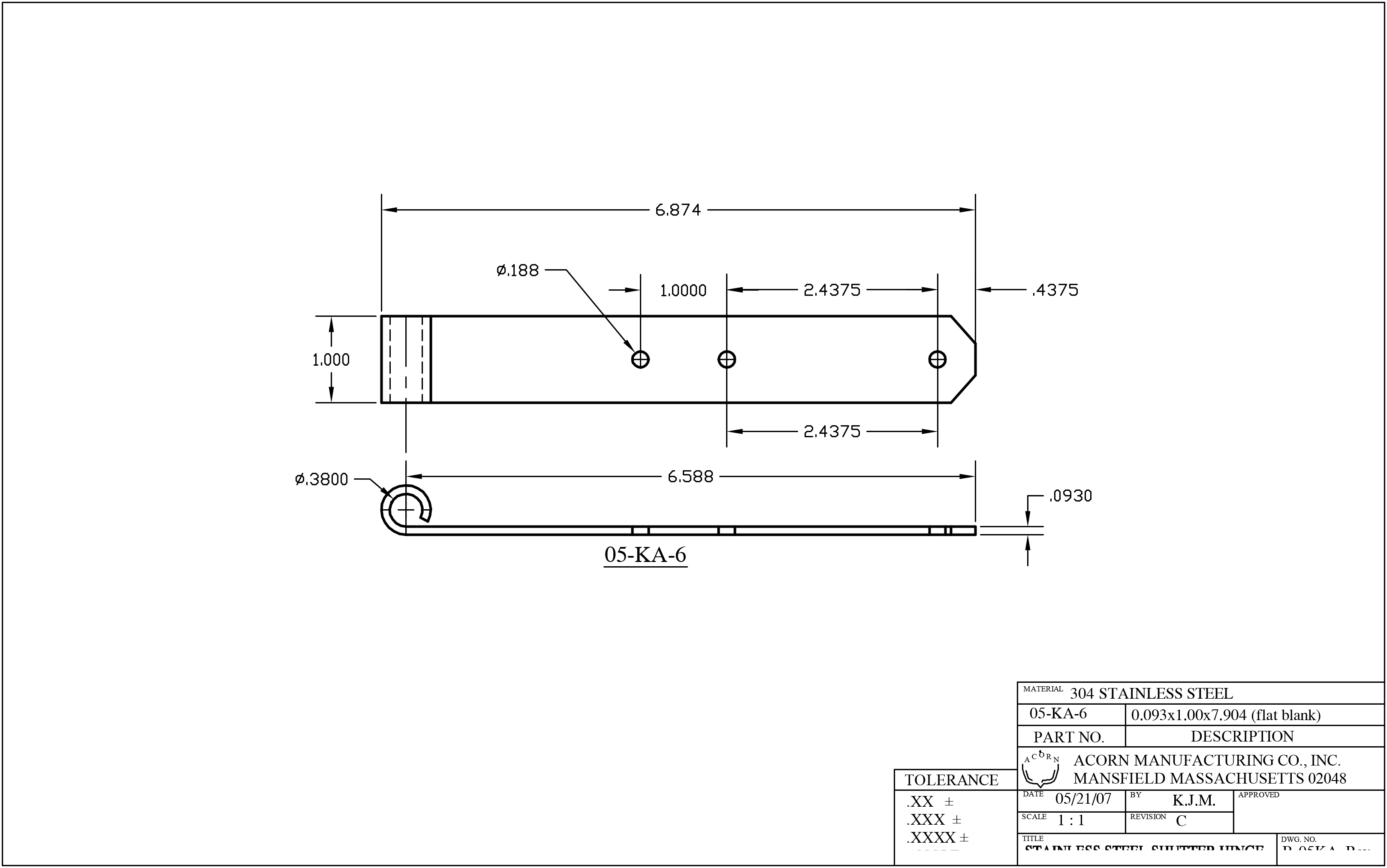

• 6-5/8" x 1" hinge

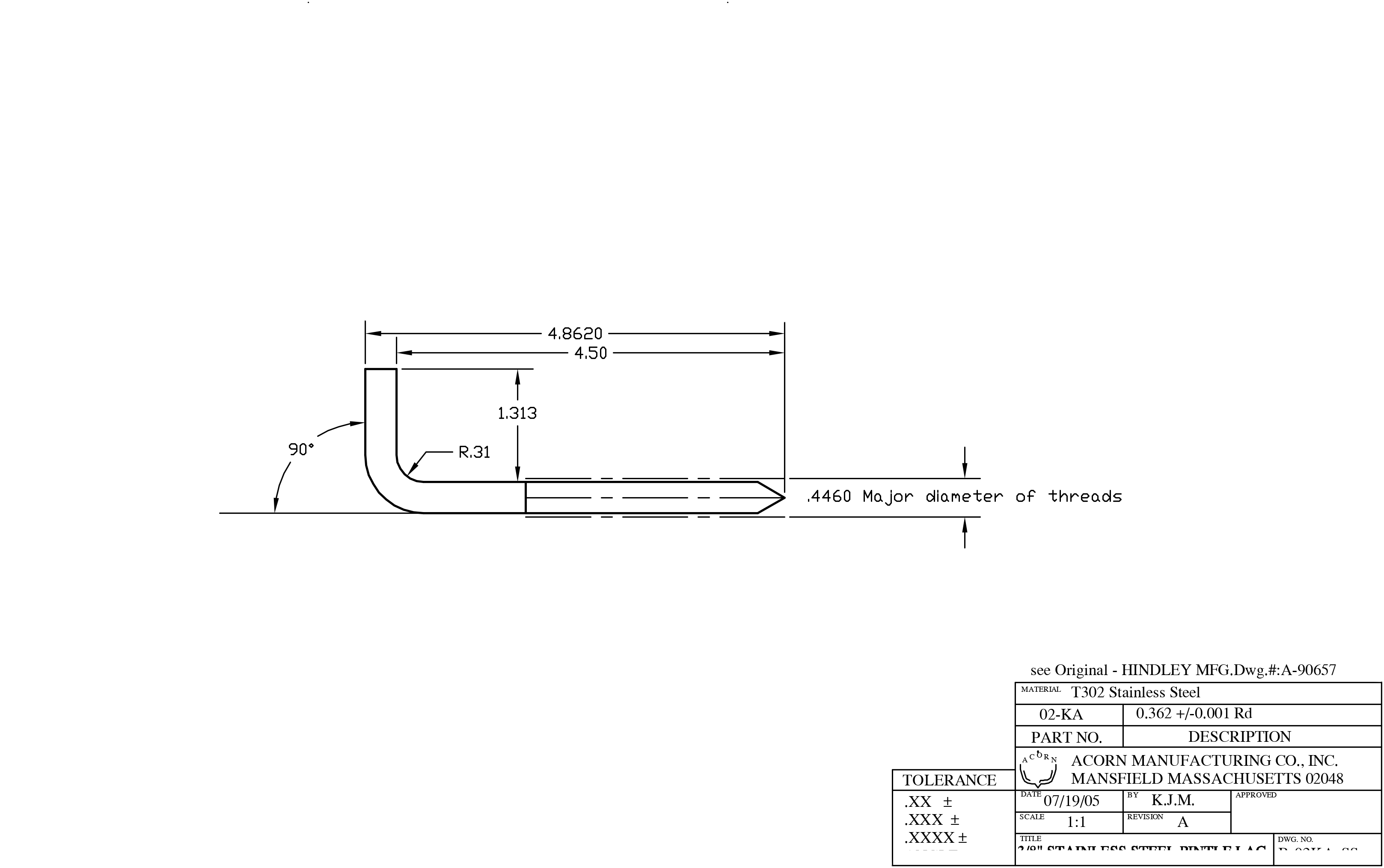

• 4-7/8" long 3/8" stainless steal pintle

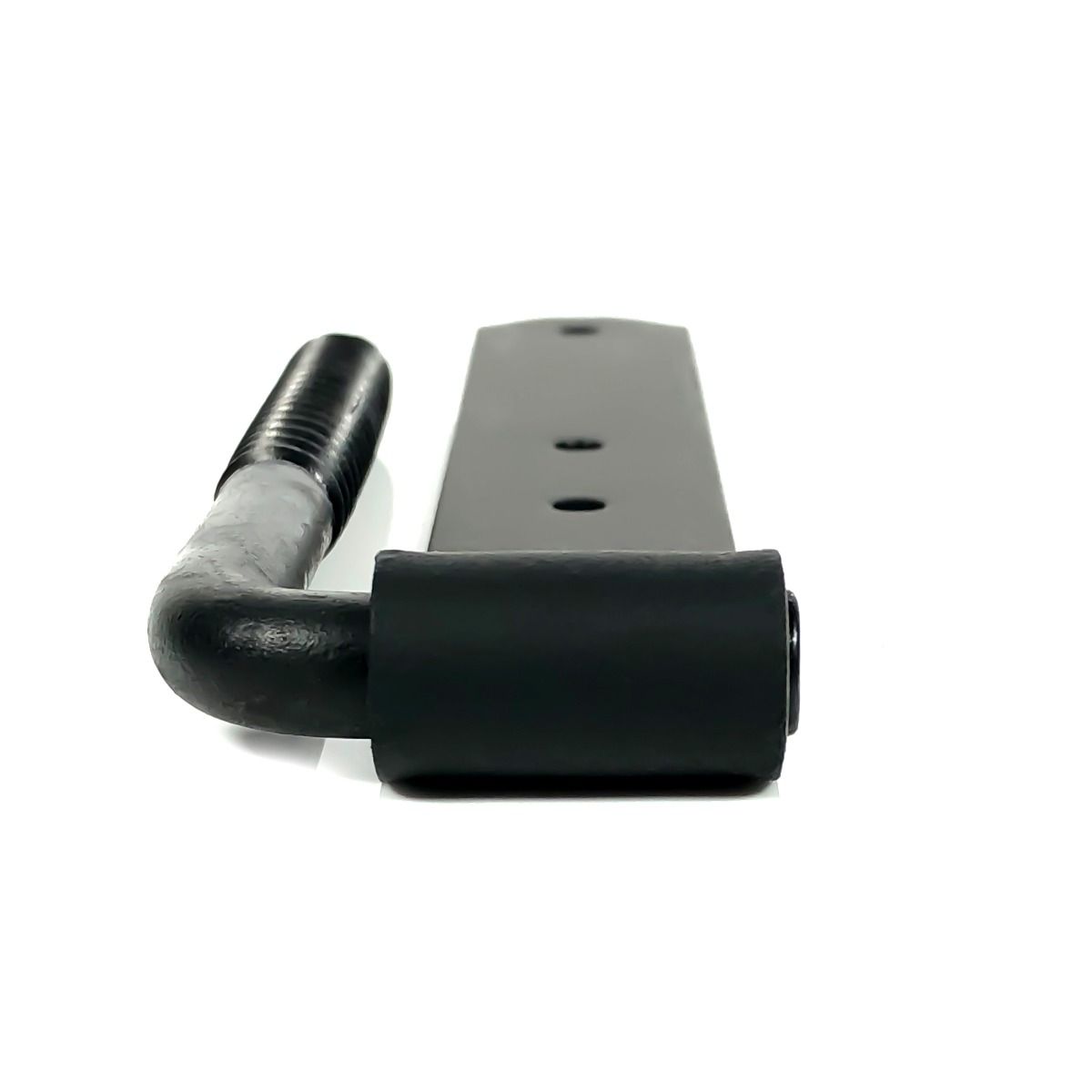

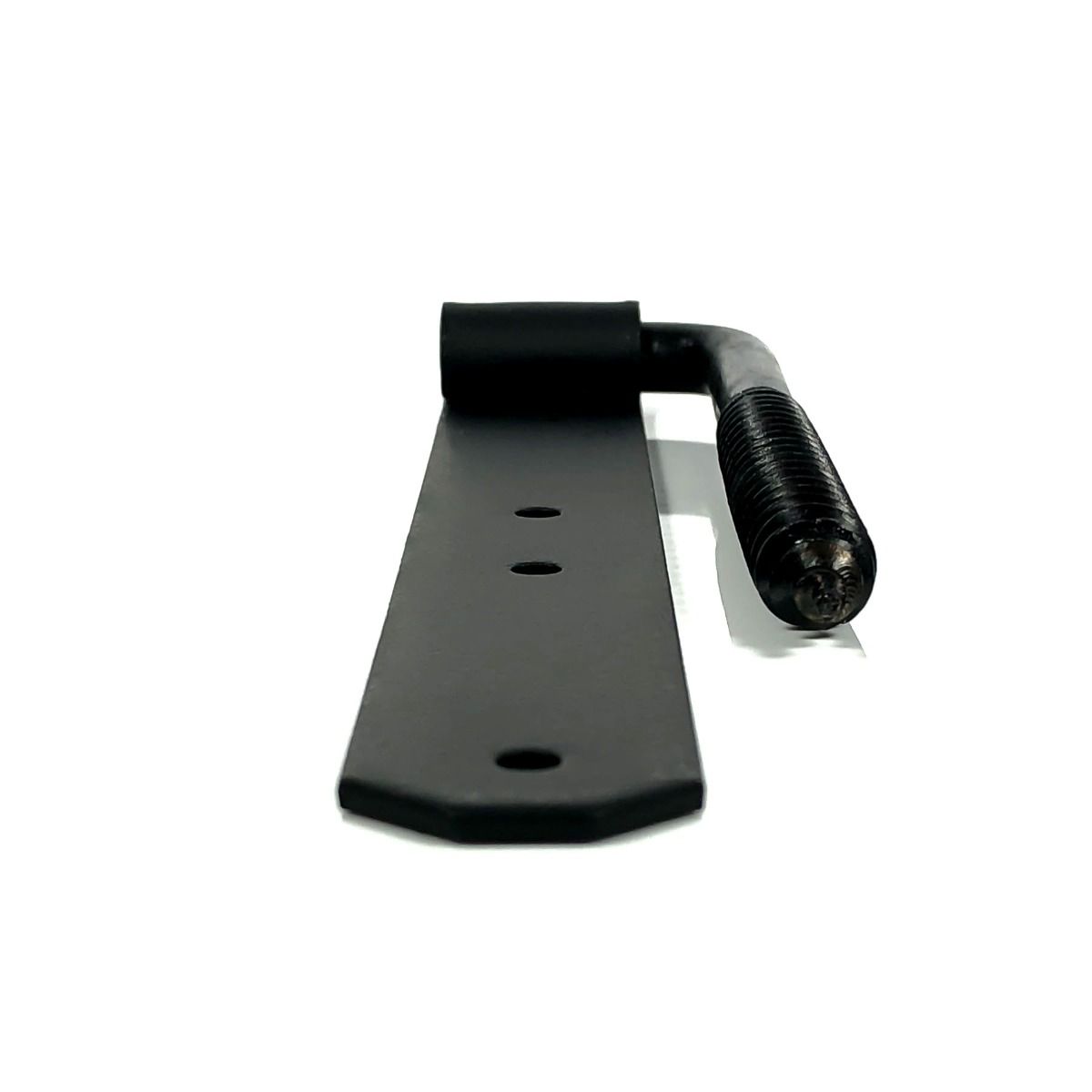

• Lift off design for easy hanging and removal of shutters


• All screws made from stainless steel


• 12, #8 x 3/4" pyramid head screws included


• Need extra screws? OrderASRB9

Installation Tips

• Predrill with 7/64" drill bit for soft wood or 1/8" drill bit for hardwood


• Hand tighten screws, do not use power tools with screws.


• When installing decorative hardwre use hand tools in good condition

Installation Instructions

• Holding a shutter and hinge in position, note their location to the window casing and sill.


• The location of the "L" half of the hinge should be central to the upper and lower shutter rails. Align the pintle plate to solid window casing.


• Pintle mounting screws should extend into the casing. Old construction may require longer screws to fasten to framing.


• Position the pintle (pins pointing upward) on the exterior window casing.


• Mark the hinge "L" holes (pencil or an awl) to the shutter. Attach the hinge half using two #8 pyramid head screws.


• Repeat steps 4 & 5 and attach both the pintle plates to the casing using only one screw.


• Check that movement is square and parallel. If satisfactory, hang the mating shutter. Inspect both shutters in the closed position. Re-align if necessary.


• While closed, install the remaining screws in both the "L" and pintle plates. It may be easier to lift the shutter off the pintles to install the remaining screws.
