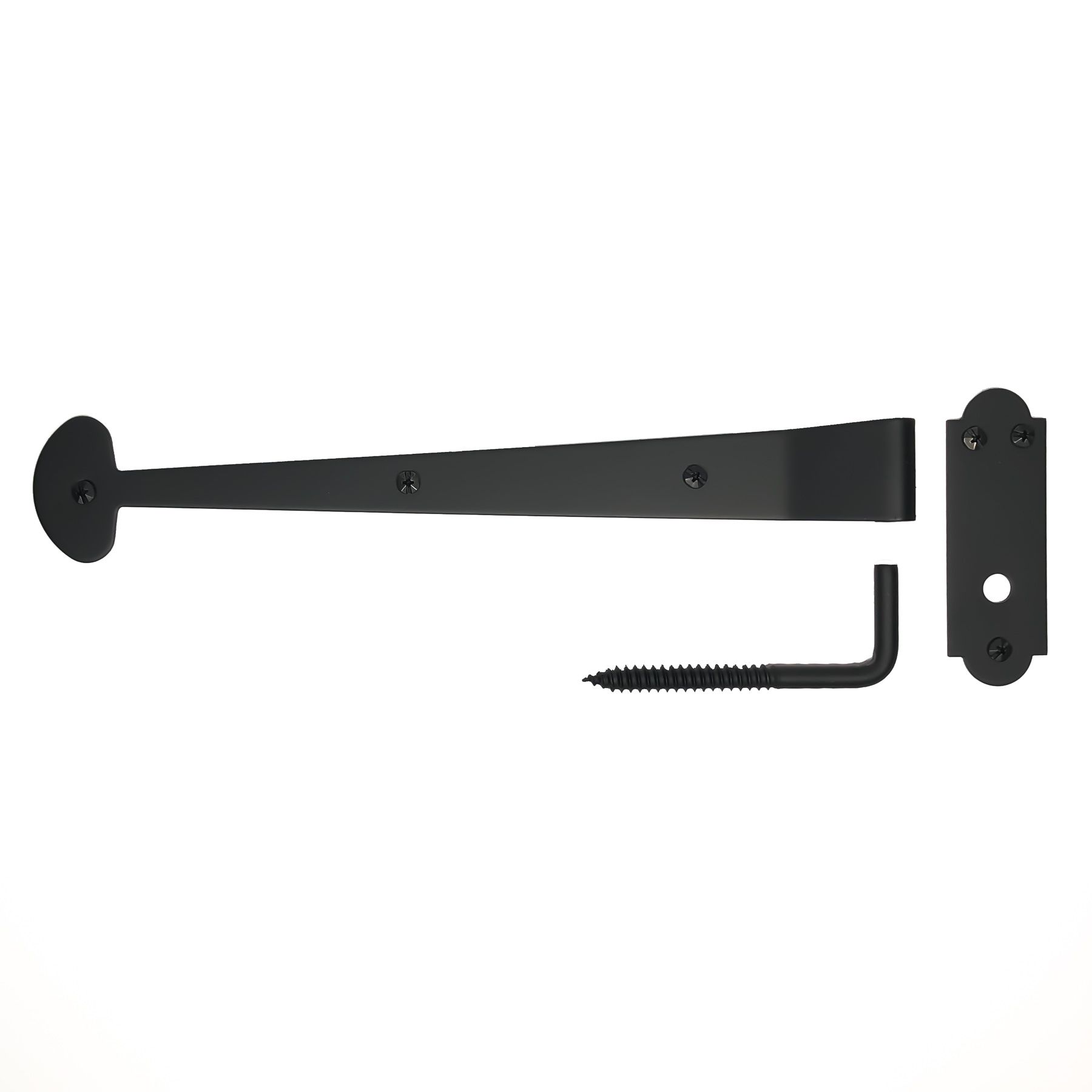

Acorn AKFBP Flush Bean Adjustable Pintle Shutter Strap Hinge

Acorn AKFBP Flush Bean Shutter Strap Hinge & Adjustable Pintle combines functionality and elegance for your shutter hardware needs. Crafted with a smooth texture and a sophisticated matte black finish, this hinge is designed to enhance both traditional and contemporary aesthetics. Measuring 13-3/8 inches from barrel to tip and 1-1/2 inches wide at the barrel, it provides robust support for your left or right-hand shutters. The lift-off design allows for effortless hanging and maintenance, making it a practical choice for any homeowner or building professional. With a pintle size of 4-7/8 inches long and 3/8 inches wide, it securely holds the shutter in place while allowing for smooth operation. Each hinge comes with six #8 x 3/4 inch stainless steel pyramid head screws and anchors suited for brick applications, ensuring that installation is straightforward and reliable. Proudly made in the USA, the Acorn AKFBP not only showcases superior craftsmanship but also stands as a testament to quality and durability. Sold individually, this hinge is an essential addition to your architectural hardware collection, providing the perfect balance of style and practicality for any shutter design project.

Flush Bean Shutter Strap Hinge adjustable pintle

AKFBP - Flush Bean Shutter Strap Hinge & Adjustable Pintle

• Smooth Texture


• Matte black finish

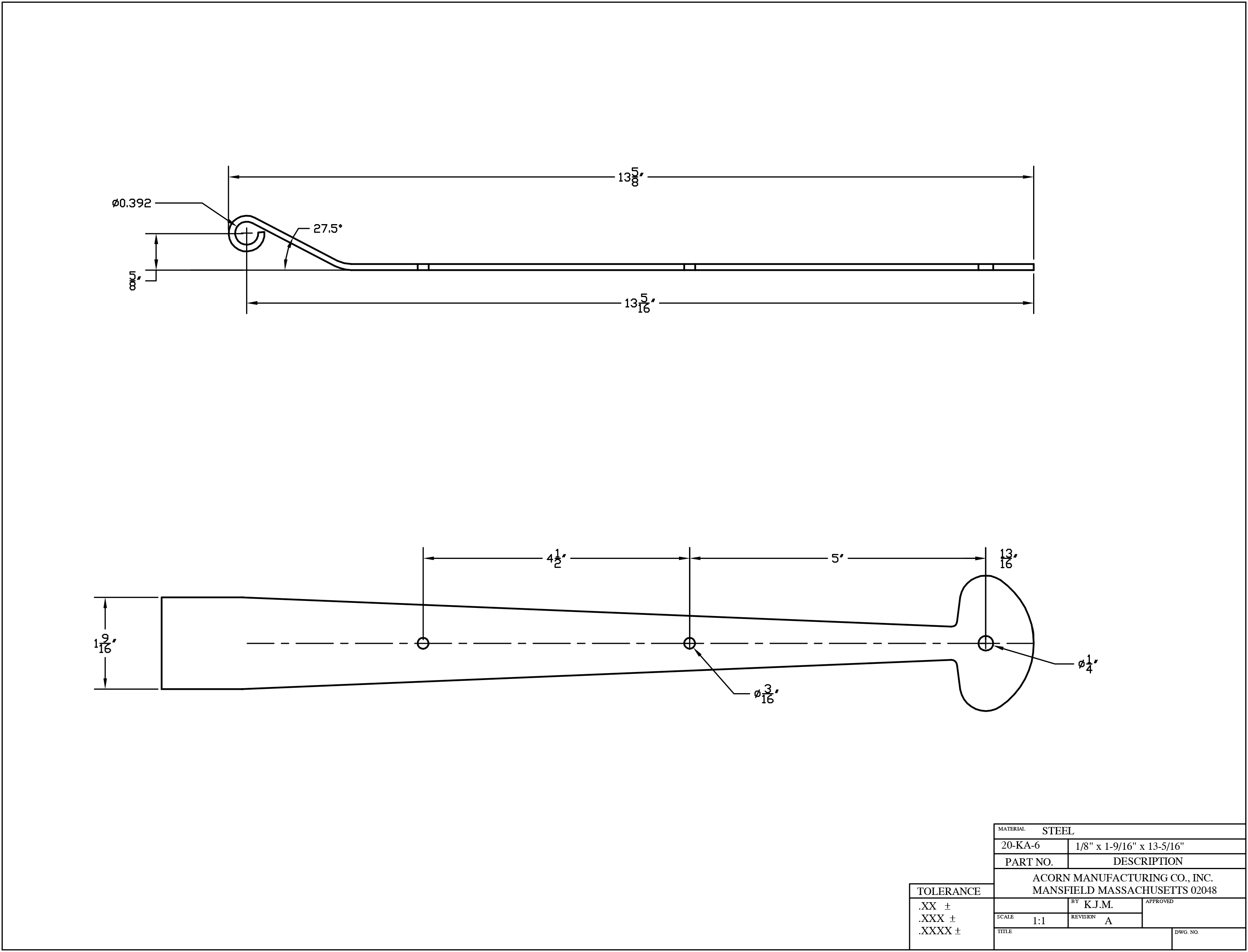

• 13-3/8" from barrel to tip


• 1-1/2" wide at barrel

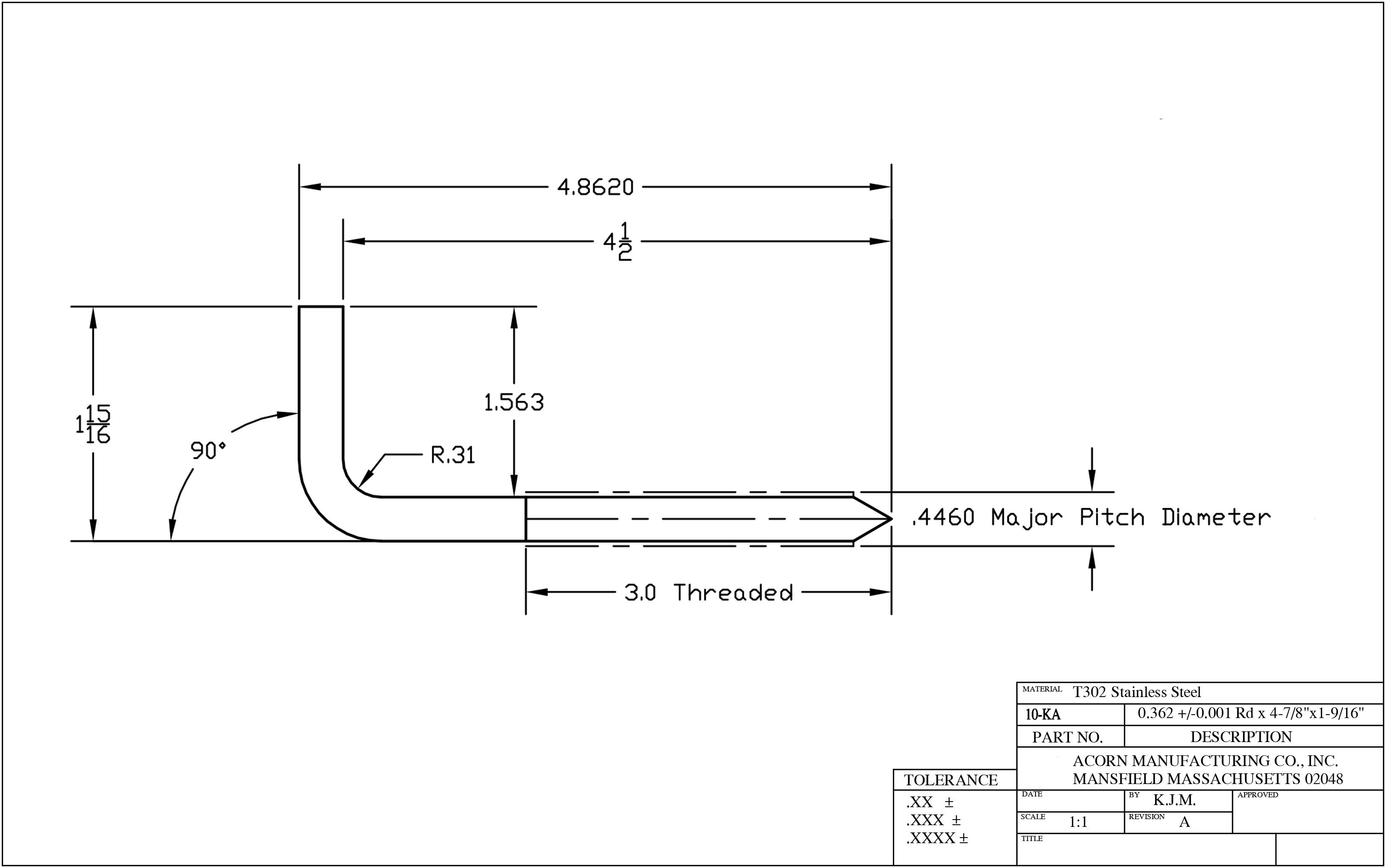

• 4-7/8" long x 3/8" pintle


• Lift off design allows easy hanging


• Used for left or right hand shutters


• 6, #8 x 3/4" stainless steel pyramid head screws included


• Anchors included for brick applications


• Sold by each


• Made in the USA

Installation Tips
