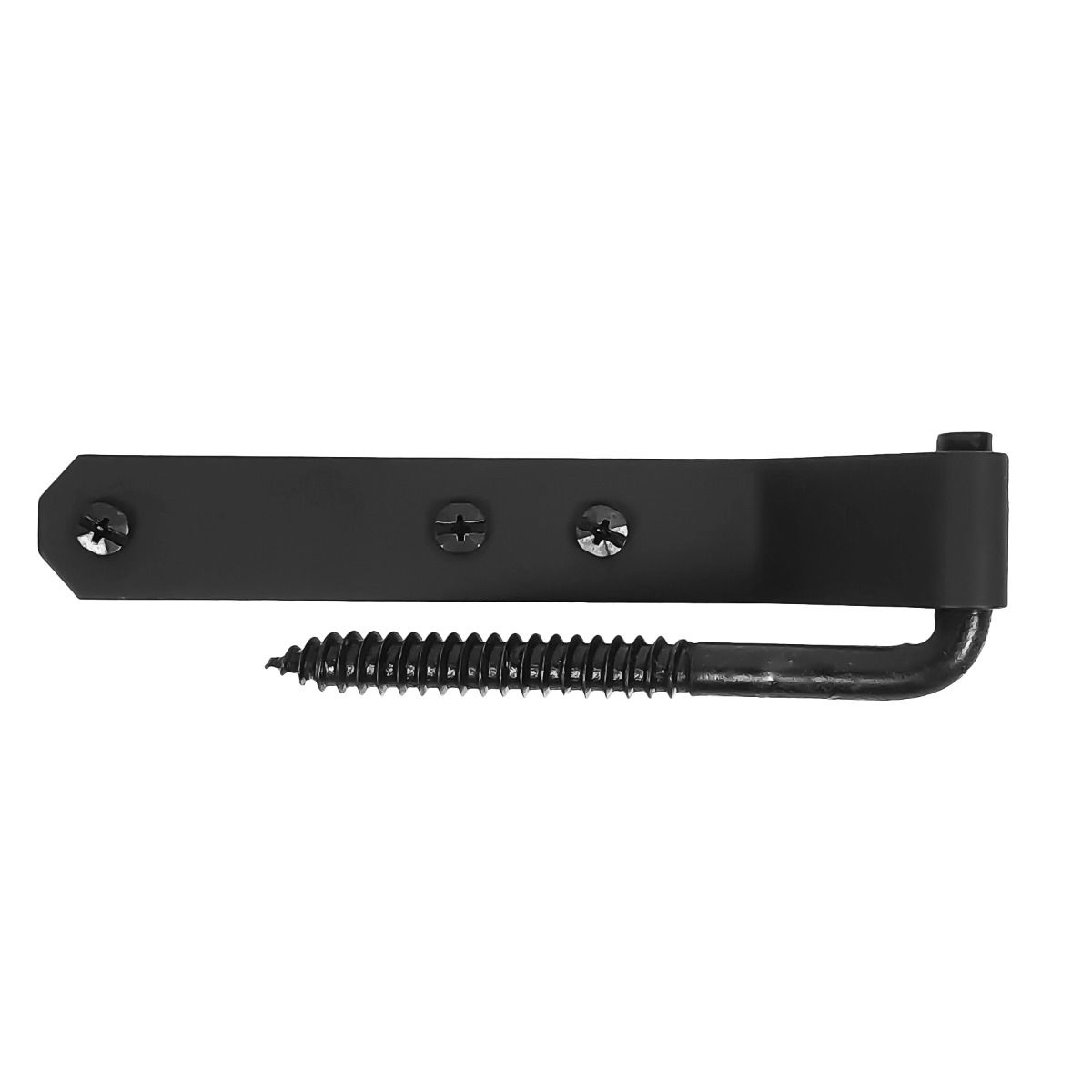

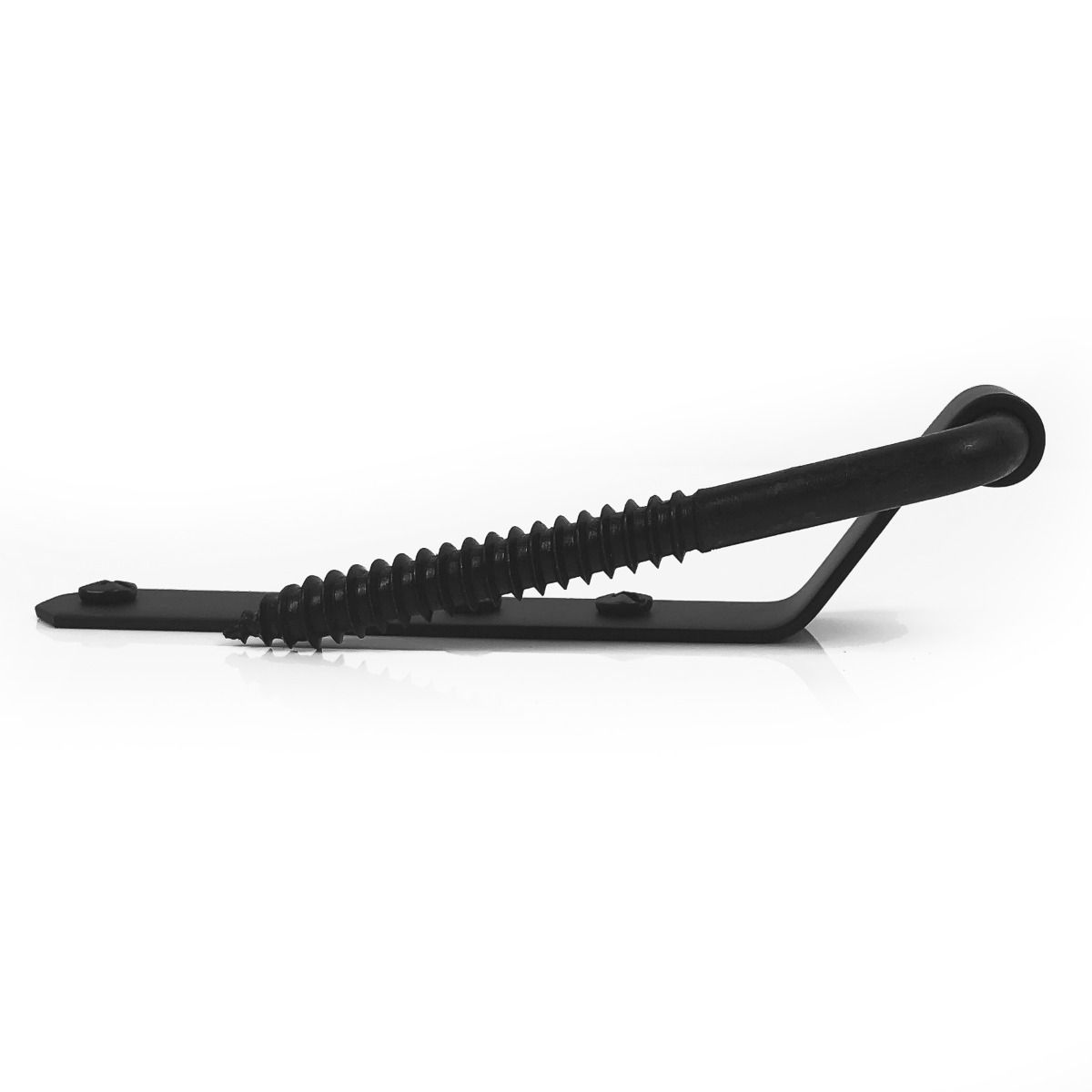

Acorn AKMBR 1-1/4" Offset Connecticut Shutter Hinge

Acorn AKMBR 1-1/4" Offset Connecticut Shutter Hinge Set offers a perfect blend of durability and style for your window treatments. Crafted from stainless steel and finished with a sleek matte black paint, these hinges enhance the aesthetic of any home while ensuring long-lasting functionality. Each set includes four hinges, designed to accommodate two shutters for one window, making installation straightforward and efficient. Measuring 6-1/4" x 1", these offset hinges feature a lift-off design that allows for easy hanging and removal of shutters, providing convenience when it comes to maintenance or seasonal changes. The included 4-7/8" long 3/8" stainless steel pintle ensures a secure fit for wood frame or brick applications, with anchors provided for a seamless installation process. Each set comes complete with twelve #8 x 3/4" pyramid head screws, all made from stainless steel to resist corrosion and maintain their integrity over time. For added flexibility, additional screws can be ordered separately as needed. Whether you're a building professional or a knowledgeable homeowner, the Acorn AKMBR shutter hinge set is an excellent choice for enhancing both the functionality and charm of your shutters.

1-1/4" Offset Connecticut Shutter Hinge Set

AKMBR - 1-1/4" Offset Connecticut Shutter Hinge, Set

• Made of stainless steel and finished with matte black paint

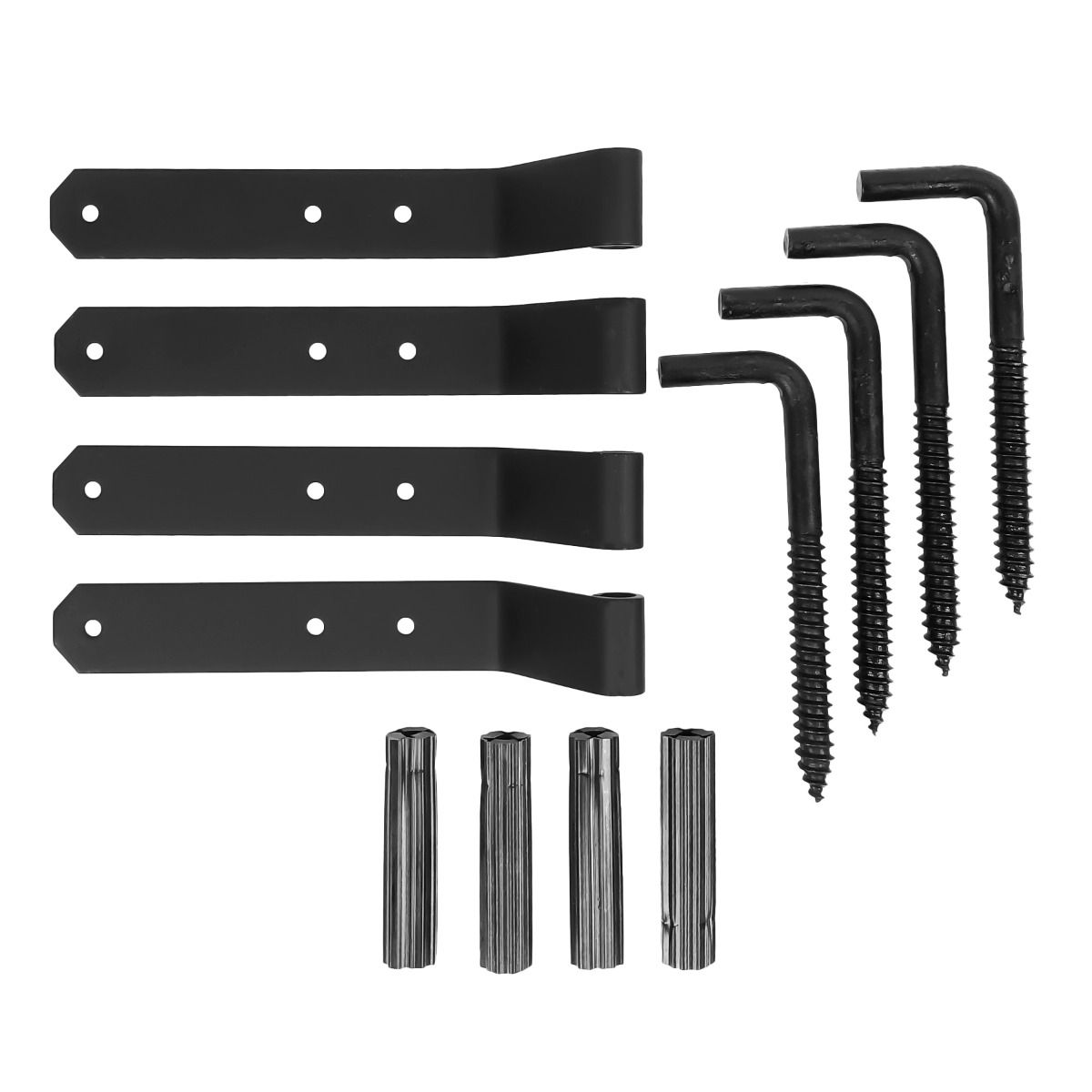

• Sold in sets of 4, one set is used for one window with 2 shutters


• For wood frame or brick applications, anchors included

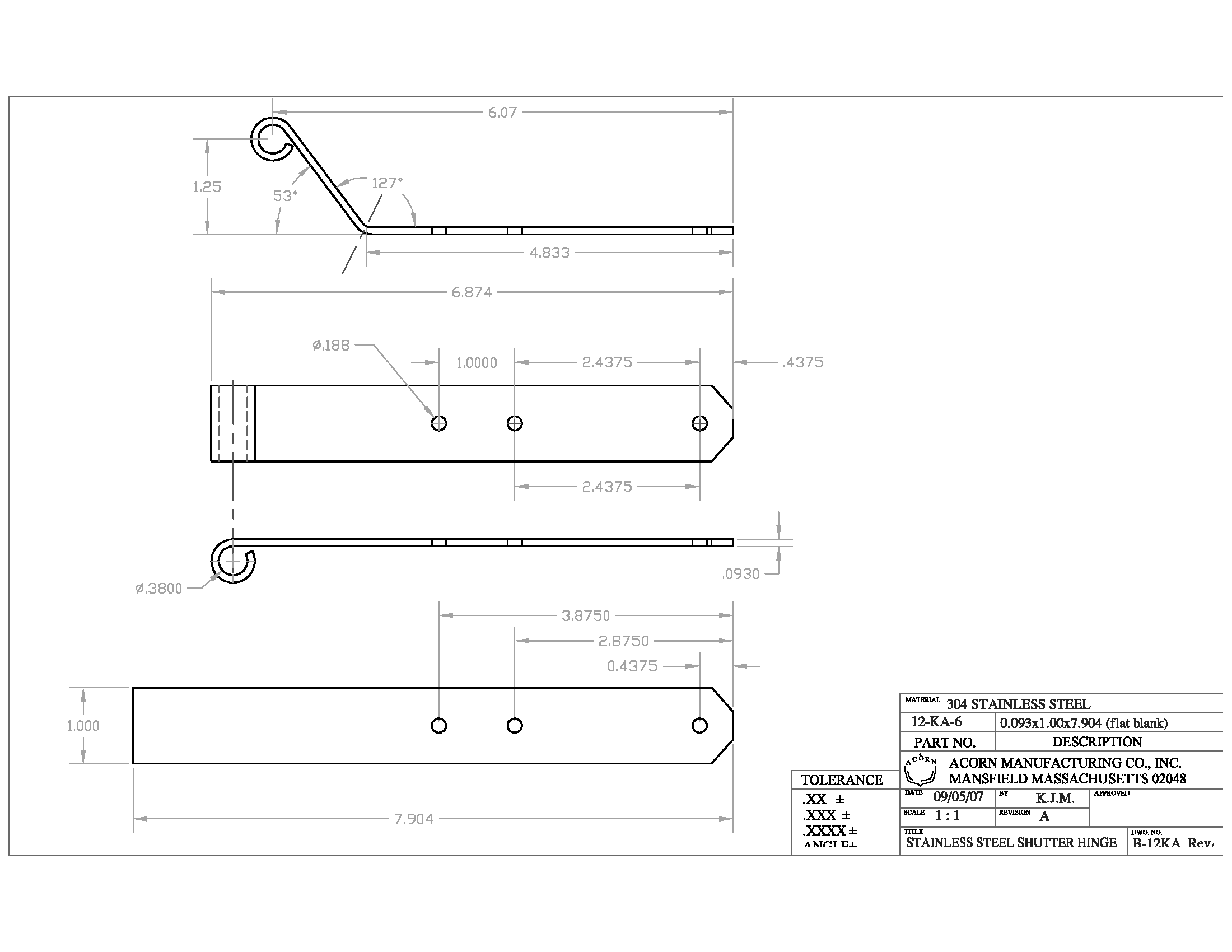

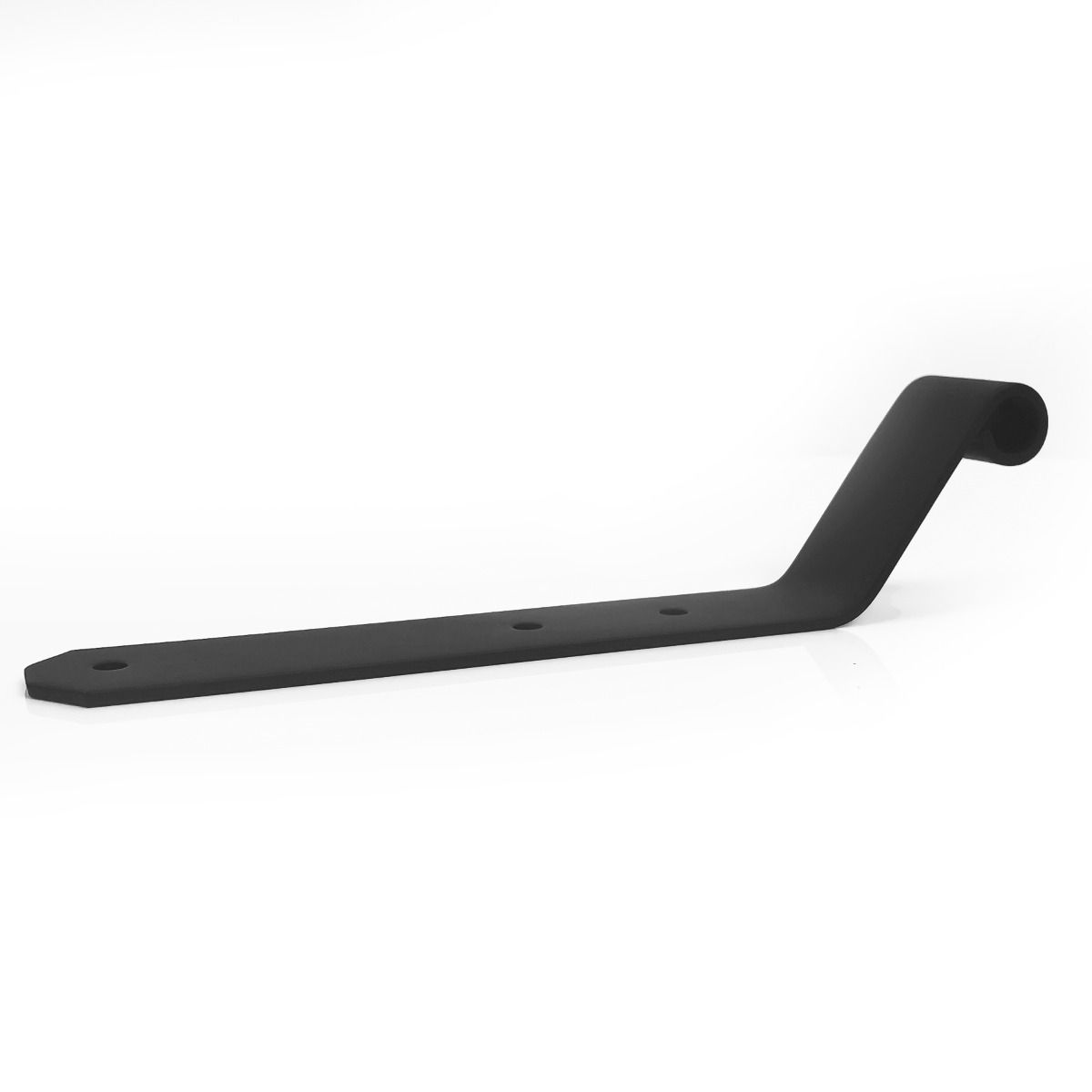

• 6-1/4" x 1" hinge

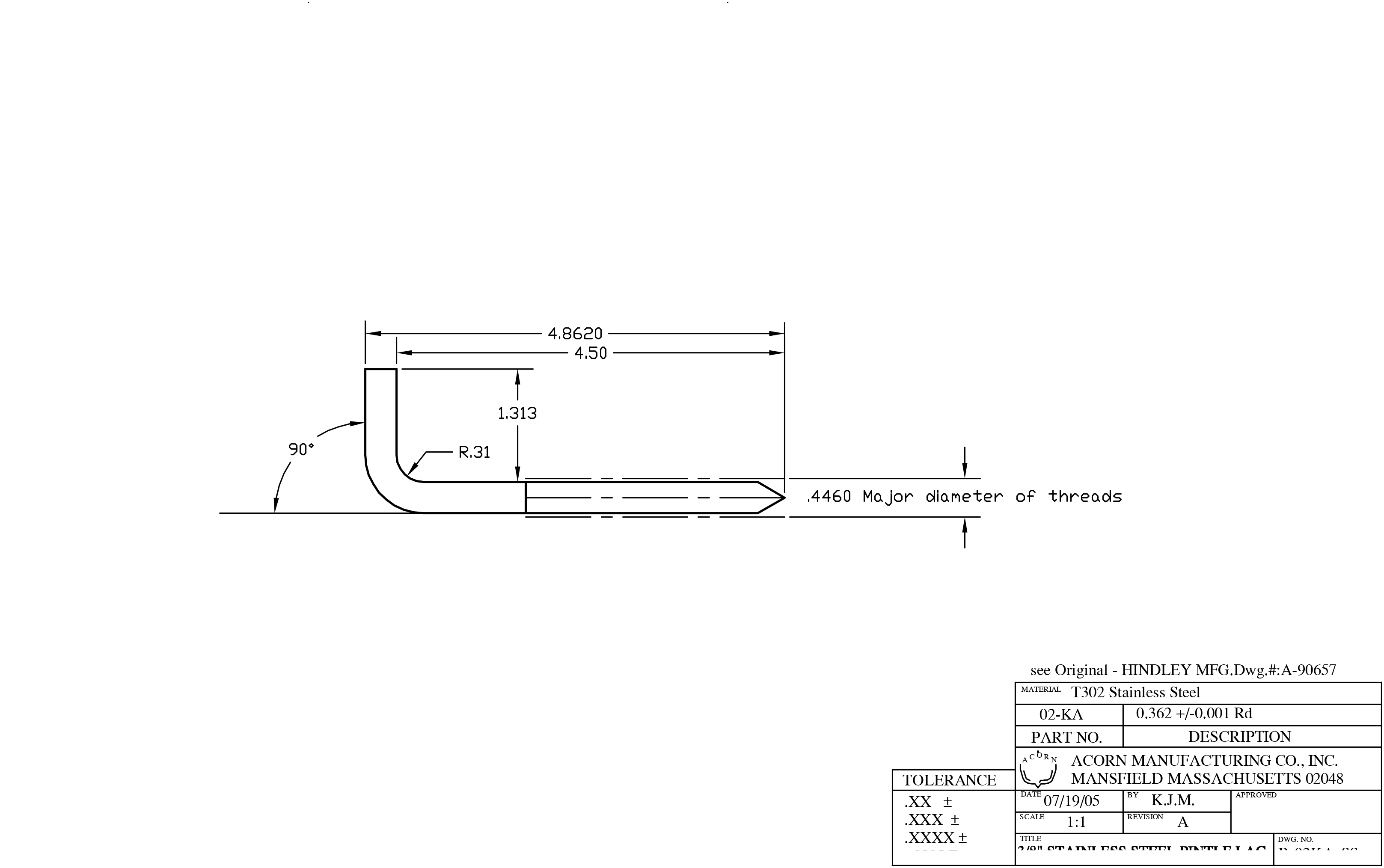

• 4-7/8" long 3/8" stainless steal pintle


• Lift off design for easy hanging and removal of shutters


• All screws made from stainless steel


• 12, #8 x 3/4" pyramid head screws included


• Need extra screws? OrderASRB9

Installation Tips

• Predrill with 7/64" drill bit for soft wood or 1/8" drill bit for hardwood


• Hand tighten screws, do not use power tools with screws.


• When installing decorative hardwre use hand tools in good condition

Installation Instructions

• Holding a shutter and hinge in position, note their location to the window casing and sill.


• The location of the "L" half of the hinge should be central to the upper and lower shutter rails. Align the pintle plate to solid window casing.


• Pintle mounting screws should extend into the casing. Old construction may require longer screws to fasten to framing.


• Position the pintle (pins pointing upward) on the exterior window casing.


• Mark the hinge "L" holes (pencil or an awl) to the shutter. Attach the hinge half using two #8 pyramid head screws.


• Repeat steps 4 & 5 and attach both the pintle plates to the casing using only one screw.


• Check that movement is square and parallel. If satisfactory, hang the mating shutter. Inspect both shutters in the closed position. Re-align if necessary.


• While closed, install the remaining screws in both the "L" and pintle plates. It may be easier to lift the shutter off the pintles to install the remaining screws.
