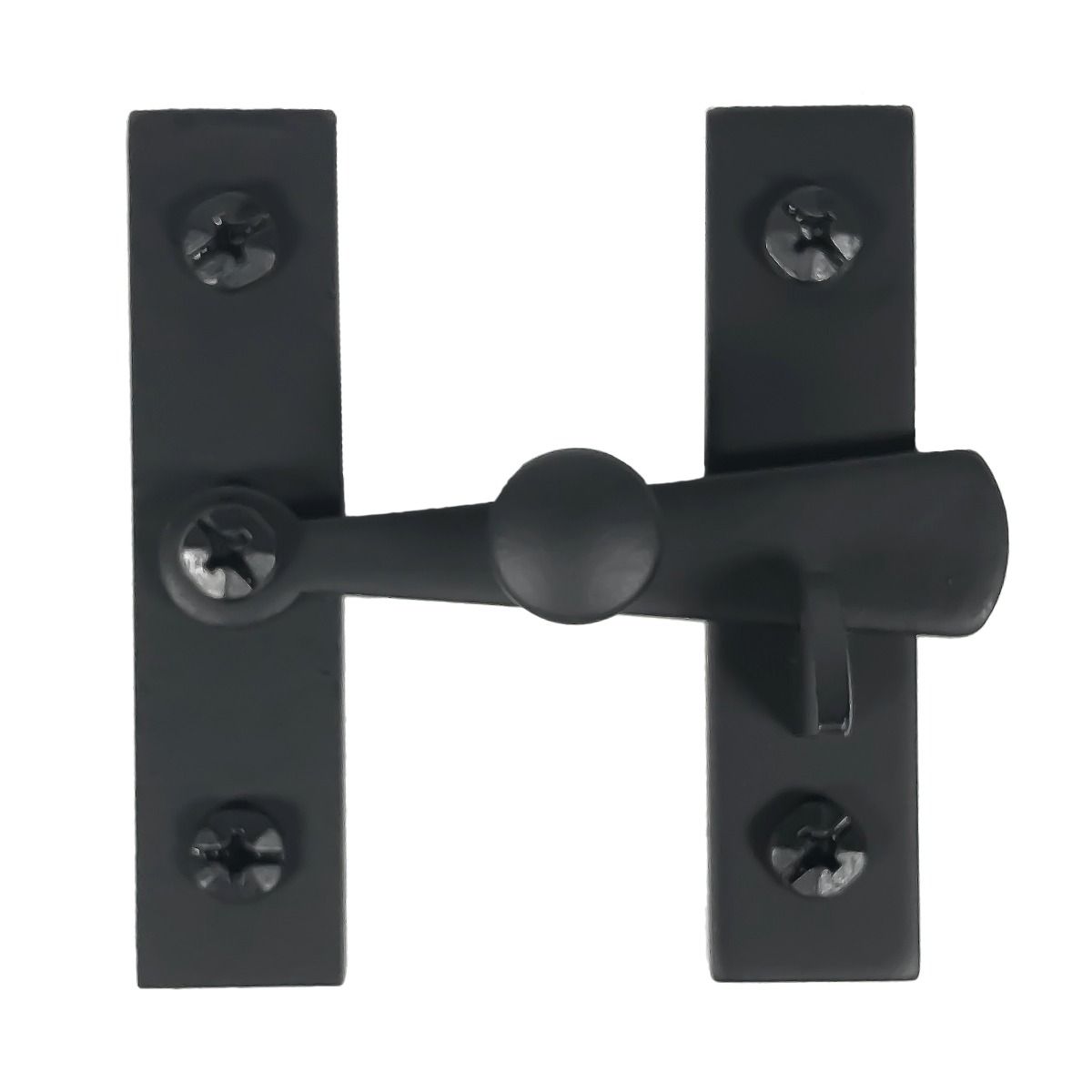

Acorn ALJBR Smooth Knob Bar Cabinet Latch

Acorn ALJBR Smooth Knob Bar Cabinet Latch combines functionality with a touch of elegance, making it an ideal choice for flush applications. Crafted from durable steel, this latch features a sophisticated matte black finish that seamlessly complements a variety of decor styles. The latch and lever plates measure 5/8" wide and stand 2-1/8" tall, ensuring a robust fit for your cabinetry needs. The latch bar extends 2-1/2" long, providing reliable security and ease of use with a 5/8" projection that maintains a low profile. Each set includes four #7 x 5/8" screws and one #6 x 7/8" screw for convenient installation, while additional screws can be ordered separately if needed (see AQ2B9 and AQWB9). Proudly made in the USA, the ALJBR is designed to enhance both the aesthetics and functionality of your cabinetry. For best results, predrill with a 7/64" drill bit for hardwood or a 3/32" drill bit for softwood applications, and remember to hand-tighten screws only to ensure a secure fit. With its combination of quality craftsmanship and stylish design, the Acorn ALJBR Smooth Knob Bar Cabinet Latch is the perfect addition to elevate your space.

Smooth Knob Bar Cabinet Latch

ALJBR - Knob & Bar Cabinet Latch

• Made of steel with a matte black finish


• For flush applications


• Latch and lever plates, 5/8" wide, 2-1/8 height"


• Latch bar, 2-1/2" long


• 5/8" projection


• 4, #7 x 5/8" and 1, #6 x 7/8" screws included


• Need extra screws? Order:AQ2B9andAQWB9


• Made in the USA

Installation Tips

• Predrill with 7/64" drill bit for hardwaood applications and 3/32 for soft wood applications.


• Hand tighten screws only.
