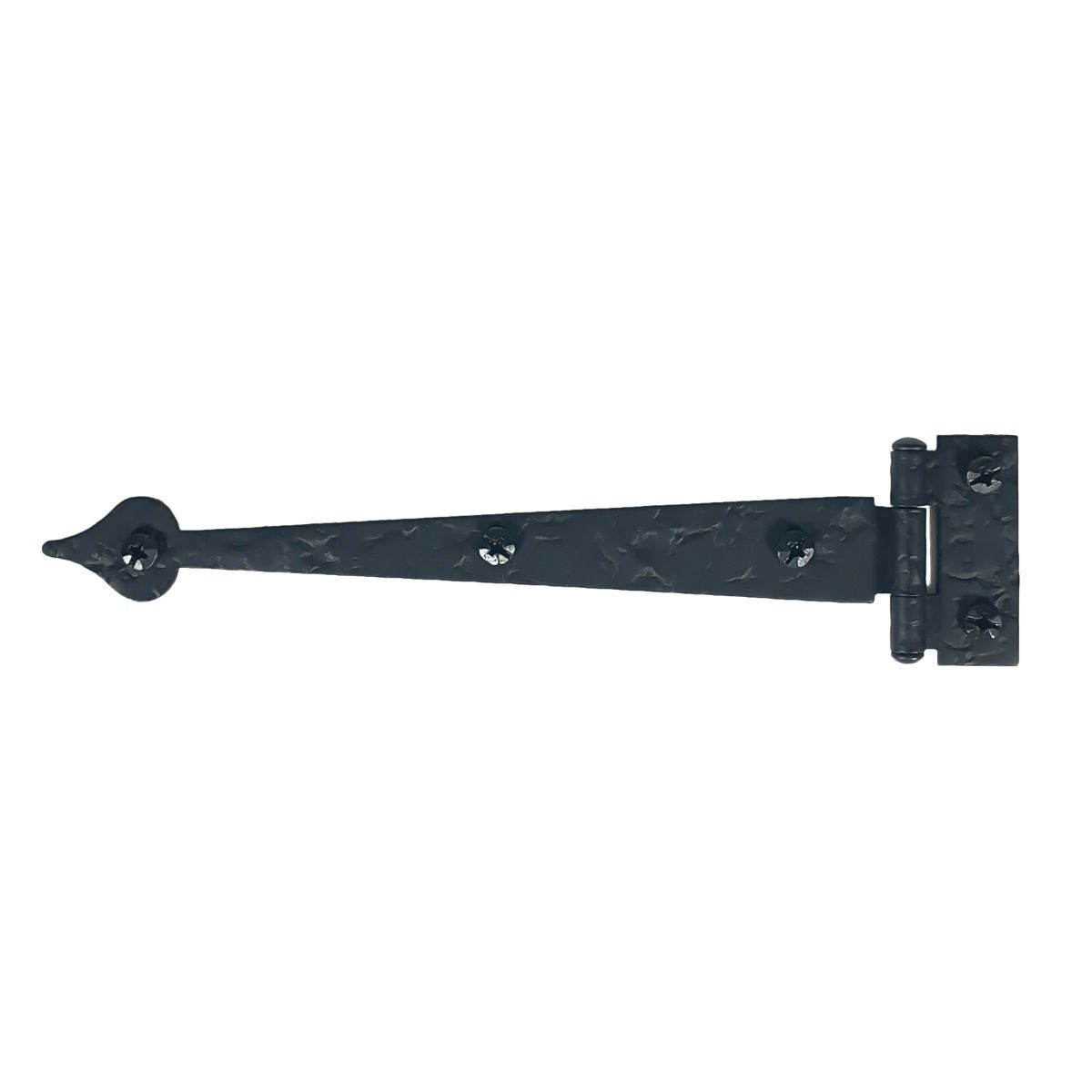

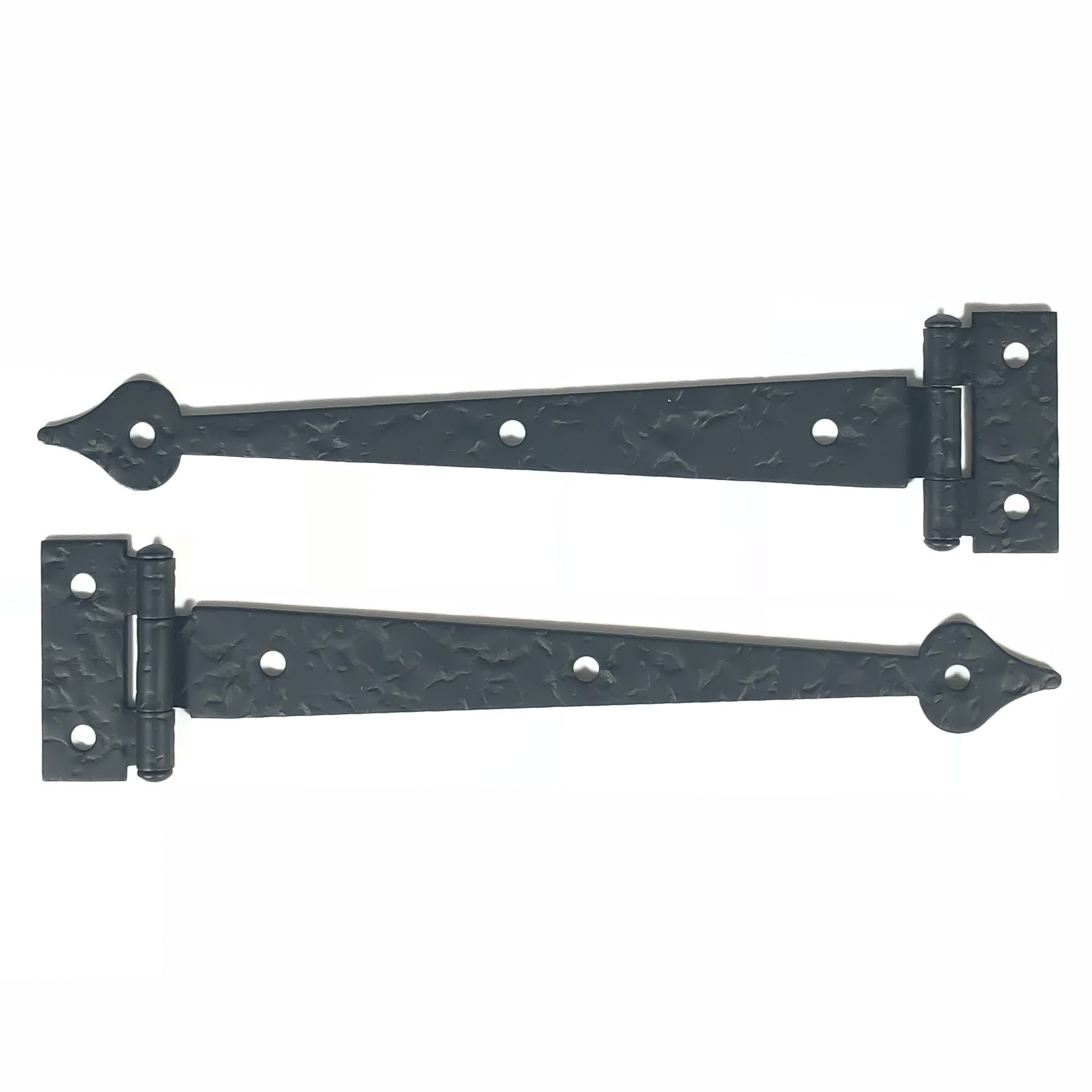

Acorn RI4BQ 6-1/2" Heart Cabinet Strap Hinge, Pair, Rough Finish

Acorn RI4BQ 6-1/2" Heart Cabinet Strap Hinge, Pair, Rough offers a perfect blend of functionality and rustic charm, making it an ideal choice for both professional builders and discerning homeowners. Crafted from durable steel and finished in a striking matte black, these hinges feature a rough texture that enhances their handcrafted appeal. Designed for versatility, this hinge can accommodate both right and left swinging doors, making it a flexible option for various cabinet applications. With dimensions that include a strap portion measuring 6-5/8" long from the center of the barrel to the end, and hinge pads sized at 5/8" x 1-3/4", they are tailored for flush cabinet doors. The hinge leaves are robust at 0.062" thick, and the barrels at 0.27" thick, ensuring reliable support for doors weighing up to 25 lbs when two hinges are used. Each set comes complete with ten #7 x 5/8" pyramid head screws for easy installation, while additional screws can be ordered separately. Made in the USA, the Acorn RI4BQ hinge combines quality craftsmanship with practical design, making it a reliable choice for enhancing your cabinetry with a touch of timeless elegance.

6-1/2" Heart Cabinet Strap Hinge, Pair, Rough

RI4BQ- 6" Heart Cabinet Strap Hinge, Pair, Rough

• Hinges are made from steel and finished in matte black


• Rough texture


• Can be used for right or left swinging doors.


• Hinge is designed for flush cabinet doors


• Strap portion is 6-5/8" long from center of barrel to end


• Hinge pad is 5/8" x 1-3/4"


• Hinges leaves are 0.062" thick


• Barrells are 0.27" thick


• Includes 10, #7 x 5/8" pyramid head screws, for extra screws orderAQ2B9


• Two hinges hold 25 lbs.


• Made in the USA

Installation Tips

• Predrill with 3/32" drillbit for softwood or 7/64" drillbit for hardwood.


• Hand tighten screws only, do not use power tools to porotect the finish.
