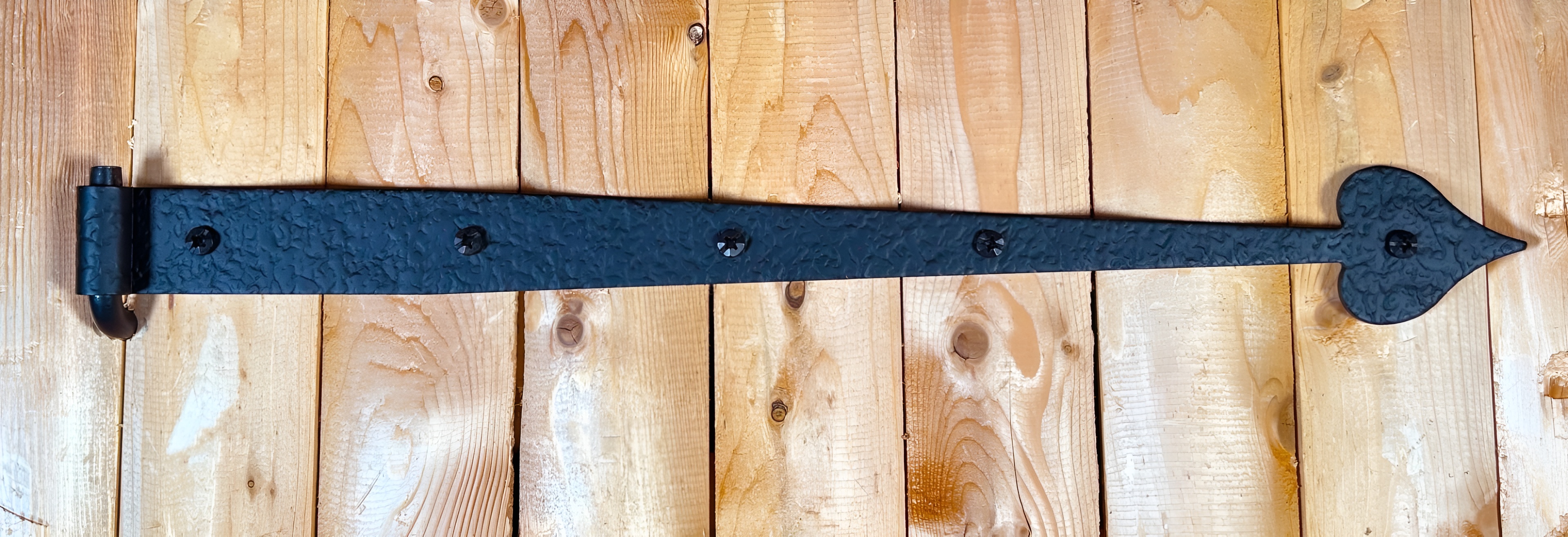

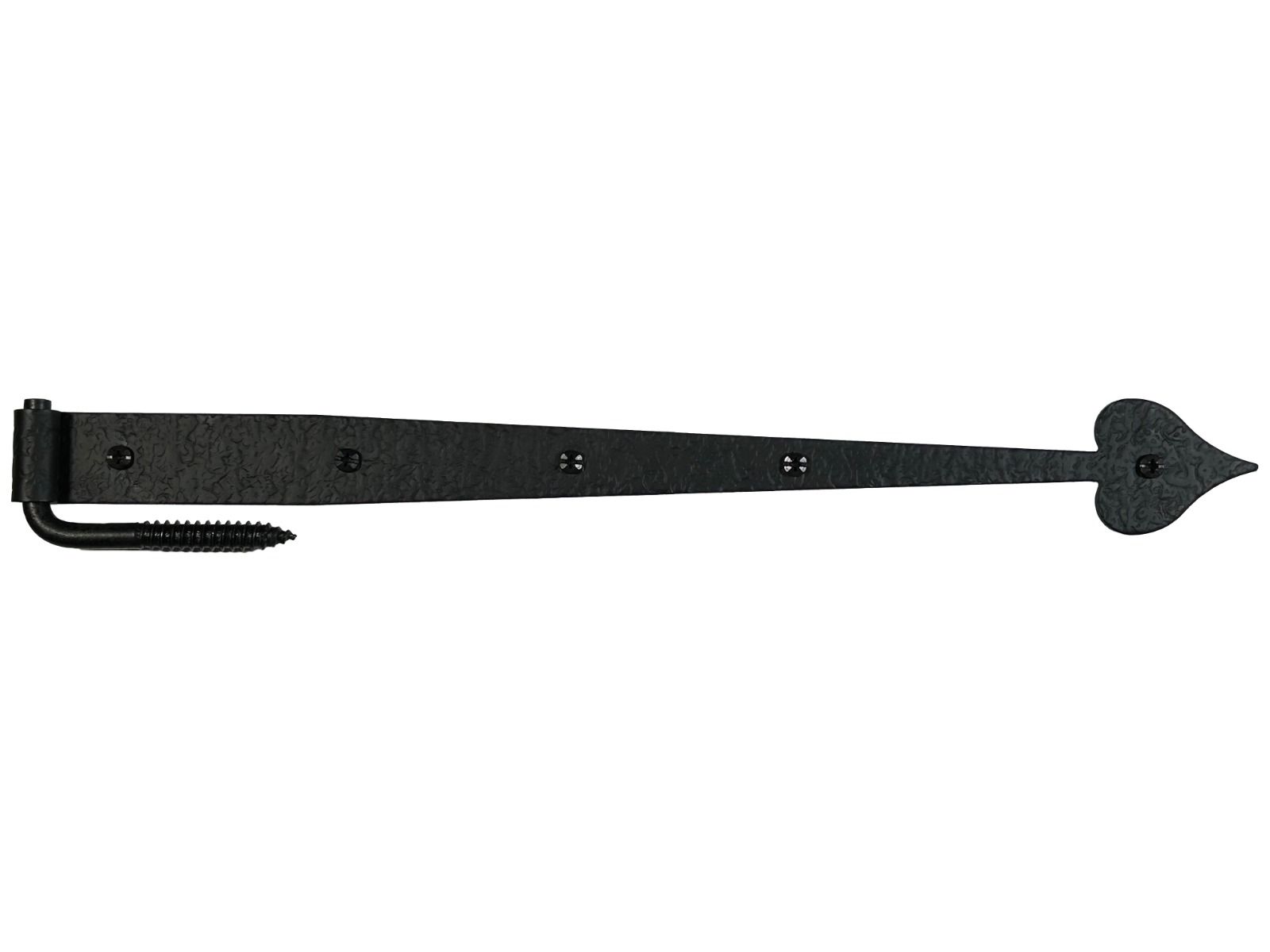

Acorn RIJBP 20-1/2" Rough Heart Gate Hinge Pintle

Acorn RIJBP 20-1/2" Rough Heart Gate Hinge Pintle offers a perfect blend of durability and aesthetic appeal for your gate installations. Crafted from robust steel and finished in a sophisticated matte black, this hinge features a distinctive rough texture that enhances its rustic charm. Measuring 20-1/2" long from the end of the curl, with a width of 1-1/2" at the barrel and 2-1/4" at the heart end, the hinge is designed to accommodate both right and left swinging gates, making it versatile for various applications. With a thickness of 0.155", this hinge is engineered to support gates weighing up to 175 lbs when two hinges are used, ensuring reliable functionality. Included with the hinge is a pintle measuring 2-1/2" x 4-1/2" x 0.445", along with five #12 x 1-1/4" black stainless pyramid head screws for easy installation. Made in the USA, this gate hinge not only provides strength and stability but also adds a touch of elegance to your outdoor space. For optimal installation, predrill with the appropriate size drill bits to protect the finish and ensure a secure fit. Transform your gate with the timeless quality and craftsmanship of Acorn.

20-1/2" Rough Heart Gate Hinge Pintle

RIJBP - Heart Gate Strap Hinge, 20-1/2", Rough

• Hinges are made from steel and finished in matte black


• Rough texture


• Can be used for right or left swinging gates.


• 20-1/2" long from end of curl, 1-1/2" wide at the barrel, and 2-1/4" wide at the heartend


• Hinge is 0.155" thick.

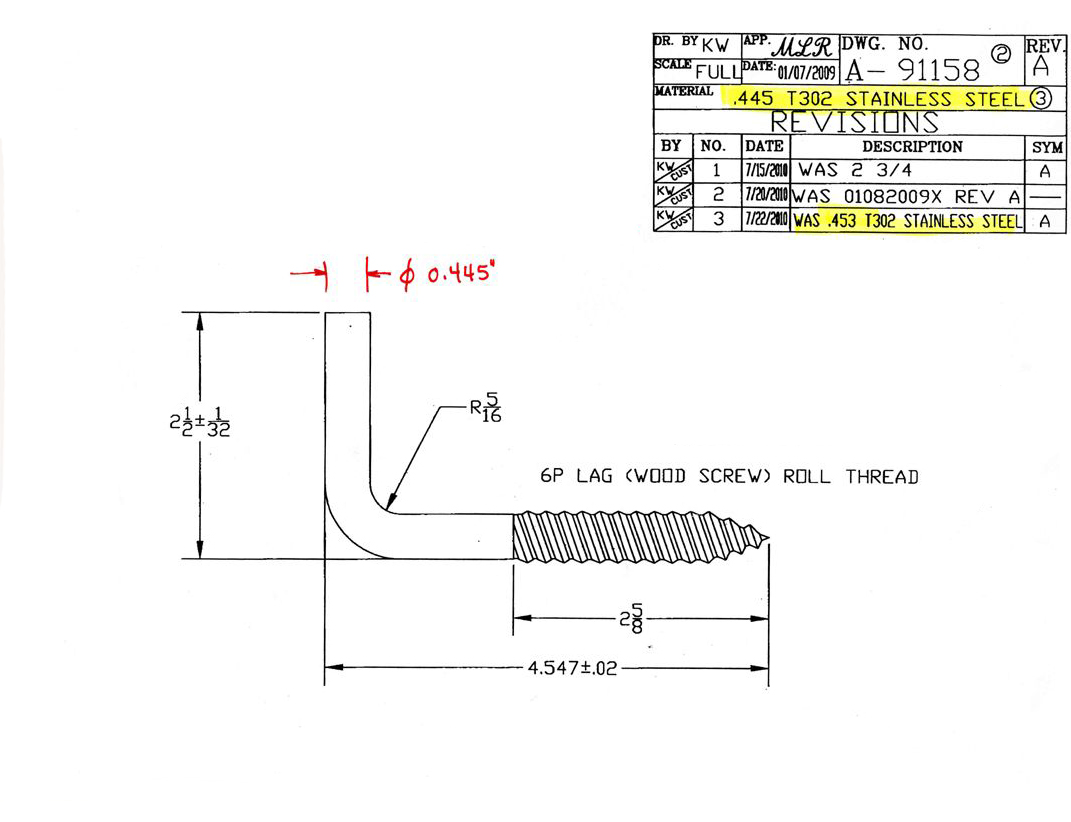

• Pintle 2-1/2" x 4-1/2" x 0.445" pintle


• Includes 5, #12 x 1-1/4" black stainless, pyramid head screws, for extra screws orderAS1B9


• Two hinges carry doors up to 175 lbs.


• Made in the USA

Installation Tips

• Predrill with 9/64" drillbit for softwood or 5/32" drillbit for hardwood.


• Predrill for lag pintle with a 1/4" drill bit.


• Hand tighten screws only, do not use power tools to porotect the finish.
