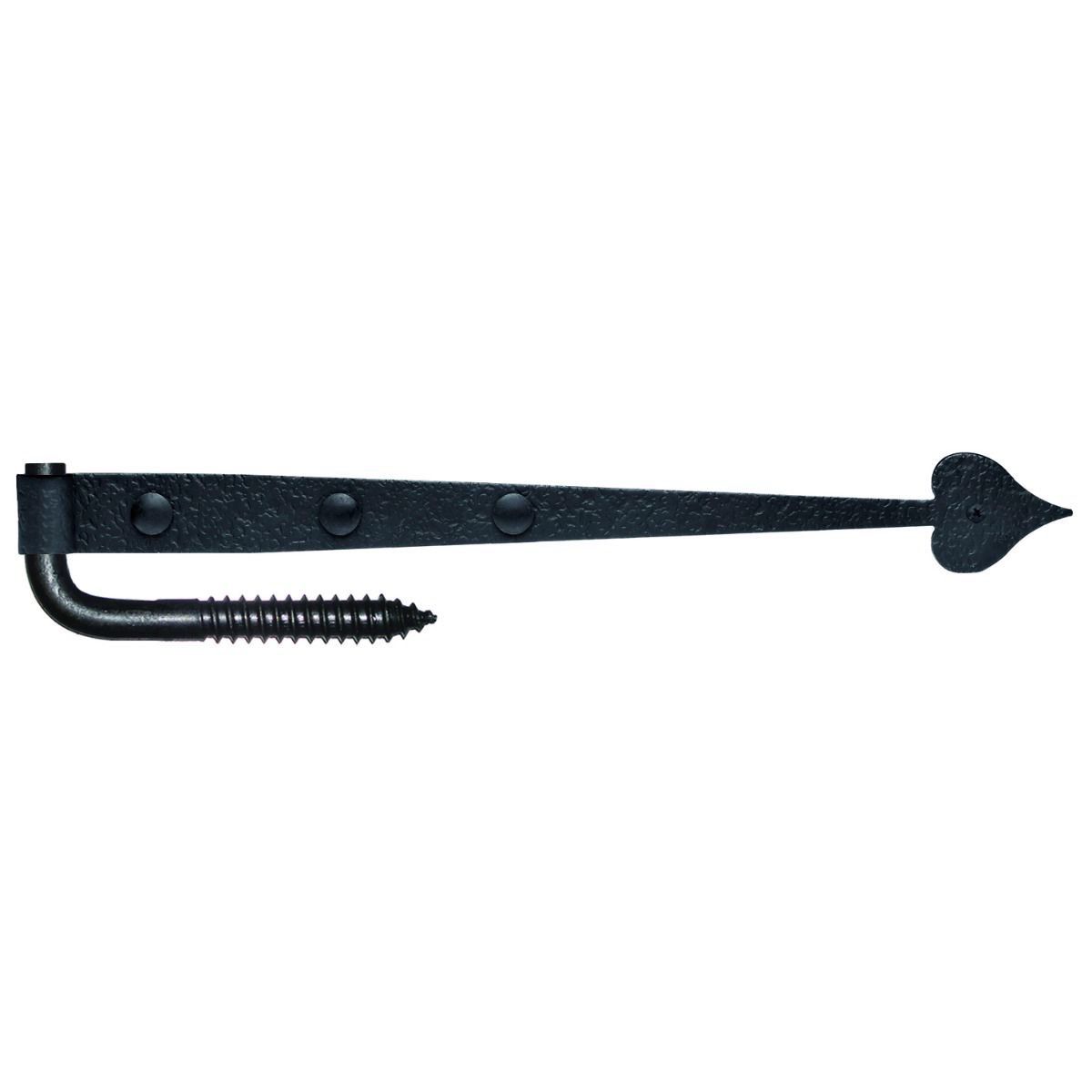

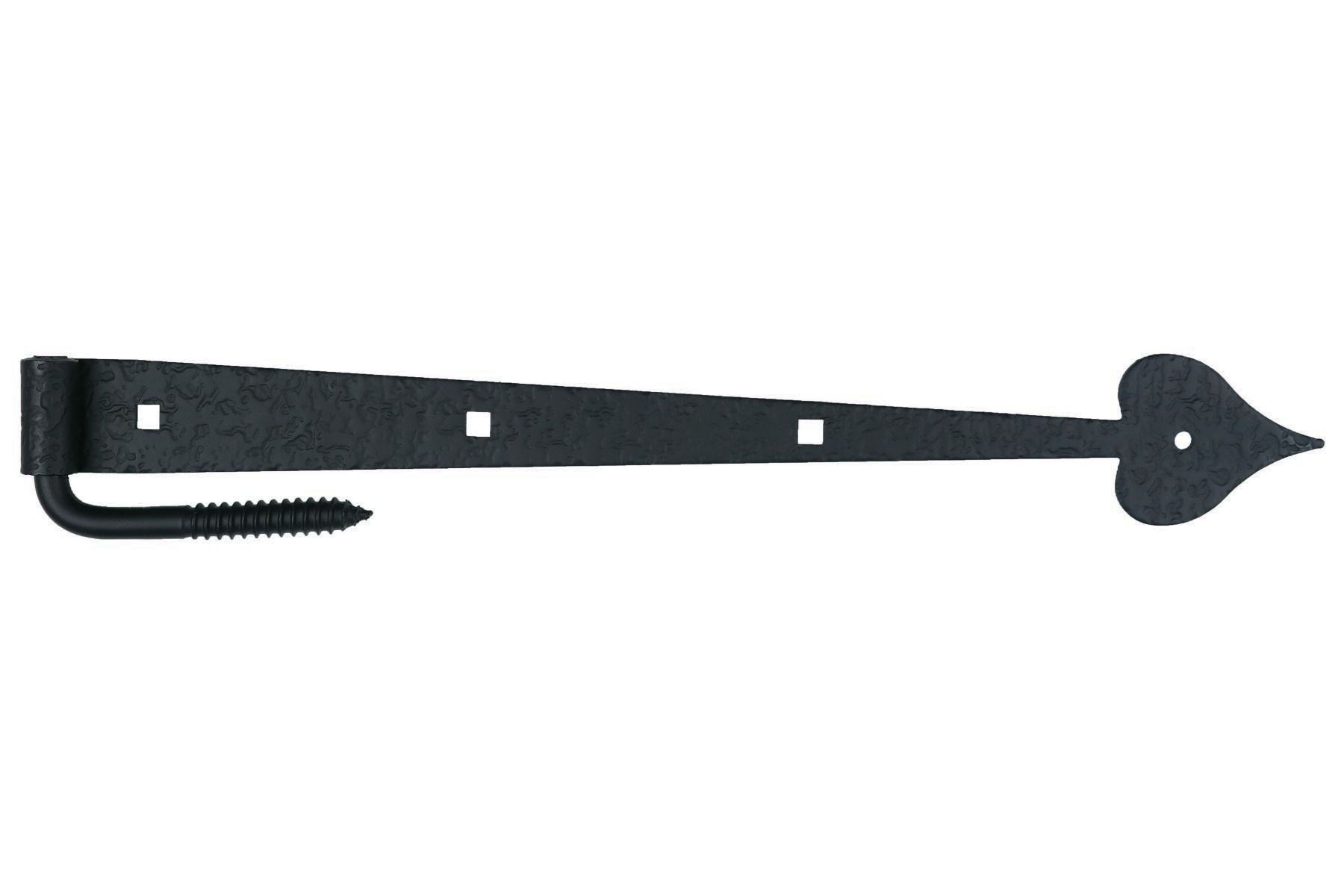

Acorn RILBP 17" Rough Heart Gate Hinge with Carriage Bolts and Pintle

Acorn RILBP 17" Rough Heart Gate Hinge with Carriage Bolts Pintle offers a robust and stylish solution for securing your gates. Crafted from durable steel and finished in a striking matte black, this hinge showcases a rough texture that enhances its rustic charm, making it ideal for traditional or contemporary designs alike. Measuring 17 inches long from the end of the curl and 1-1/2 inches wide at the barrel, the hinge widens to 2-1/4 inches at the heart end, providing both strength and aesthetics. Its thickness of 0.155 inches ensures stability, while the included pintle measures 2-1/2 inches by 4-1/2 inches with a thickness of 0.445 inches, further enhancing its reliability. Designed for versatility, this hinge can accommodate right or left swinging gates, supporting doors weighing up to 175 pounds when two hinges are used. The package includes three 3/8"-16 x 5" carriage bolts, one #12 x 1-1/4" black stainless pyramid head screw, three hex nuts, and three washers, providing everything needed for installation. Proudly made in the USA, the Acorn RILBP hinge not only delivers functionality but also adds an elegant touch to any gate setup.

17" Rough Heart Gate Hinge with Carriage Bolts Pintle

RILBP - Heart Gate Strap Hinge with Carriage Bolts, 17", Rough

• Hinges are made from steel and finished in matte black


• Rough texture


• Can be used for right or left swinging gates.


• 17" long from end of curl, 1-1/2" wide at the barrel, and 2-1/4" wide at the heart end


• Hinge is 0.155" thick.

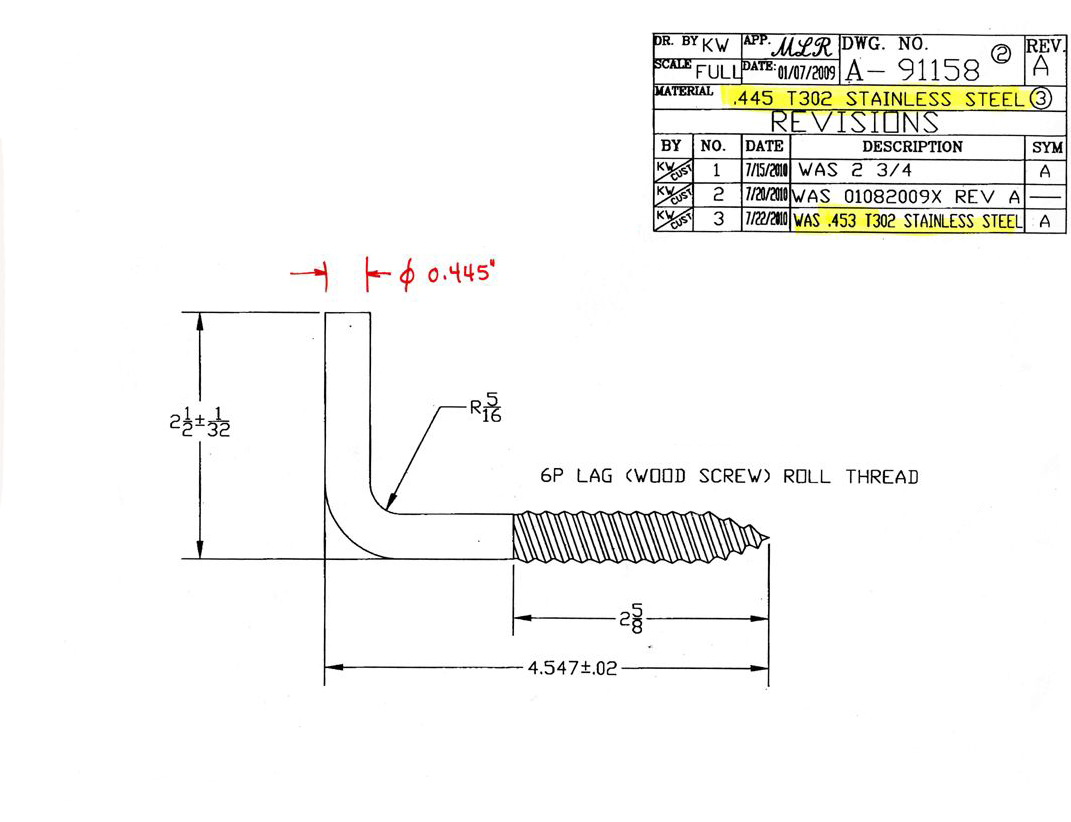

• Pintle 2-1/2" x 4-1/2" x 0.445" pintle


• Includes 3, 3/8"-16 x 5" carriage bolt, 1, #12 x 1-1/4" black stainless, pyramid head screw, 3, 3/8"-16 hex nuts, and 3, 3/8" washers


• Two hinges carry doors up to 175 lbs.


• Match with compatiable dummy hingeRIMBP


• Made in the USA

Installation Tips

• For #12 screw predrill with 9/64" drillbit for softwood or 5/32" drillbit for hardwood.


• For the carriage bolts, predrill with 3/8" drill bit.


• Predrill for lag pintle with a 1/4" drill bit.


• Hand tighten screws only, do not use power tools to porotect the finish.
