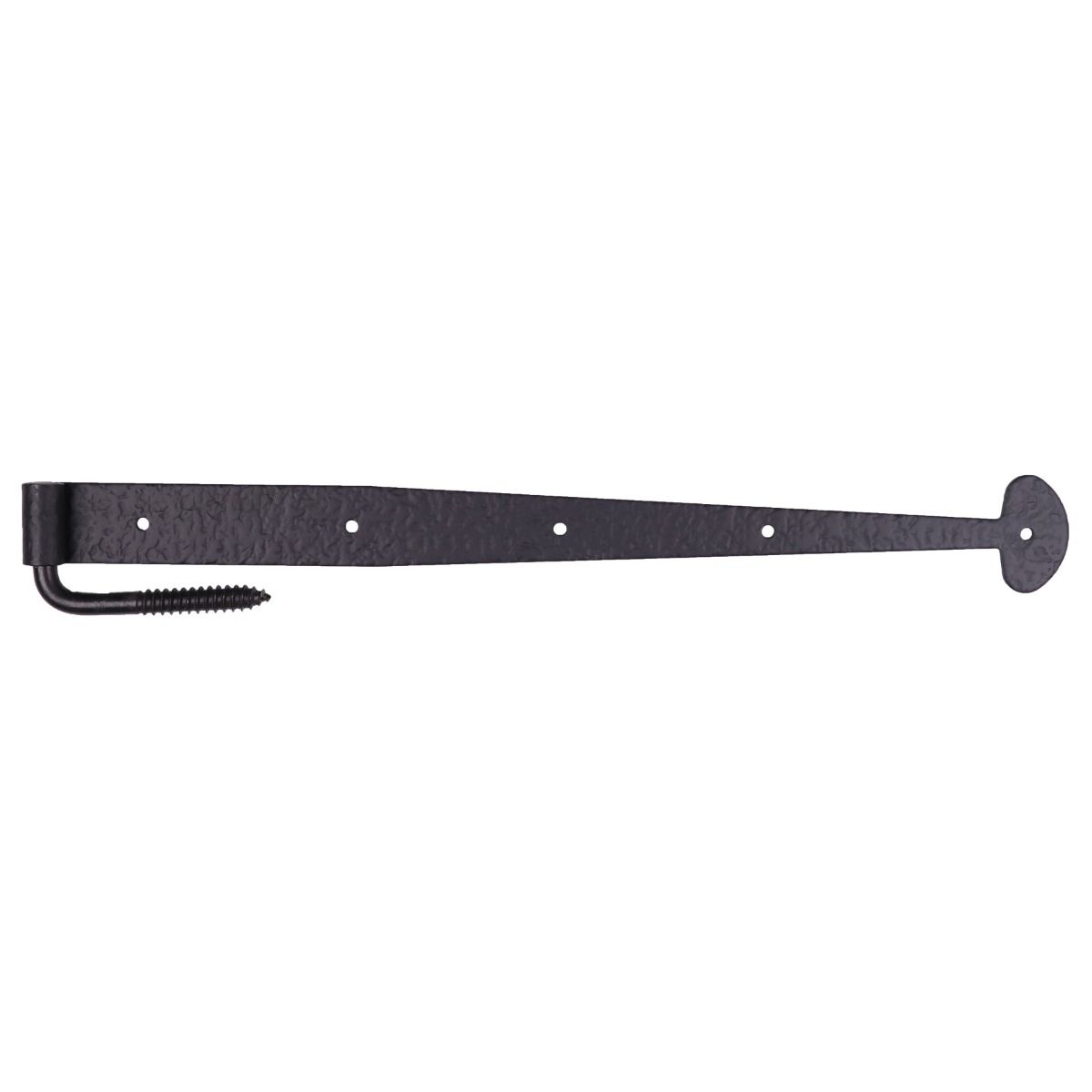

Acorn RIPBP 19-5/8" Rough Bean Gate Strap Hinge with Pintle

Acorn RIPBP 19-5/8" Rough Bean Gate Strap Hinge Pintle combines durability and style, making it an ideal choice for both functional and decorative applications. Crafted from robust steel and finished in a matte black, this hinge not only ensures longevity but also adds a rustic touch to your gates. Its rough texture enhances the aesthetic appeal, seamlessly blending with a variety of architectural styles. Measuring 19-5/8" in length from the end of the curl, with a barrel width of 1-1/2" and a bean end width of 2-1/4", this hinge is designed to support gates swinging either to the right or the left. With a thickness of 0.155", it stands up to the rigors of daily use, while two hinges can easily carry doors weighing up to 175 lbs. The included pintle measures 2-1/2" x 4-1/2" with a thickness of 0.445", ensuring a secure and stable attachment. Acorn provides five #12 x 1-1/4" black stainless pyramid head screws for easy installation. Made in the USA, the RIPBP hinge exemplifies quality craftsmanship, making it a reliable addition to your hardware collection.

19-5/8" Rough Bean Gate Strap Hinge Pintle

RIPBP - Bean Gate Strap Hinge, 19-5/8", Rough

• Hinges are made from steel and finished in matte black


• Rough texture


• Can be used for right or left swinging gates.

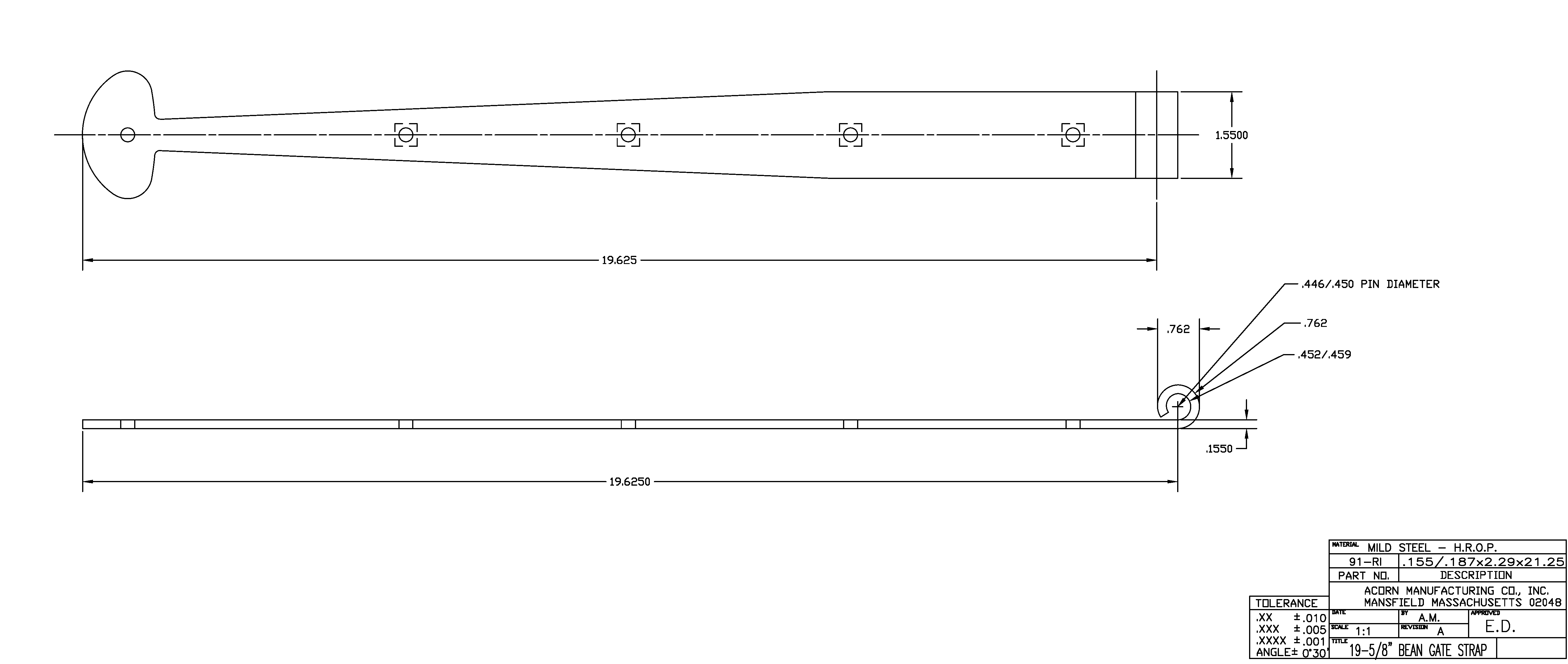

• 19-5/8" long from end of curl, 1-1/2" wide at the barrel, and 2-1/4" wide at the bean end


• Hinge is 0.155" thick.

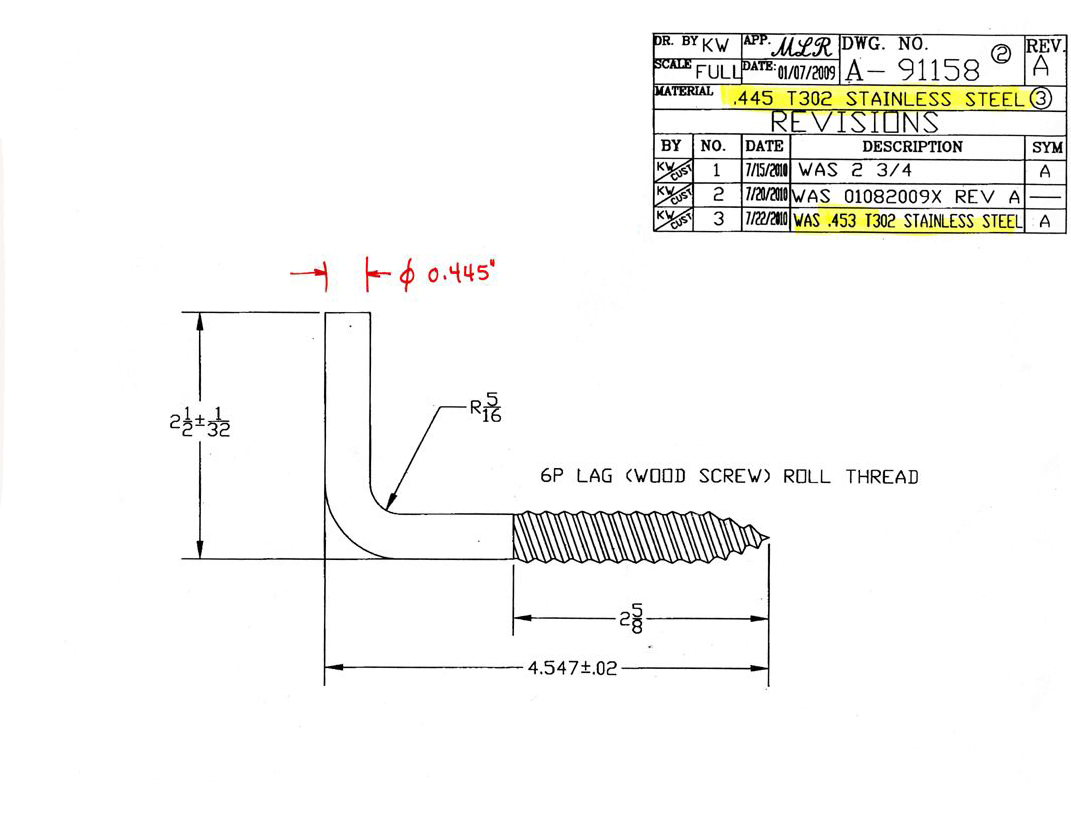

• Pintle 2-1/2" x 4-1/2" x 0.445" pintle


• Includes 5, #12 x 1-1/4" black stainless, pyramid head screws, for extra screws orderAS1B9


• Two hinges carry doors up to 175 lbs.


• Made in the USA

Installation Tips

• Predrill with 9/64" drillbit for softwood or 5/32" drillbit for hardwood.


• Predrill for lag pintle with a 1/4" drill bit.


• Hand tighten screws only, do not use power tools to porotect the finish.
