Acorn RIRBP 16" Rough Bean Gate Strap Hinge Pintle

Acorn RIRBP 16" Rough Bean Gate Strap Hinge Pintle combines strength and rustic charm, making it an ideal choice for both functional and decorative gate applications. Constructed from durable steel and finished in a sleek matte black, this hinge features a rough texture that enhances its classic appearance, perfect for traditional or contemporary settings. Measuring 16 inches long from the end of the curl, with a barrel width of 1-1/2 inches and a bean end width of 2-1/4 inches, the hinge is robust at 0.155 inches thick. Designed for versatility, it accommodates both right and left swinging gates, supporting doors weighing up to 175 lbs when paired with another hinge. The included pintle measures 2-1/2 inches by 4-1/2 inches with a thickness of 0.445 inches, ensuring a secure and stable installation. Each hinge comes with four #12 x 1-1/4 inch black stainless pyramid head screws, and additional screws can be ordered separately. Proudly made in the USA, the Acorn RIRBP hinge not only provides reliable functionality but also adds an authentic touch to your architectural hardware collection. Enhance your gates with this expertly crafted hinge that merges durability with timeless design.

16" Rough Bean Gate Strap Hinge Pintle

RIRBP - Bean Gate Strap Hinge, 16", Rough

• Hinges are made from steel and finished in matte black


• Rough texture


• Can be used for right or left swinging gates.

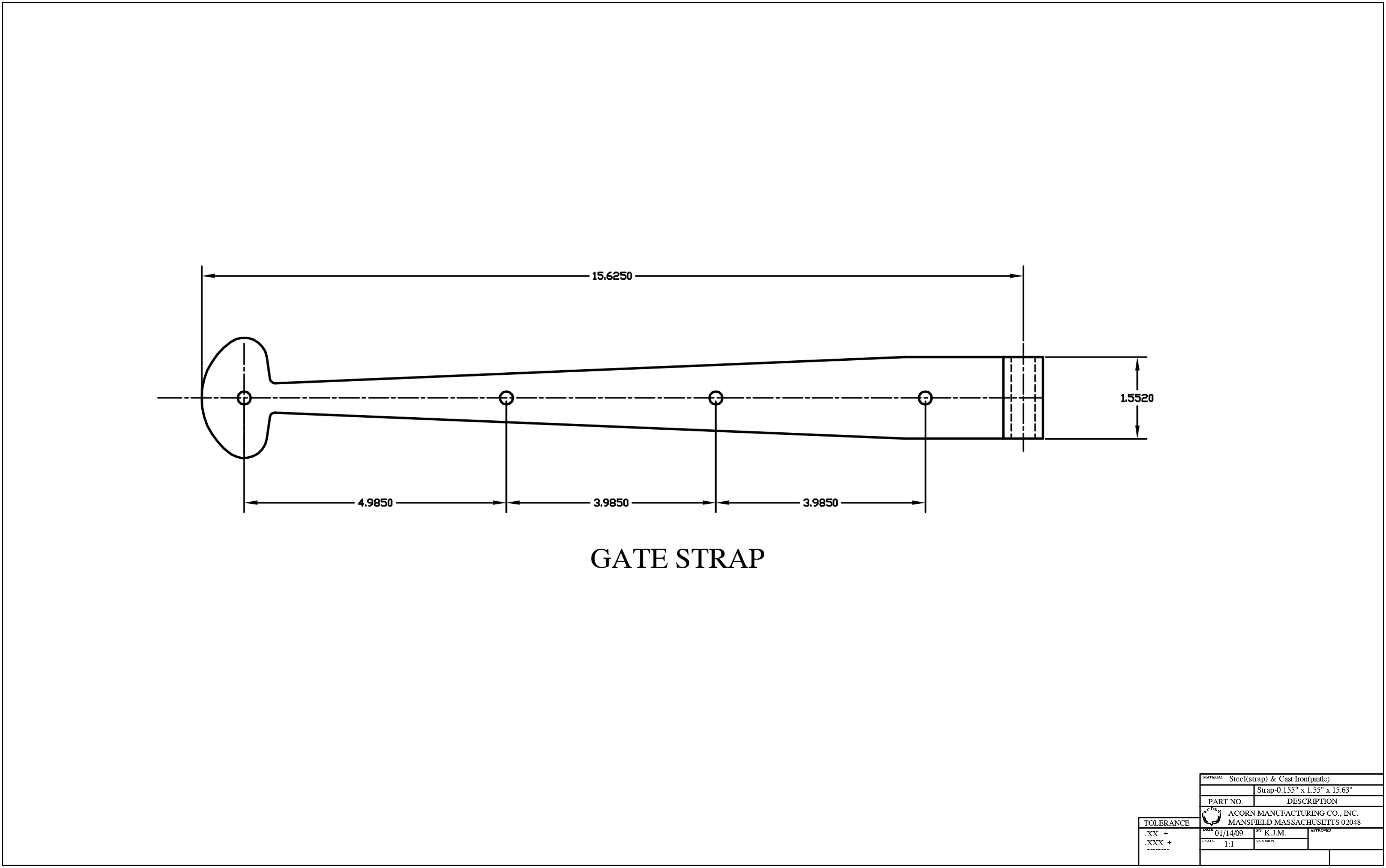

• 16" long from end of curl, 1-1/2" wide at the barrel, and 2-1/4" wide at the bean end


• Hinge is 0.155" thick.

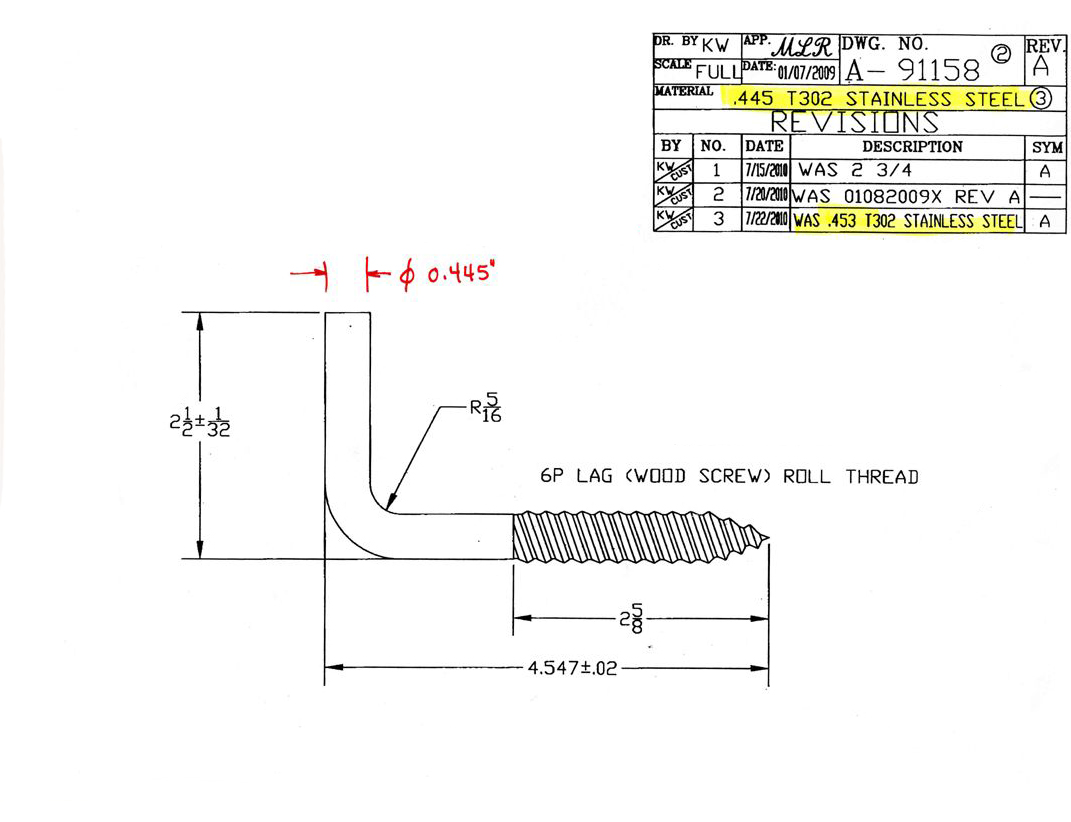

• Pintle 2-1/2" x 4-1/2" x 0.445" pintle


• Includes 4, #12 x 1-1/4" black stainless, pyramid head screws, for extra screws orderAS1B9


• Two hinges carry doors up to 175 lbs.


• Made in the USA

Installation Tips

• Predrill with 9/64" drillbit for softwood or 5/32" drillbit for hardwood.


• Predrill for lag pintle with a 1/4" drill bit.


• Hand tighten screws only, do not use power tools to porotect the finish.
