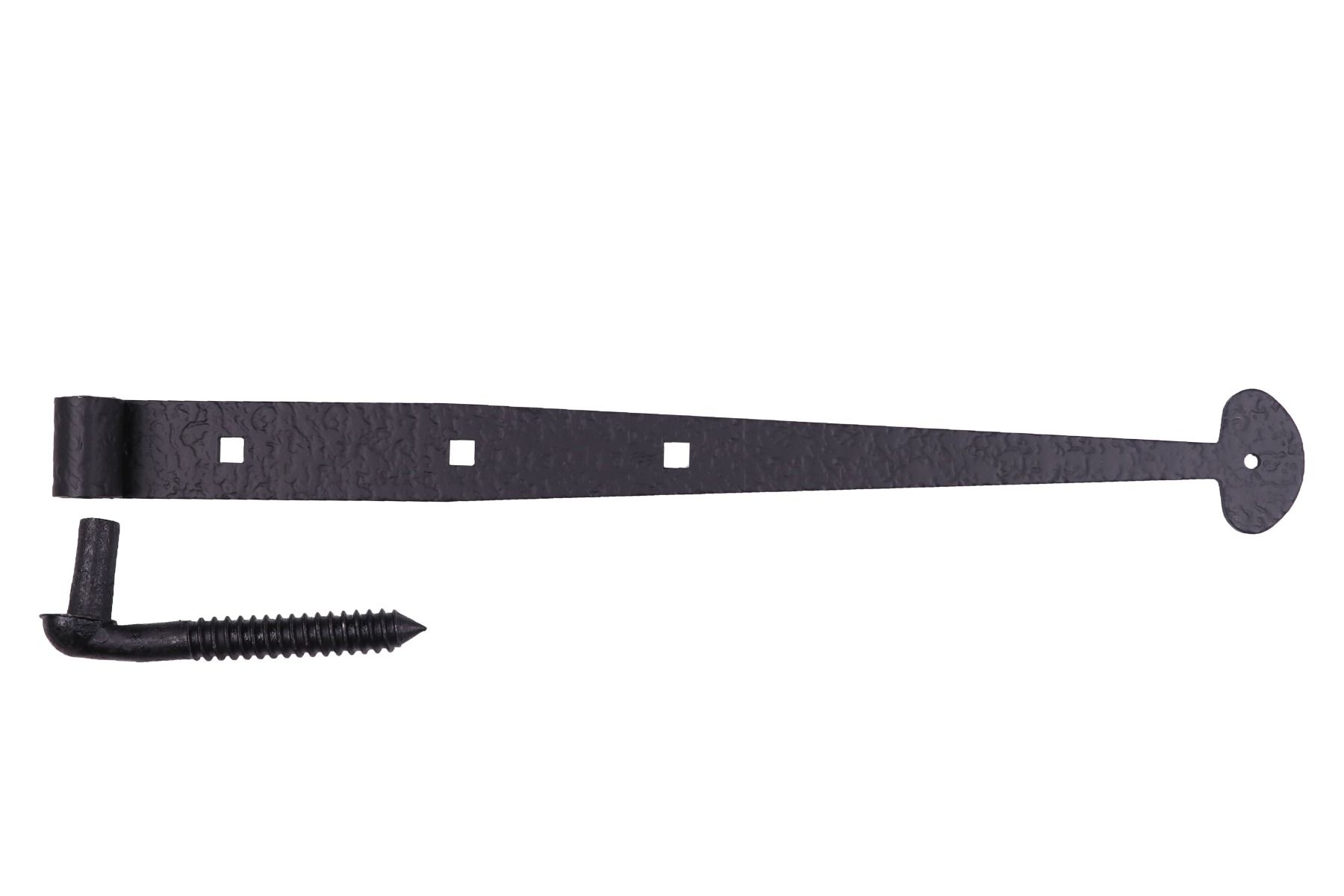

Acorn RISBP 18-7/8" Rough Bean Gate Strap Hinge with Carriage Bolts

Acorn RISBP 18-7/8" Rough Bean Gate Strap Hinge with Carriage Bolts Pintle is expertly crafted to enhance both functionality and aesthetics for your gates. Made from durable steel and finished in a striking matte black, this hinge features a rough texture that adds a rustic charm to any outdoor setting. Measuring 18-7/8" in length, it is designed for versatility, accommodating right or left swinging gates with ease. The hinge has a robust construction, with a thickness of 0.155", ensuring reliable performance for gates weighing up to 250 lbs when paired with two hinges. The dimensions include a 1-1/2" width at the barrel and a 2-1/4" width at the bean end, making it suitable for various gate styles. Included with the hinge are three 3/8"-16 x 5" carriage bolts, a #12 x 1-1/4" black stainless pyramid head screw, hex nuts, and washers for a complete installation package. For optimal results, predrilling is recommended, with specific drill bit sizes suggested for different materials. Designed and manufactured in the USA, the Acorn RISBP hinge is perfect for homeowners and building professionals seeking a reliable and stylish gate hardware solution.

18-7/8" Rough Bean Gate Strap Hinge with Carriage Bolts Pintle

RISBP - Bean Gate Strap Hinge with Carriage Bolts, 18-7/8", Rough

• Hinges are made from steel and finished in matte black


• Rough texture


• Can be used for right or left swinging gates.

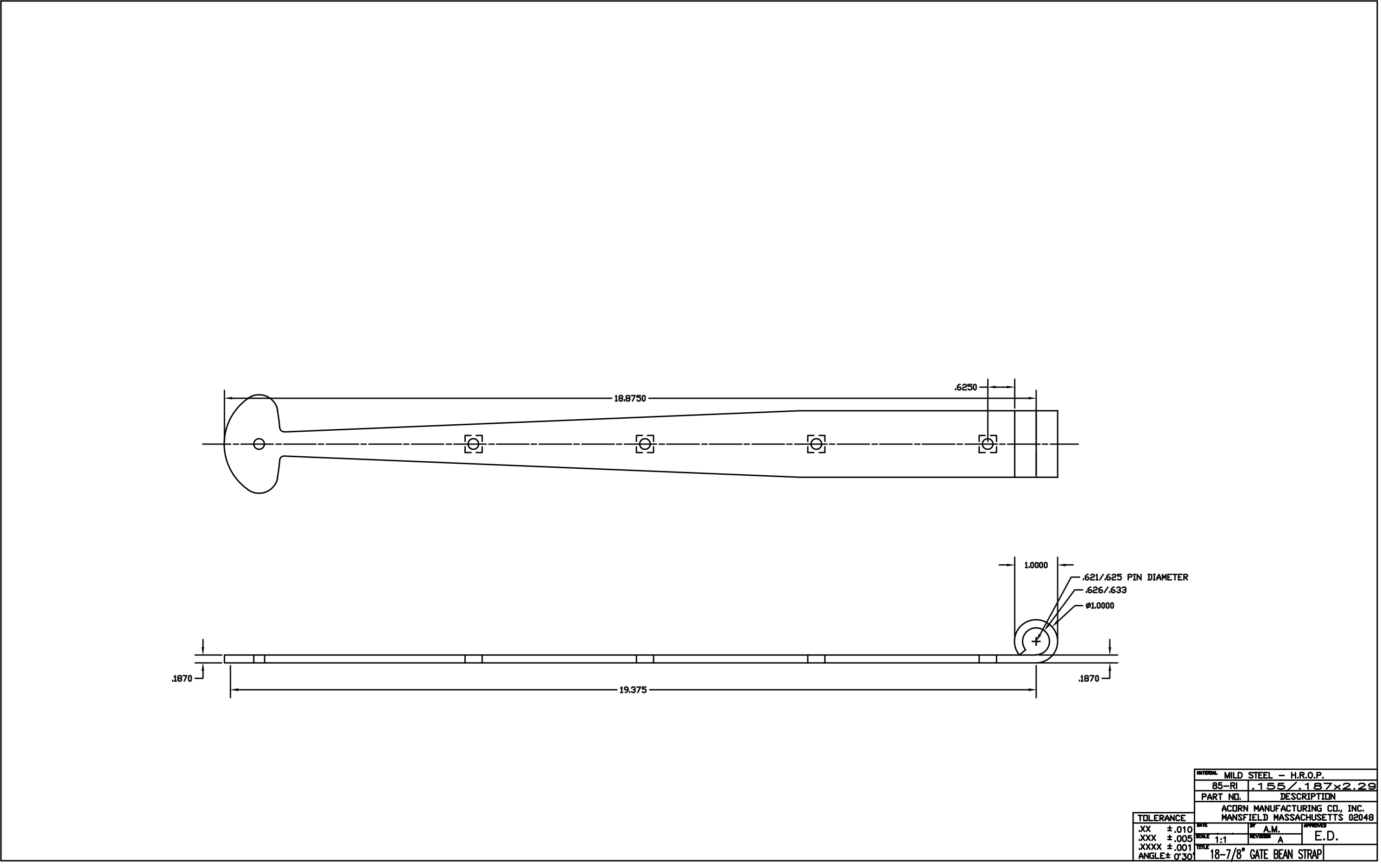

• 16" long from end of curl, 1-1/2" wide at the barrel, and 2-1/4" wide at the bean end


• Hinge is 0.155" thick.

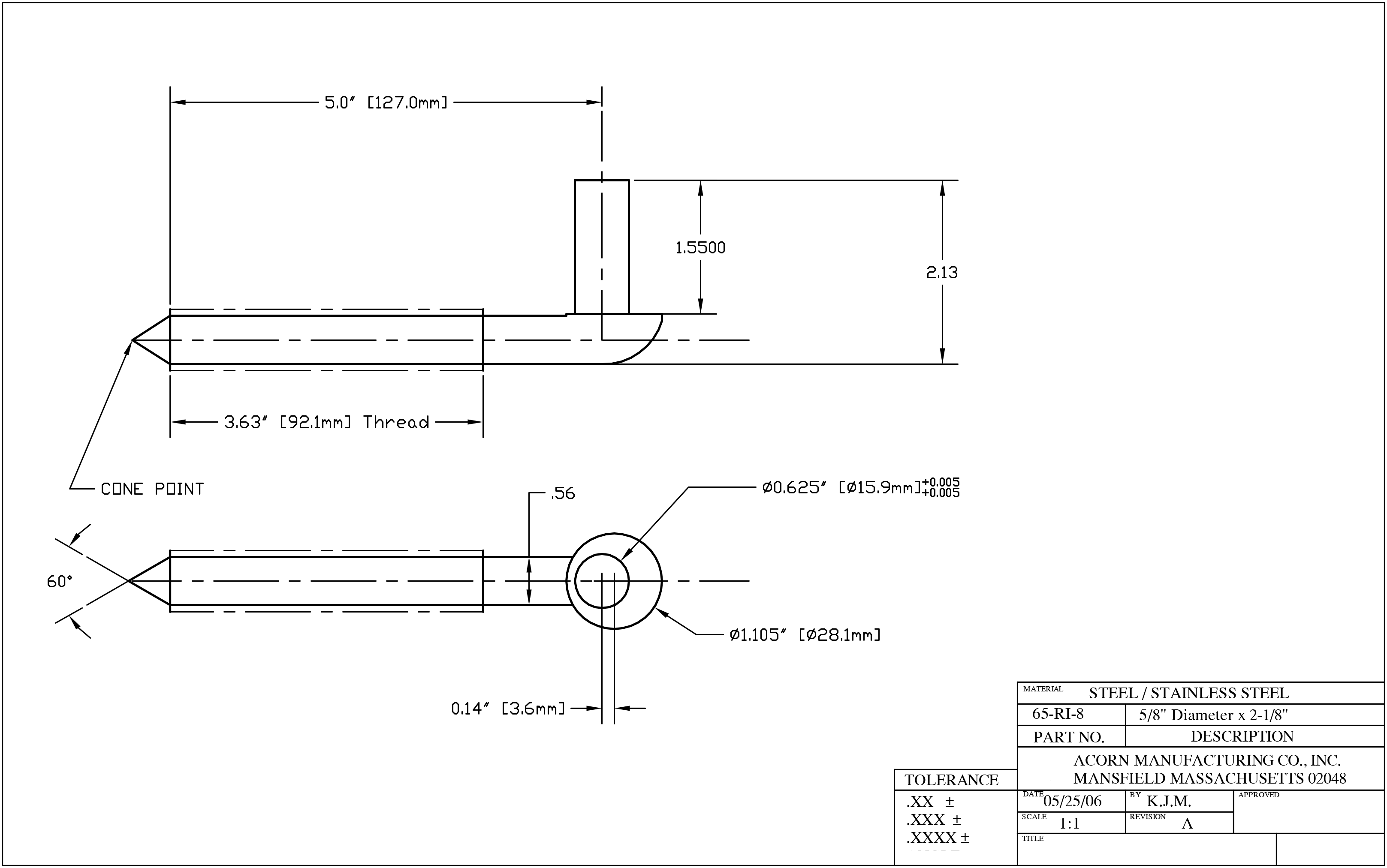

• Pintle 1-1/2" x 6" x 0.61" pintle


• Includes 3, 3/8"-16 x 5" carriage bolt, 1, #12 x 1-1/4" black stainless, pyramid head screw, 3, 3/8"-16 hex nuts, and 3, 3/8" washers


• Two hinges carry doors up to 250 lbs.


• Match with compatiable dummy hingeRIVBP


• Made in the USA

Installation Tips

• For #12 screw predrill with 9/64" drillbit for softwood or 5/32" drillbit for hardwood.


• For the carriage bolts, predrill with 3/8" drill bit.


• Predrill for lag pintle with a 3/8" drill bit.


• Hand tighten screws only, do not use power tools to porotect the finish.
