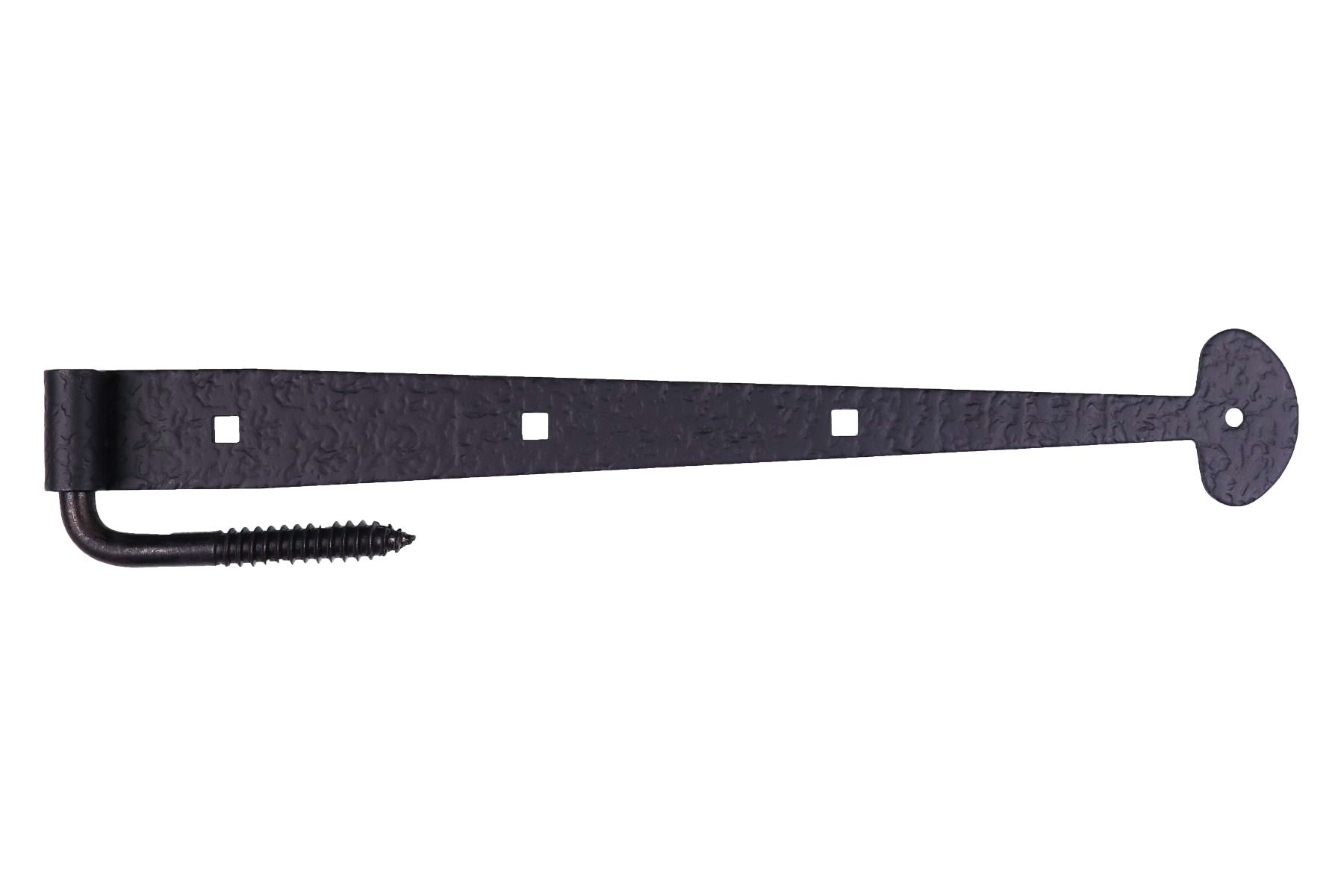

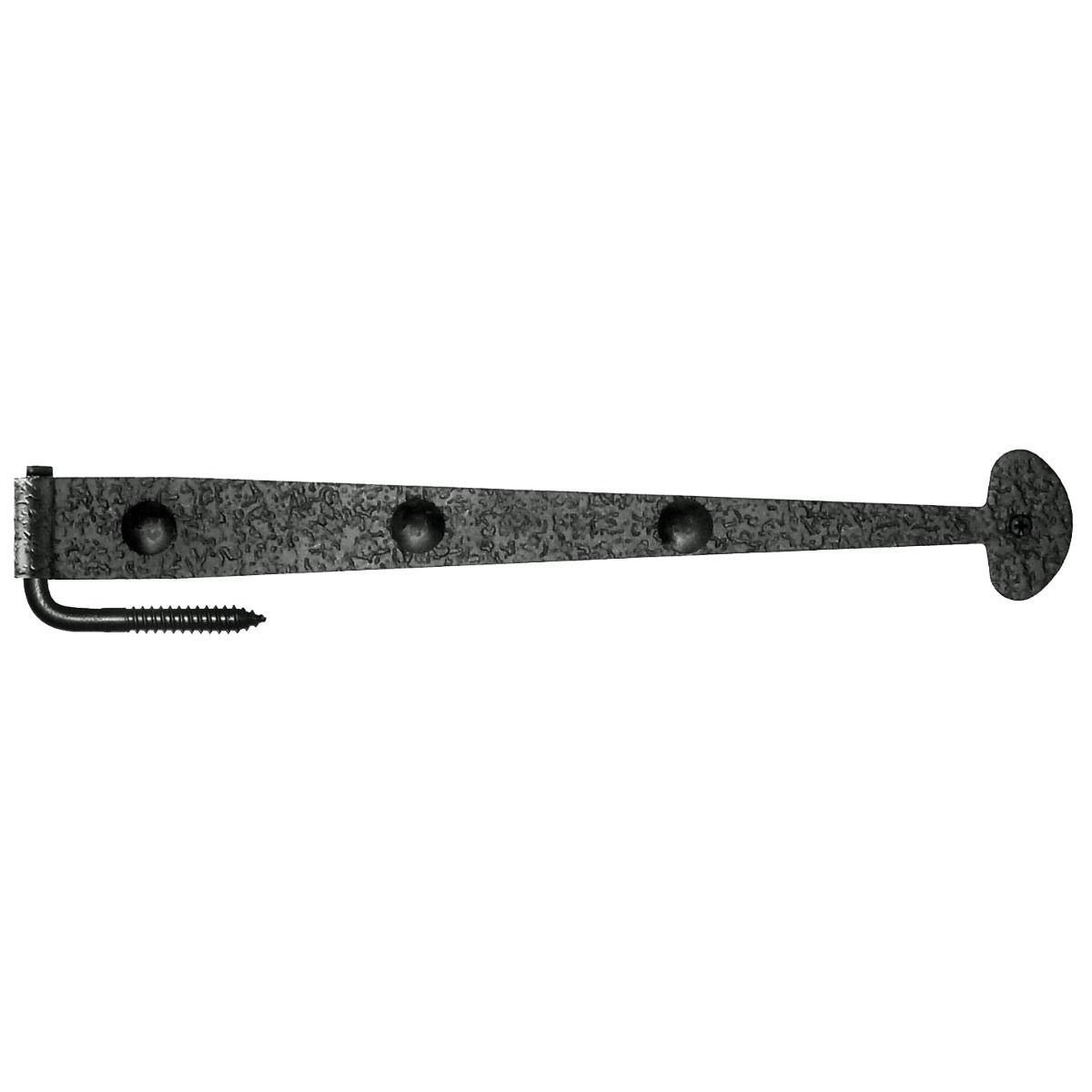

Acorn RITBP 15-5/8" Rough Bean Gate Strap Hinge with Carriage Bolts

Acorn RITBP 15-5/8" Rough Bean Gate Strap Hinge with Carriage Bolts Pintle offers a robust solution for your gate installation needs. Crafted from high-quality steel and finished in a sleek matte black, this hinge combines durability with an appealing aesthetic. Its rough texture adds a rustic charm, making it ideal for both traditional and contemporary settings. Designed for versatility, this hinge can accommodate right or left swinging gates and is 16" long from the end of the curl. With a width of 1-1/2" at the barrel and 2-1/4" at the bean end, it ensures a secure fit. The hinge's thickness of 0.155" provides strength, allowing two hinges to support doors weighing up to 175 lbs. The included pintle measures 2-1/2" x 4-1/2" x 0.445", enhancing stability. Installation is straightforward, with included components such as three 3/8"-16 x 5" carriage bolts, a #12 x 1-1/4" black stainless pyramid head screw, hex nuts, and washers. Made in the USA, the Acorn RITBP hinge exemplifies superior craftsmanship, making it a trusted choice for professionals and discerning homeowners alike. Elevate your gate's functionality and style with this exceptional hinge.

15-5/8" Rough Bean Gate Strap Hinge with Carriage Bolts Pintle

RITBP - Bean Gate Strap Hinge with Carriage Bolts, 16", Rough

• Hinges are made from steel and finished in matte black


• Rough texture


• Can be used for right or left swinging gates.


• 16" long from end of curl, 1-1/2" wide at the barrel, and 2-1/4" wide at the bean end


• Hinge is 0.155" thick.

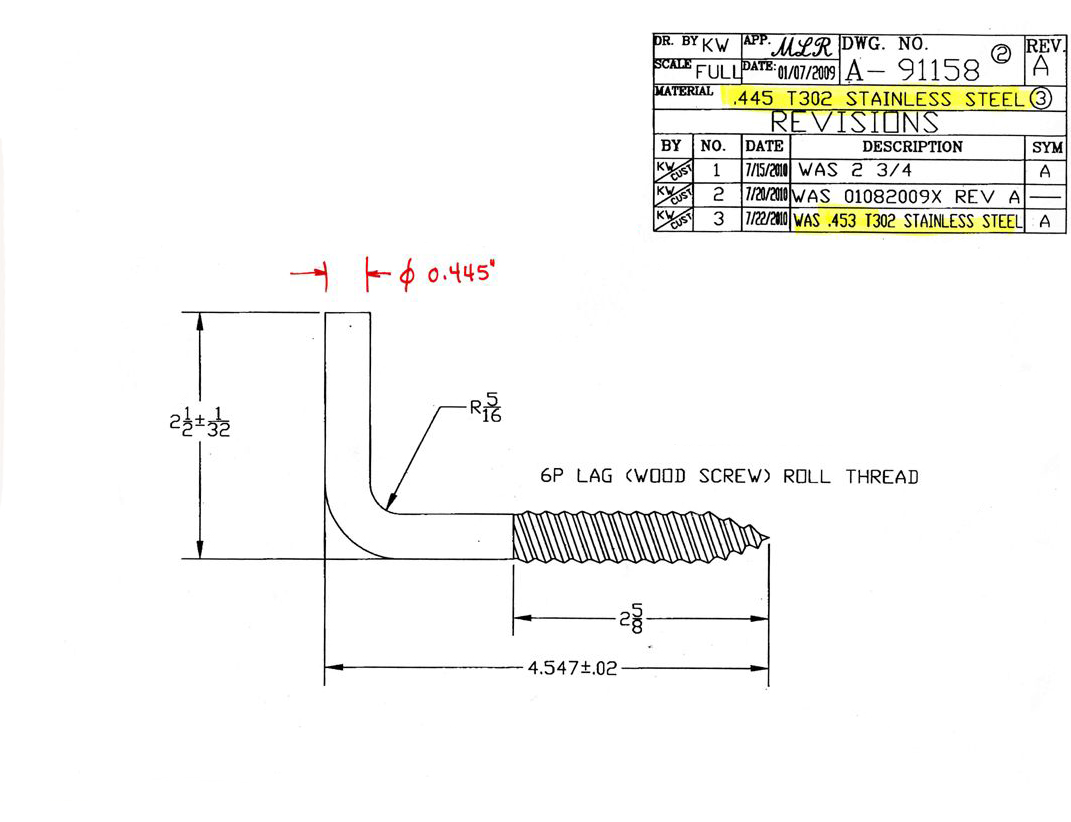

• Pintle 2-1/2" x 4-1/2" x 0.445" pintle


• Includes 3, 3/8"-16 x 5" carriage bolt, 1, #12 x 1-1/4" black stainless, pyramid head screw, 3, 3/8"-16 hex nuts, and 3, 3/8" washers


• Two hinges carry doors up to 175 lbs.


• Made in the USA

Installation Tips

• For #12 screw predrill with 9/64" drillbit for softwood or 5/32" drillbit for hardwood.


• For the carriage bolts, predrill with 3/8" drill bit.


• Predrill for lag pintle with a 1/4" drill bit.


• Hand tighten screws only, do not use power tools to porotect the finish.\
