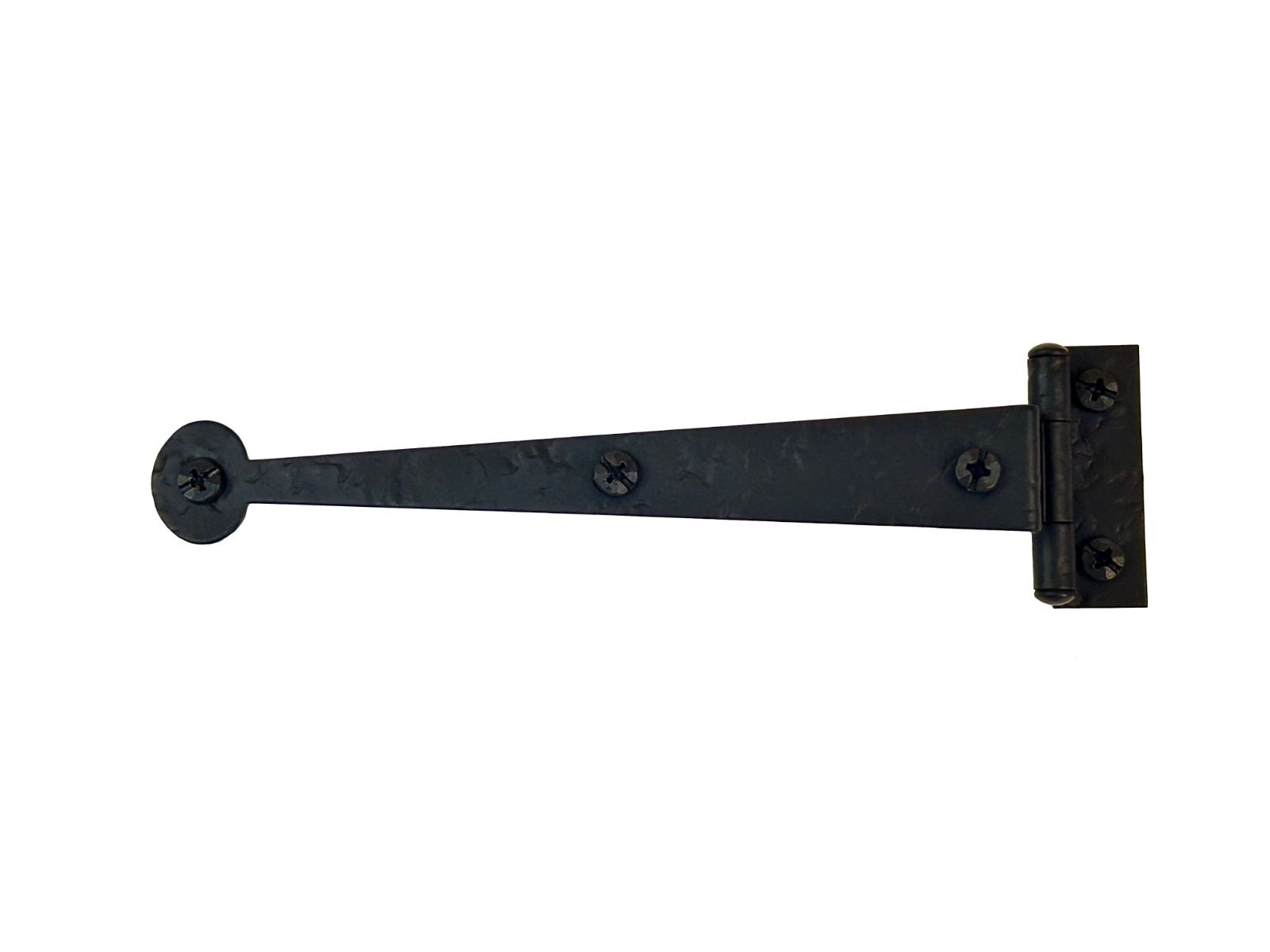

Acorn RIUBQ 6" Bean Cabinet Strap Hinge, 3/4" Offset, Pair, Rough Finish

Acorn RIUBQ 6" Bean Cabinet Strap Hinge with 3/4" Offset, Pair, Rough combines robust craftsmanship with functional design, making it an ideal choice for both building professionals and discerning homeowners. Crafted from durable steel and finished in a striking matte black, these hinges bring a touch of rustic charm to any cabinetry. The rough texture enhances their visual appeal while ensuring a sturdy grip. Designed for versatility, the RIUBQ hinges can accommodate both right and left swinging doors, fitting seamlessly into various cabinet styles. Each hinge features a 6" long strap from the center of the barrel to the end, and a hinge pad measuring 5/8" x 1-3/4", making them suitable for cabinet doors with a 3/4" offset. With a thickness of 0.062" and barrels at 0.27", these hinges are built to last, supporting up to 25 lbs with a pair. Included are 10 #7 x 5/8" pyramid head screws, ensuring easy installation. For optimal results, predrill holes with a 3/32" drill bit for softwoods or 7/64" for hardwoods, and remember to hand-tighten screws to protect the finish. Proudly made in the USA, Acorn's RIUBQ hinges deliver quality and style in every detail.

6" Bean Cabinet Strap Hinge with 3/4" Offset, Pair, Rough

RIUBQ - 6" Bean Cabinet Strap Hinge, 3/4" Offset Pair, Rough

• Hinges are made from steel and finished in matte black


• Rough texture


• Can be used for right or left swinging doors.


• Hinge is designed for cabinet doors with a 3/4" offset


• Strap portion is 6" long from center of barrel to end


• Hinge pad is 5/8" x 1-3/4"


• Hinges are 0.062" thick


• Barrells are 0.27" thick


• Includes 10, #7 x 5/8" pyramid head screws, for extra screws orderAQ2B9


• Two hinges hold 25 lbs.


• Made in the USA

Installation Tips

• Predrill with 3/32" drillbit for softwood or 7/64" drillbit for hardwood.


• Hand tighten screws only, do not use power tools to porotect the finish.
