Adams Rite 2190-301-203-32 Dual Force 2190 Interconnected Hardware

Adams Rite 2190-301-203-32 Dual Force 2190 Interconnected Lock offers a perfect blend of access control and security for aluminum stile doors. Designed with a 1-1/8" backset and an aluminum faceplate, this lock features a unique interconnected design that combines a latch and deadbolt for optimal safety and convenience. The electrified square lever trim in bright stainless steel ensures easy operation while enhancing the aesthetic of your entryway. The Dual Force 2190 allows users to retract the deadbolt and latch simultaneously from the inside, providing a panic-proof exit, while the exterior lever only retracts the latch. It includes a latch holdback feature for added flexibility, activated by a key. The solid brass latchbolt boasts a 5/8" throw, easily reversible with a screwdriver, while the stainless steel deadbolt features a robust 1" throw. This model comes with the standard 2101-01 strike, designed for flat jambs, and is compatible with various trim options and finishes, allowing for customization to suit your specific needs. Whether for commercial or residential use, the Adams Rite 2190 provides a reliable and stylish solution for securing your doors.

Dual Force 2190 Interconnected

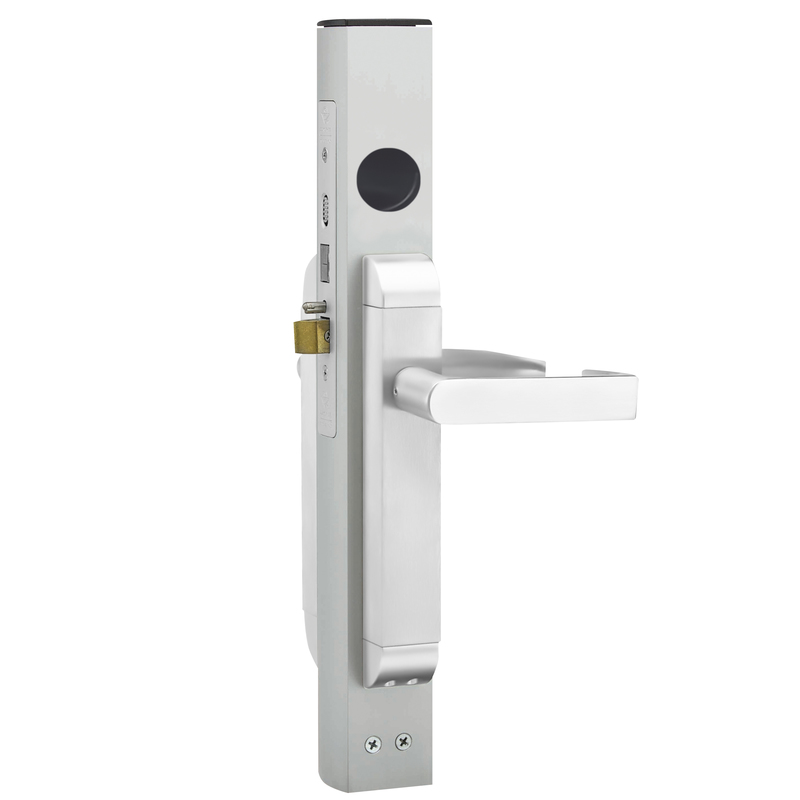

Dual Force Interconnected Lock, 1-1/8" Backset, Less Strike, Aluminum Faceplate, Electrified 03 Square Lever Trim, Bright Stainless Steel

The Dual Force 2190 Interconnected Deadbolt/Deadlatch provides access control and security for aluminum stile doors. Latch and deadbolt capabilities are combined for fast, easy, and panic-proof exiting. The Dual Force 2190 combines the access control capabilities of a latch with the security of a deadbolt. The key retracts and extends the deadbolt (and deadlatch) from either side. The exterior lever retracts the latch only, while the inside lever retracts the deadbolt and latch simultaneously for fast, easy, panic-proof exiting. Intended for out-swinging doors. Key or thumbturn retracts or extends deadbolt or deadlatch. Inside lever retracts both when configured with interconnect feature. Outside lever retracts latch only. Latch holdback feature activated or deactivated by turning key to retract latch and sliding holdback button on faceplate down to hold and up to release. 2190 will not work without its specially designed strike - included standard in package.

Interconnected Deadbolt/Deadlatch provides access control and security for aluminum stile doors.

• Cylinder Backset: 1-1/8” or 1-1/2” only.
• Latchbolt/Deadbolt: Latchbolt: 5/8” throw, solid brass. Easily reversible using only a screwdriver. Deadbolt: 1” throw, stainless steel.
• Auxiliary Deadlatch Pin: Stainless steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
• Faceplates: Measures 1” x 6-7/8”. Include FaceStyle faceplate system that adapts to flat, radius, or beveled door edge. Radius with weatherseal faceplate available separately.
• Strikes: Standard strike furnished is the 2101-01 for flat jamb where door closes flush or nearly flush. The 2101 covers MS® Deadlock strike preparation with modification, and the 4901 Deadlatch strike directly. Also available in radius version for opposite stile pairs of doors and with extended lip strikes for special jamb conditions.
• Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS section for cylinder make, thumbturn and trim ring information.
• Options: Specify trim option, lever style, finish, and strike.  Also adapts to paddle operator 4591. See 2290 for wood or steel door version for stile and rail type door construction. Note that the low profile trim (trim option 3) is recommended for in-swing door applications. Please refer to 3080 (TRIM) for full offering of designer handle sets.
