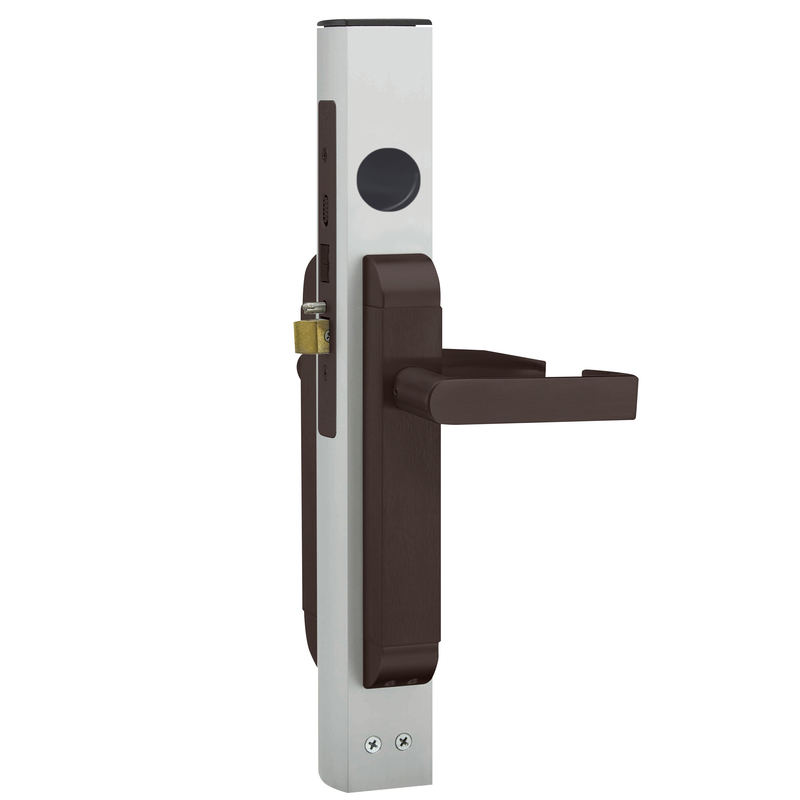

Adams Rite 2190-302-203-10B Dual Force 2190 Interconnected System

Adams Rite 2190-302-203-10B Dual Force 2190 Interconnected lock combines security and convenience for aluminum stile doors, featuring a 1-1/8" backset. This innovative lock integrates a deadbolt and deadlatch, ensuring both quick access and panic-proof exiting. The exterior lever operates the latch, while the interior lever simultaneously retracts both the latch and deadbolt, providing seamless egress. Designed specifically for out-swinging doors, this interconnected lock offers a 5/8" throw solid brass latchbolt and a robust 1" throw stainless steel deadbolt. It includes an auxiliary deadlatch pin, effectively preventing unauthorized entry. The 2190 model is equipped with a dark bronze faceplate and is operable with any standard mortise cylinder featuring an MS® cam, allowing for easy compatibility. Installation is straightforward, utilizing the included specially designed strike, which is essential for the lock's function. The versatile FaceStyle faceplate system accommodates various door edge profiles, enhancing its adaptability. With customizable trim options and lever styles, the Adams Rite 2190-302-203-10B is an excellent choice for commercial applications, ensuring both durability and reliability in high-traffic environments. Experience peace of mind with this expertly designed access control solution.

Dual Force 2190 Interconnected

Dual Force Interconnected Lock, 1-1/8" Backset, Less Strike, Dark Bronze Faceplate, Electrified 03 Square Lever Trim, Oil Rubbed Bronze

The Dual Force 2190 Interconnected Deadbolt/Deadlatch provides access control and security for aluminum stile doors. Latch and deadbolt capabilities are combined for fast, easy, and panic-proof exiting. The Dual Force 2190 combines the access control capabilities of a latch with the security of a deadbolt. The key retracts and extends the deadbolt (and deadlatch) from either side. The exterior lever retracts the latch only, while the inside lever retracts the deadbolt and latch simultaneously for fast, easy, panic-proof exiting. Intended for out-swinging doors. Key or thumbturn retracts or extends deadbolt or deadlatch. Inside lever retracts both when configured with interconnect feature. Outside lever retracts latch only. Latch holdback feature activated or deactivated by turning key to retract latch and sliding holdback button on faceplate down to hold and up to release. 2190 will not work without its specially designed strike - included standard in package.

Interconnected Deadbolt/Deadlatch provides access control and security for aluminum stile doors.

• Cylinder Backset: 1-1/8” or 1-1/2” only.
• Latchbolt/Deadbolt: Latchbolt: 5/8” throw, solid brass. Easily reversible using only a screwdriver. Deadbolt: 1” throw, stainless steel.
• Auxiliary Deadlatch Pin: Stainless steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
• Faceplates: Measures 1” x 6-7/8”. Include FaceStyle faceplate system that adapts to flat, radius, or beveled door edge. Radius with weatherseal faceplate available separately.
• Strikes: Standard strike furnished is the 2101-01 for flat jamb where door closes flush or nearly flush. The 2101 covers MS® Deadlock strike preparation with modification, and the 4901 Deadlatch strike directly. Also available in radius version for opposite stile pairs of doors and with extended lip strikes for special jamb conditions.
• Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS section for cylinder make, thumbturn and trim ring information.
• Options: Specify trim option, lever style, finish, and strike.  Also adapts to paddle operator 4591. See 2290 for wood or steel door version for stile and rail type door construction. Note that the low profile trim (trim option 3) is recommended for in-swing door applications. Please refer to 3080 (TRIM) for full offering of designer handle sets.
