Adams Rite 2190-311-301-10B Dual Force 2190 Interconnected Hardware

Adams Rite 2190-311-301-10B Dual Force 2190 Interconnected Lock offers a powerful combination of security and convenience for aluminum stile doors. This innovative lock integrates both a deadbolt and deadlatch, allowing for quick and panic-proof exits. With a backset of 1-1/8 inches, the lock features a flat strike and an aluminum faceplate in a stylish oil-rubbed bronze finish, ensuring durability and appeal. The Dual Force's design provides exceptional access control, allowing the exterior lever to retract only the latch while the interior lever retracts both the deadbolt and latch simultaneously. This feature is particularly beneficial for out-swinging doors, enhancing safety without compromising ease of use. The latch holdback feature is also user-friendly, activated by simply turning the key and sliding the holdback button. Constructed with a solid brass latchbolt and stainless steel deadbolt, the lock ensures reliable performance. It includes a specially designed strike for optimal functionality and adapts to various door edge styles with its FaceStyle faceplate system. Ideal for commercial installations, the Adams Rite 2190-311-301-10B delivers both security and ease of access, making it a top choice for building professionals and savvy homeowners alike.

Dual Force 2190 Interconnected

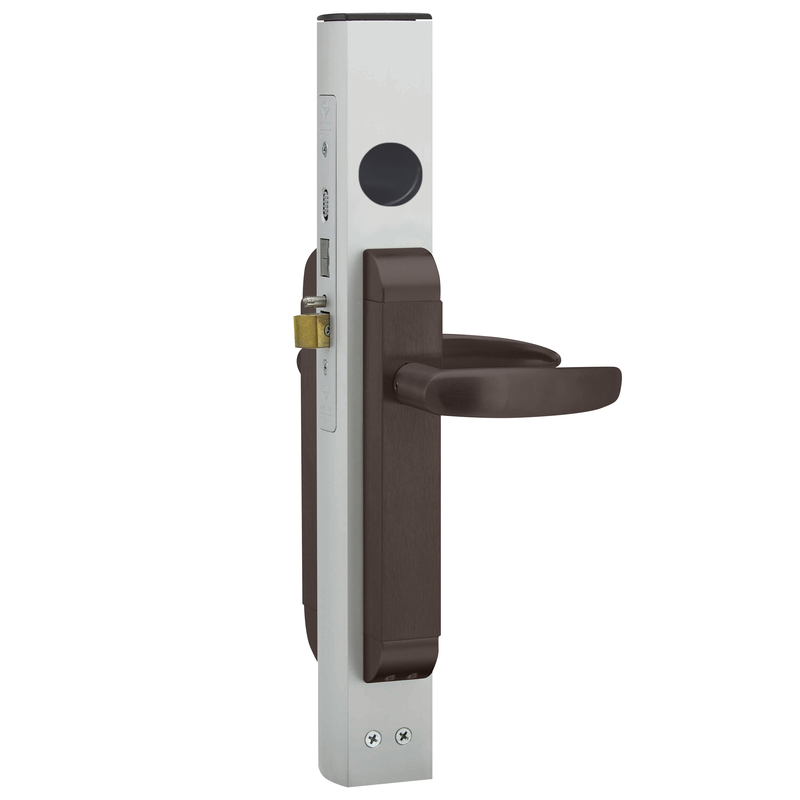

Dual Force Interconnected Lock, 1-1/8" Backset, Flat Strike, Aluminum Faceplate, Low Profile 01 Curve Lever Trim, Oil Rubbed Bronze

The Dual Force 2190 Interconnected Deadbolt/Deadlatch provides access control and security for aluminum stile doors. Latch and deadbolt capabilities are combined for fast, easy, and panic-proof exiting. The Dual Force 2190 combines the access control capabilities of a latch with the security of a deadbolt. The key retracts and extends the deadbolt (and deadlatch) from either side. The exterior lever retracts the latch only, while the inside lever retracts the deadbolt and latch simultaneously for fast, easy, panic-proof exiting. Intended for out-swinging doors. Key or thumbturn retracts or extends deadbolt or deadlatch. Inside lever retracts both when configured with interconnect feature. Outside lever retracts latch only. Latch holdback feature activated or deactivated by turning key to retract latch and sliding holdback button on faceplate down to hold and up to release. 2190 will not work without its specially designed strike - included standard in package.

Interconnected Deadbolt/Deadlatch provides access control and security for aluminum stile doors.

• Cylinder Backset: 1-1/8” or 1-1/2” only.
• Latchbolt/Deadbolt: Latchbolt: 5/8” throw, solid brass. Easily reversible using only a screwdriver. Deadbolt: 1” throw, stainless steel.
• Auxiliary Deadlatch Pin: Stainless steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
• Faceplates: Measures 1” x 6-7/8”. Include FaceStyle faceplate system that adapts to flat, radius, or beveled door edge. Radius with weatherseal faceplate available separately.
• Strikes: Standard strike furnished is the 2101-01 for flat jamb where door closes flush or nearly flush. The 2101 covers MS® Deadlock strike preparation with modification, and the 4901 Deadlatch strike directly. Also available in radius version for opposite stile pairs of doors and with extended lip strikes for special jamb conditions.
• Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS section for cylinder make, thumbturn and trim ring information.
• Options: Specify trim option, lever style, finish, and strike.  Also adapts to paddle operator 4591. See 2290 for wood or steel door version for stile and rail type door construction. Note that the low profile trim (trim option 3) is recommended for in-swing door applications. Please refer to 3080 (TRIM) for full offering of designer handle sets.
