Adams Rite 2190-313-103-32D Dual Force 2190 Interconnected System

Adams Rite 2190-313-103-32D Dual Force 2190 Interconnected Lock offers a robust solution for access control and security in aluminum stile doors. This dual-function lock seamlessly combines a latch and deadbolt system, enabling quick and panic-proof exits. With a cylinder backset of 1-1/8" and a 1" throw deadbolt crafted from durable stainless steel, this lock ensures reliable performance. The innovative design features a flat strike and a sleek black faceplate, complemented by a square lever trim in satin stainless steel. The exterior lever retracts the latch only, while the interior lever efficiently retracts both the latch and deadbolt simultaneously, enhancing safety during emergencies. The lock is engineered for out-swinging doors, with a key or thumbturn mechanism to extend or retract the deadbolt or deadlatch. Unique to the 2190 model is its auxiliary deadlatch pin, which prevents unauthorized entry methods, providing peace of mind. The faceplate measures 1" x 6-7/8" and is compatible with various door edge styles. Additionally, the lock is designed for easy installation and is available in customizable options, including various lever styles and finishes. Secure your premises with the Adams Rite 2190 Dual Force Interconnected Lock, where safety meets convenience.

Dual Force 2190 Interconnected

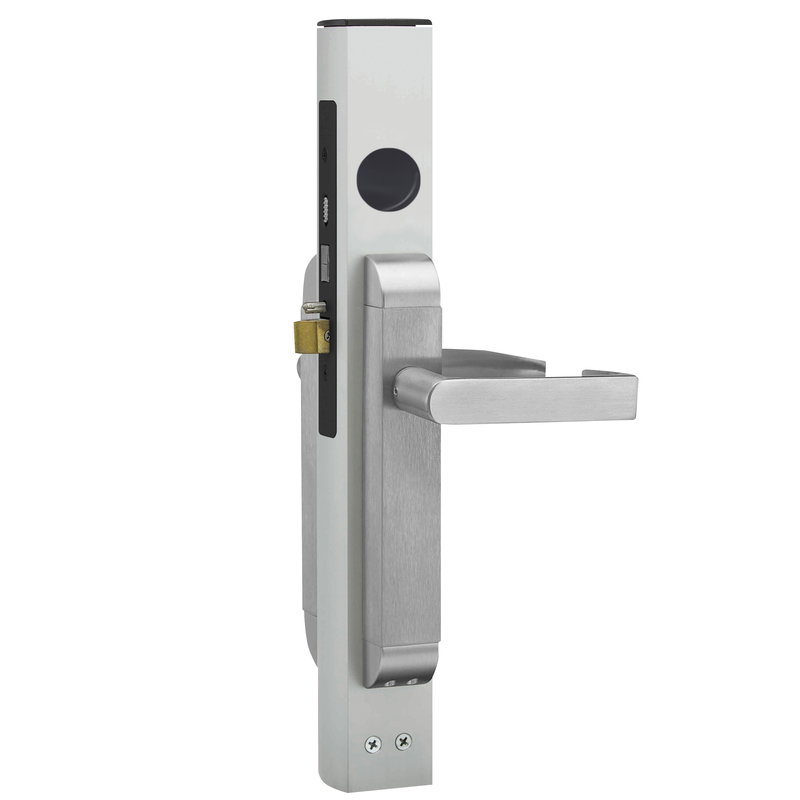

Dual Force Interconnected Lock, 1-1/8" Backset, Flat Strike, Black Faceplate, 03 Square Lever Trim, Satin Stainless Steel

The Dual Force 2190 Interconnected Deadbolt/Deadlatch provides access control and security for aluminum stile doors. Latch and deadbolt capabilities are combined for fast, easy, and panic-proof exiting. The Dual Force 2190 combines the access control capabilities of a latch with the security of a deadbolt. The key retracts and extends the deadbolt (and deadlatch) from either side. The exterior lever retracts the latch only, while the inside lever retracts the deadbolt and latch simultaneously for fast, easy, panic-proof exiting. Intended for out-swinging doors. Key or thumbturn retracts or extends deadbolt or deadlatch. Inside lever retracts both when configured with interconnect feature. Outside lever retracts latch only. Latch holdback feature activated or deactivated by turning key to retract latch and sliding holdback button on faceplate down to hold and up to release. 2190 will not work without its specially designed strike - included standard in package.

Interconnected Deadbolt/Deadlatch provides access control and security for aluminum stile doors.

• Cylinder Backset: 1-1/8” or 1-1/2” only.
• Latchbolt/Deadbolt: Latchbolt: 5/8” throw, solid brass. Easily reversible using only a screwdriver. Deadbolt: 1” throw, stainless steel.
• Auxiliary Deadlatch Pin: Stainless steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
• Faceplates: Measures 1” x 6-7/8”. Include FaceStyle faceplate system that adapts to flat, radius, or beveled door edge. Radius with weatherseal faceplate available separately.
• Strikes: Standard strike furnished is the 2101-01 for flat jamb where door closes flush or nearly flush. The 2101 covers MS® Deadlock strike preparation with modification, and the 4901 Deadlatch strike directly. Also available in radius version for opposite stile pairs of doors and with extended lip strikes for special jamb conditions.
• Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS section for cylinder make, thumbturn and trim ring information.
• Options: Specify trim option, lever style, finish, and strike.  Also adapts to paddle operator 4591. See 2290 for wood or steel door version for stile and rail type door construction. Note that the low profile trim (trim option 3) is recommended for in-swing door applications. Please refer to 3080 (TRIM) for full offering of designer handle sets.
